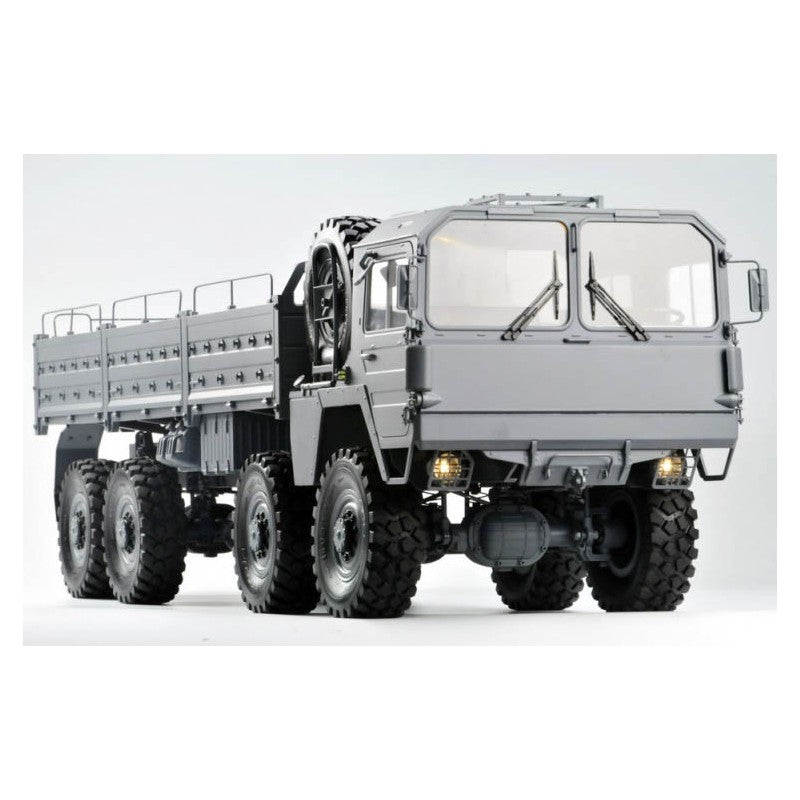

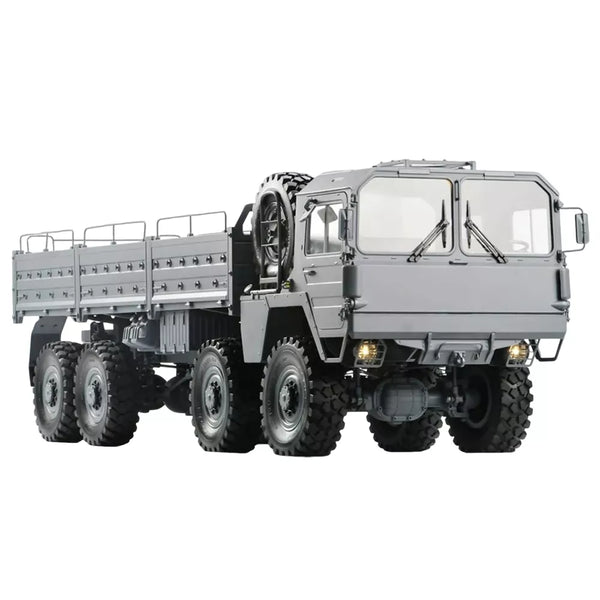

CROSSRC MC8C 1/12 Scale 8x8 8WD RC Military Transport Crawler Off-Road KIT/RTR

CROSSRC MC8C 8x8 1/12 RC Car Scale Military Transport Climbing Car Off-road Model 8WD Toy KIT/RTR

Brand and model: CROSSRC MC8C
Type: Remote control electric model climbing car 1:12
Appearance: MAN hard shell military truck style, 8x8 off-road design
Material: The shell and other parts are made of specific materials (the specific material may vary depending on the version or customization)
Control method: remote control operation
Applicable age: 14 Years old and above

The upgraded accessories for the Flagship Version(MC8C) are as follows:
1. Metal beam.
2.4 metal axles/steel umbrella teeth.
3.4 metal intermediate drive shafts.
4.8 independent metal shock absorbers/top seats of metal shock absorbers.
5. Metal casing, steel gear dual speed transfer case.
6. Linkage light group/LED bulb.
7. Cockpit lighting.
8. High quality 2.5-inch full frequency speaker dedicated to the sound group. (The specially customized high-quality 2.5-inch full frequency loudspeaker used to upgrade the sound group, mixed wool basin body, foam edge, large magnet, thick and powerful low-frequency, flat mid-frequency, fine high-frequency, high sensitivity, power of 3W, impedance of 4 ohms. It can match most sound groups to provide realistic engine sound.)
9. The front of the car can be opened, the top door can be opened, the interior of the cab, steering wheel, accelerator pedal.

Features of CROSSRC MC8C remote control electric model climbing car:
1. High simulation: CROSSRC MC8C highly restores the style of real military trucks in appearance design, with tough lines and domineering appearance.
2. Powerful off-road performance: The 8x8 driving mode gives this car excellent off-road capabilities and can easily cope with various complex terrains.
3. Customizability: As a KIT loose parts model car, CROSSRC MC8C provides a high customization space, and users can assemble, paint and modify according to their preferences and needs.
4. Rich accessories and functions: It may be equipped with advanced accessories such as Watt link differential lock, high and low speed switching function, etc., to improve the vehicle's handling performance and climbing ability.

What are the advantages of CROSSRC MC8C remote control electric model climbing car?
1. Quality assurance: As a professional model brand, CROSSRC has a certain guarantee on the quality of its products.
2. Diverse ways of playing: It can not only be operated as a remote control car, but also displayed and appreciated as a static model.
3. Collection value: For model enthusiasts and military fans, CROSSRC MC8C has a certain collection value.
4. Educational significance: The assembly process can exercise hands-on ability, while understanding the structure and principle of military vehicles, which has a certain educational significance.

CROSSRC MC8 Assembly Instructions：
1. Always perform painting and gluing of body parts in a well-ventilated area and wear a protective mask.
2. Pay attention to adhesive selection during assembly: Use ABS-specific cement for the ABS body shell. For acrylic windows and light lenses, use a low-corrosion clear adhesive or model-specific cement.
3. Before gluing ABS plastic parts, clean the bonding surfaces thoroughly. Ensure no paint is present on the surfaces. Apply ABS cement to both parts and hold them under pressure for 10 seconds to ensure a strong bond.
4. Conduct a dry-fit assembly of body parts before gluing or painting to determine the correct sequence of operations.
5. Refer to page 63 of the manual for the electronic wiring diagram. Perform power system testing only when the wheels are off the ground.
6. This is a high-precision model kit requiring technical experience and over 60 hours of assembly time. Please read this manual thoroughly before starting and follow the instructions precisely.
7. Threadlocker is required during assembly. Important: Prevent any contact between threadlocker and the body shell parts. Threadlocker can cause a chemical reaction with ABS material, leading to brittleness and cracking.
8. It is recommended to use tools designed for model building. Always observe proper tool safety during assembly.

Packaging size: 85*33*23 CM
Package weight: 11 KG
Battery Compartment Dimensions: 154*56*35 mm

Please Note: Both the KIT and RTR versions are supplied as unpainted, unassembled kits. Painting and assembly are required. The finished models shown on the product page have been painted and assembled by other modelers. These versions are most suitable for experienced or professional modelers.

* KIT Version: Includes 1 original motor; Does not include servos, ESC, transmitter, battery and charger are optional.

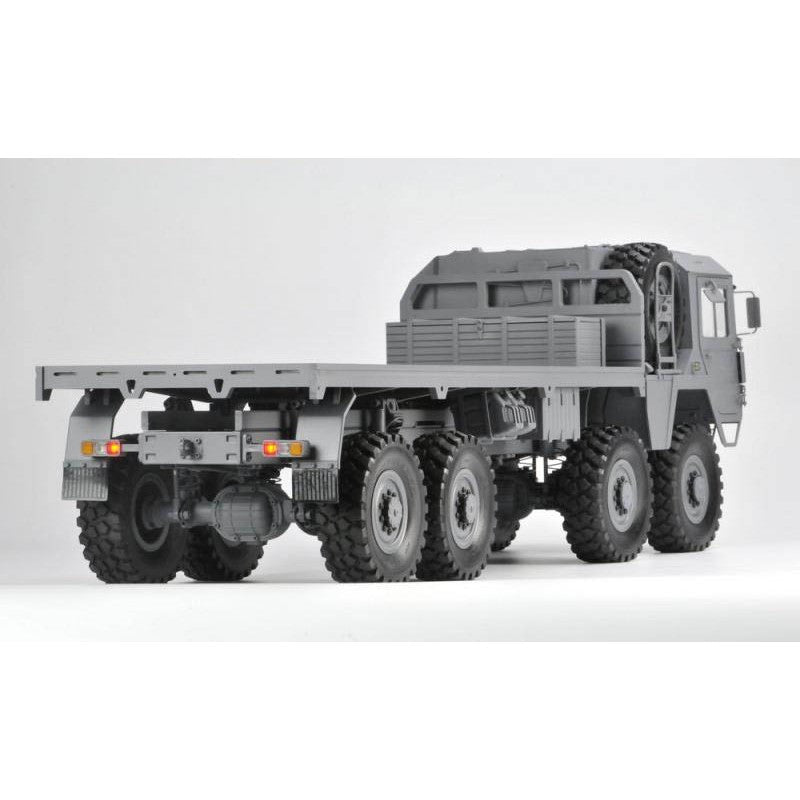

* RTR Version: Includes 1 original motor; 2 servos (1 for steering, 1 for 2‑speed shift); 1 ESC; 1 transmitter (2 styles optional); battery and charger are optional.The CROSSRC MC8C features a cargo bed with fully independent, modular side rails, allowing it to be adapted for a variety of scale loading and hauling scenarios.

What truly defines an "Ultimate Edition"?

Do a detailed hard body, synchronized lighting, and a scale chassis design finally meet the ultimate demand? No. CrossRC shows us that realism can be pushed even further!

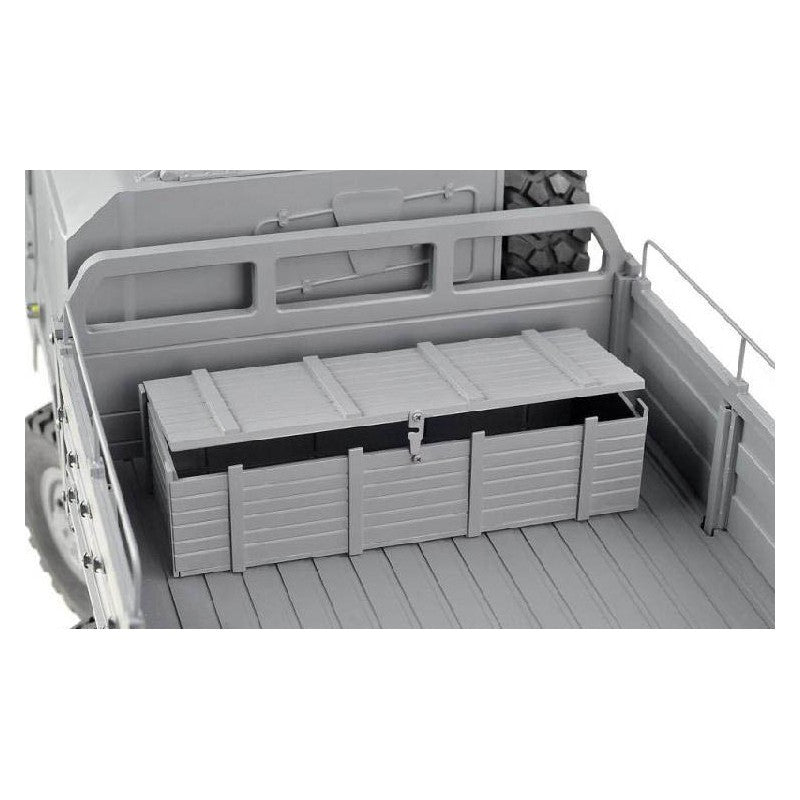

Dimensions: 814mm x 241mm x 250mm (approx. 32" x 9.5" x 9.85")The CROSSRC MC8C features a new simulated wooden crate battery box. Compared to the previous design that placed it in the front of the cab, this new location offers better concealment and a more realistic appearance. It is compatible with most standard 2S battery packs on the market.Lighting Effects – The CROSSRC MC8C comes equipped with a synchronized light system. Its headlights, turn signals, brake lights, and cabin interior lights respond realistically to driving actions, taking the sense of realism to the next level.Front Section – All-New Upgrade
One of the key highlights of the CROSSRC MC8C Ultimate Edition is the completely upgraded front section.

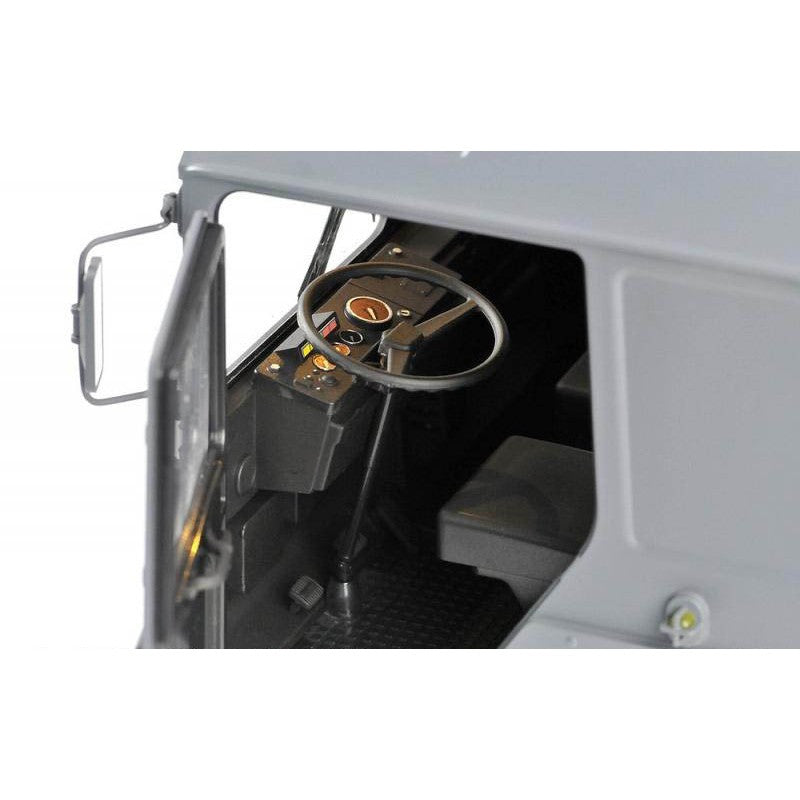

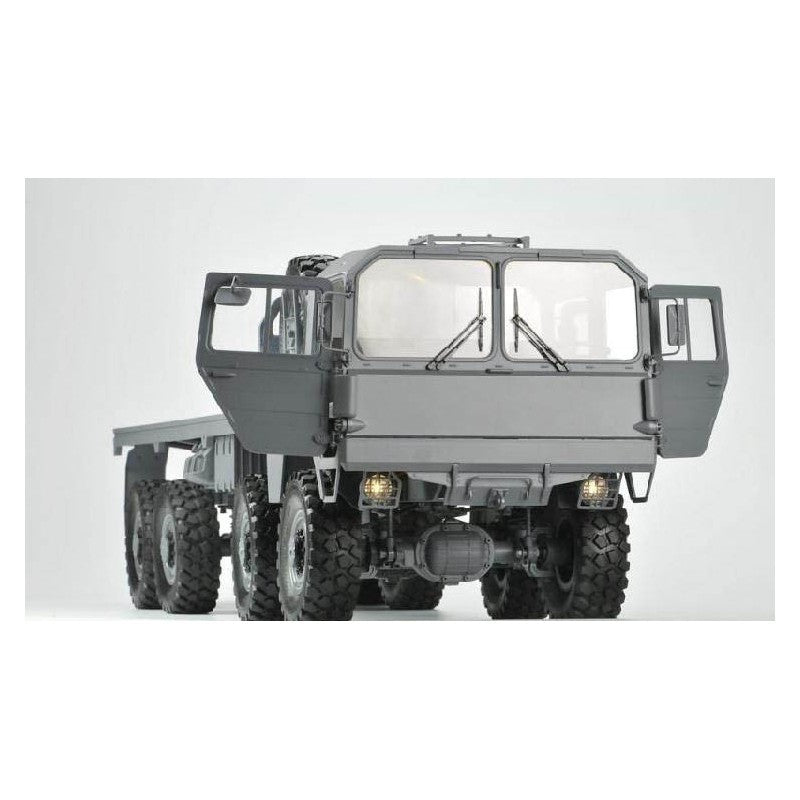

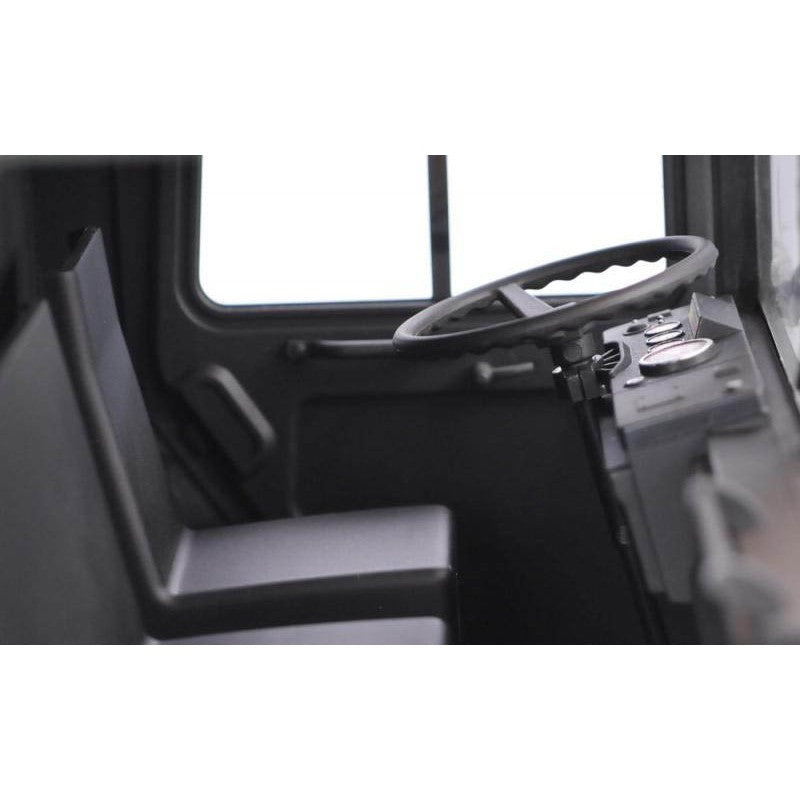

The doors are now separate components, and the cabin details have been dramatically enhanced.More Custom Interior Possibilities
CROSS finally has a vehicle with truly functional opening doors.
This opens up more possibilities for players to customize the cabin interior.

With careful detail painting, the realism is truly commendable.The speaker placement is ingeniously concealed, with virtually no impact on the exterior appearance.

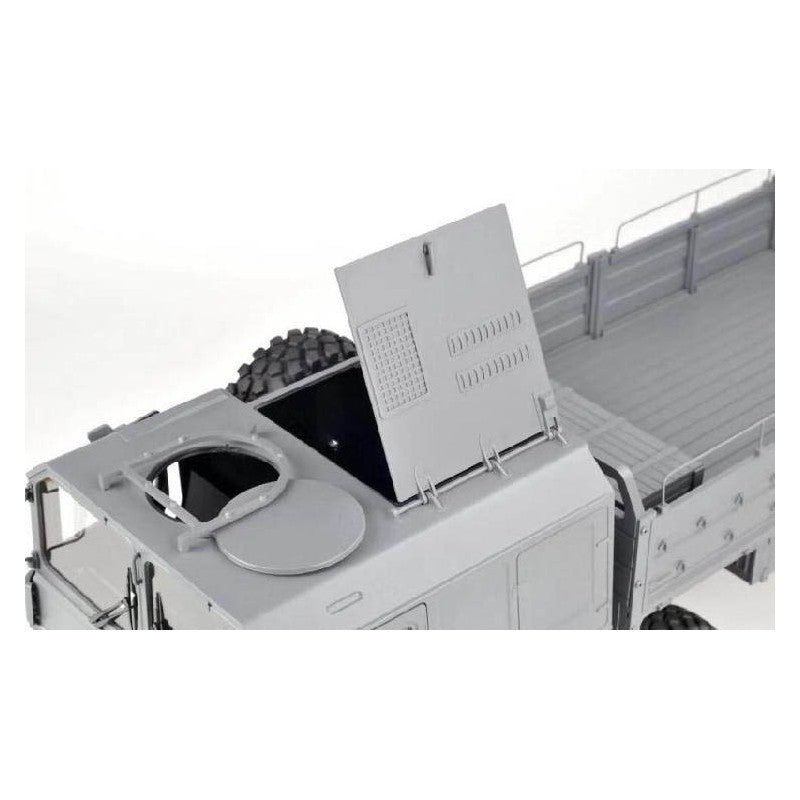

The roof skylight and both doors are also operable, housing the sound system speakers inside.
CROSSRC MC8C makes full use of the internal structure to achieve realistic effects.CROSSRC MC8C all-new metal wheels feature richer details. The meticulously designed tread pattern effectively ensures grip.A crawler chassis truly worthy of the "Ultimate Edition" title：

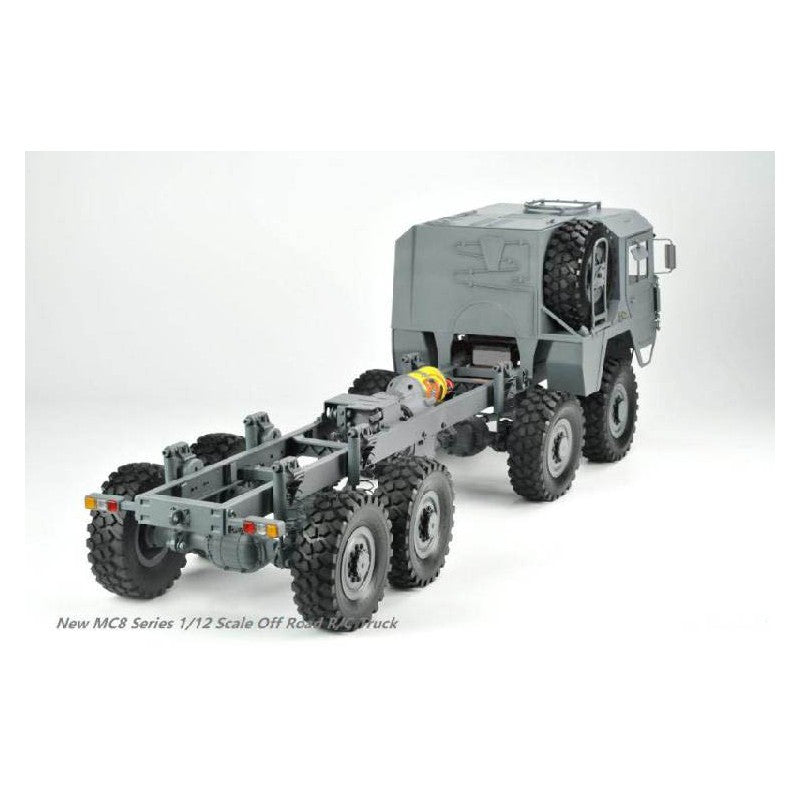

CROSSRC MC8C chassis aluminum alloy main rails feature a C-shaped channel on the inside, making it easier to route lighting wires, while inheriting the proven chassis design.
However, the overall material quality represents a qualitative leap compared to the older MC series.8 Independent Metal Shock Absorbers：

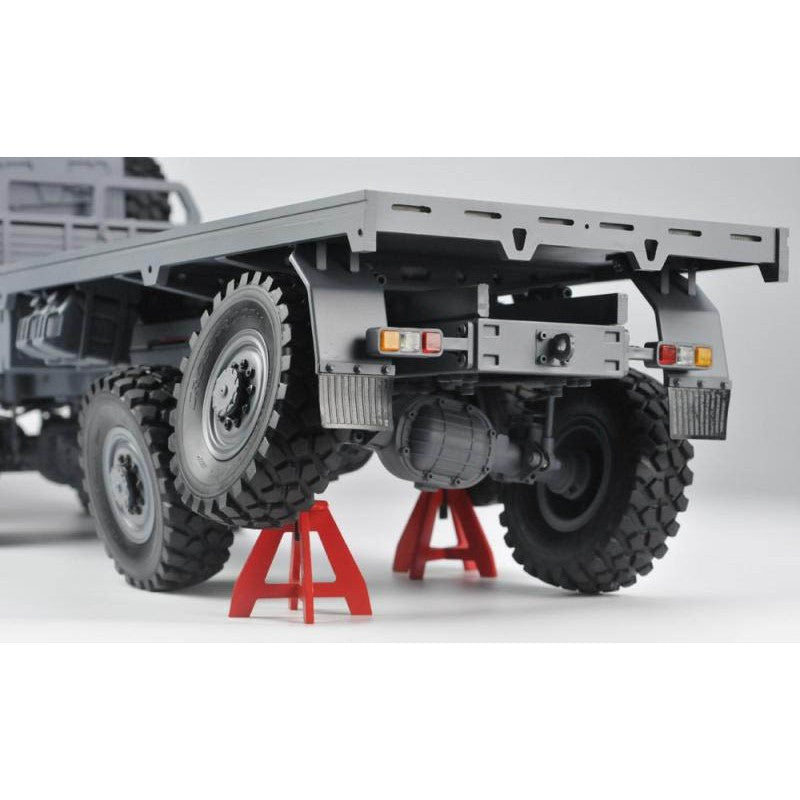

CROSSRC MC8C features a separate cylinder and spring design for easy maintenance and high articulation capability.Axles Fully Upgraded to Die-Cast Metal：
CROSSRC MC8C Significantly increased strength. Housing is independently removable for easier maintenance. All drivetrain components feature a dog bone design.Front and Rear Axles Upgraded to New Telescopic Metal CVDs：
Metal construction for enhanced durability.
CROSSRC MC8C telescopic design maintains power transmission efficiency even during extreme axle articulation.Front Axle Steering Structure：
CROSSRC MC8C features Metal axle housing ensures higher steering precision and enhanced durability.Standard CROSS 550 Motor:
CROSSRC MC8C transmission has been upgraded from the old single-speed to a two-speed gearbox, allowing switching between high and low gear ranges. The low range provides smoother, more linear crawling and enhanced performance.CROSSRC MC8C Metal shift servo mount, compatible with all standard-size servos on the market

Servos*2 (RTR only):

HT 9350F High-Torque Servo – High-voltage brushless, 70kg torque, IPX8 waterproof rating, steel gears, and stall protection.

Product Specifications：
HT-9350F Ghost Upgraded Version
•   Housing Material: Aerospace aluminum alloy CNC machined
•   Gear Material: Full steel gears
•   Control System: PWM Control (Center Point 1500μs)
•   Operating Voltage: DC 6.0V ~ 8.4V
•   Operating Temperature: -20°C ~ +70°C
•   Maximum Rotation Angle: 180° ±5°
•   Pulse Width Range: 500 to 2500 μs
•   Motor Type: Brushless High-Speed Motor
•   Dead Band Width: 2 μs
•   Bearings: 2 Ball Bearings
•   Wire: 22AWG, 300mm, JR connector
•   Dimensions (L x W x H): 40 x 20 x 39.85 mm
•   Weight: 80g

Speed & Stall Torque
•   0.05 sec/60° @ 12V: 80 kg-cm (858 oz-in) @ 7500 mA
•   0.08 sec/60° @ 8.4V: 60 kg-cm (666 oz-in) @ 6000 mA
•   0.09 sec/60° @ 7.4V: 50 kg-cm (583 oz-in) @ 5200 mA
•   0.12 sec/60° @ 6.0V: 40 kg-cm (500 oz-in) @ 4500 mA

ESC*1(RTR only):

HobbyWing KuangPao WP-1080-G2 80A Waterproof Brushed ESC for Crawlers.

Remote Control Option 1 (RTR only):

FLYSKY G11P ANT 11-Channel RC Transmitter and Receiver for Cars and Boats.

Remote Control Option 2 (RTR only):

FLYSKY Noble NB4+ Transmitter and Receiver: 8-Channel Waterproof 2.4GHz Touch Screen Transmitter for RC Cars.

Battery (optional):

GREPOW (GENS ACE) Redrock G-tech 5200mAh 50C 11.1V 3S LiPo Battery with Voltage Display

Charger (optional):

GREPOW (GENS ACE) iMars S100 Smart Balance Charger/Discharger - 100W for RC Car/Drone LiPo Batteries
