Hobbywing XeRun 2848SD Sensored Brushless Motor
Don't let the compact size fool you. The XeRun 2848SD packs serious performance into a 28.5×48mm frame — 15% more power output than motors of equal size, IP5X dustproof, and cogging so low it's about 1/4 of popular competing brands. Built for 1/14 and 1/12 scale heavy-duty trucks and on/off-road applications where smooth low-speed control and durability matter.
Key Features
- 15% More Power Output – Compared to motors of equal size and specifications — more punch without upsizing your motor
- IP5X Dustproof – Sealed for dusty off-road track environments, keeping internals clean run after run
- 6% Higher Efficiency, Lower Running Temperature – 0.1 N·m load test results: max efficiency up 6%, internal temp ~20°C lower, external temp ~10°C lower vs comparable motors
- Ultra-Low Cogging – Approximately 1/4 the cogging of popular brands for smooth, linear throttle response at low speeds — ideal for crawling and technical driving
- Full Sensored Mode – Pairs with Hobbywing XeRun XR14 ESC for pure sensored operation and precise throttle control

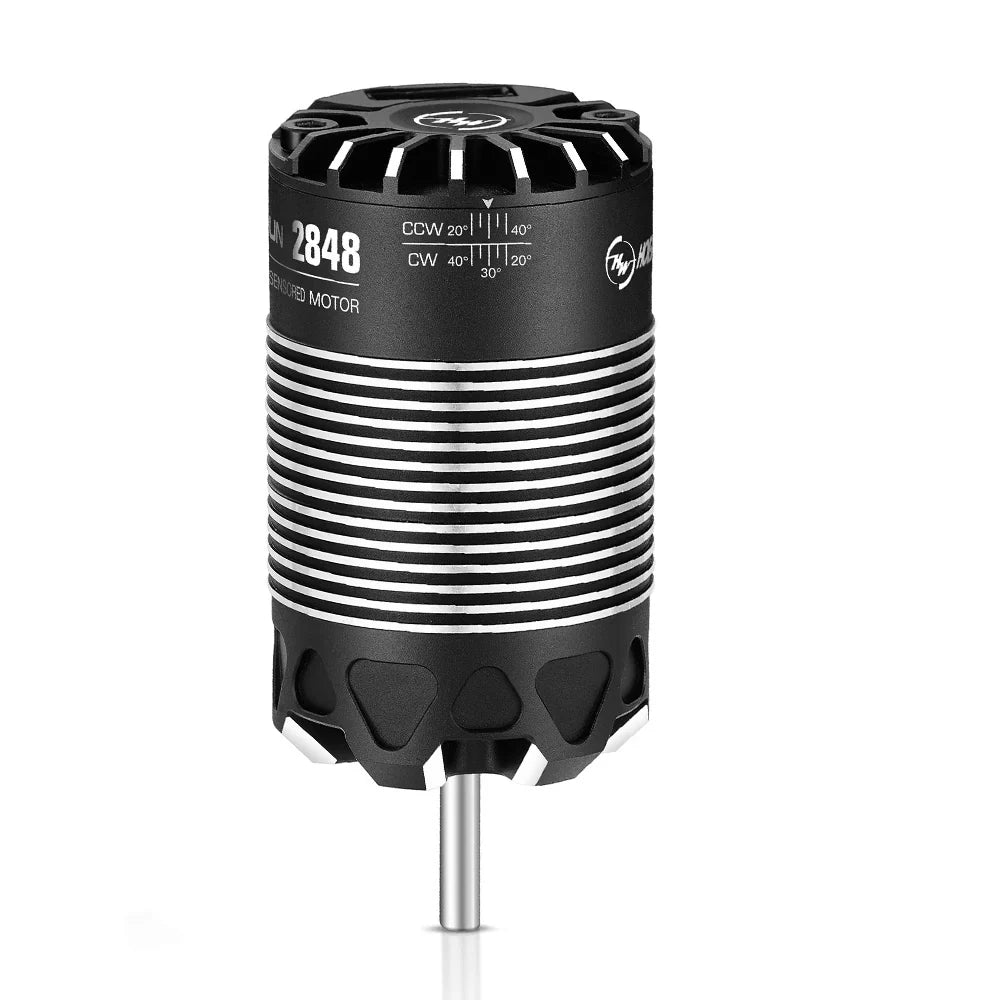

- Adjustable Mechanical Timing – CW/CCW rotation; adjustable 20–40° for power tuning

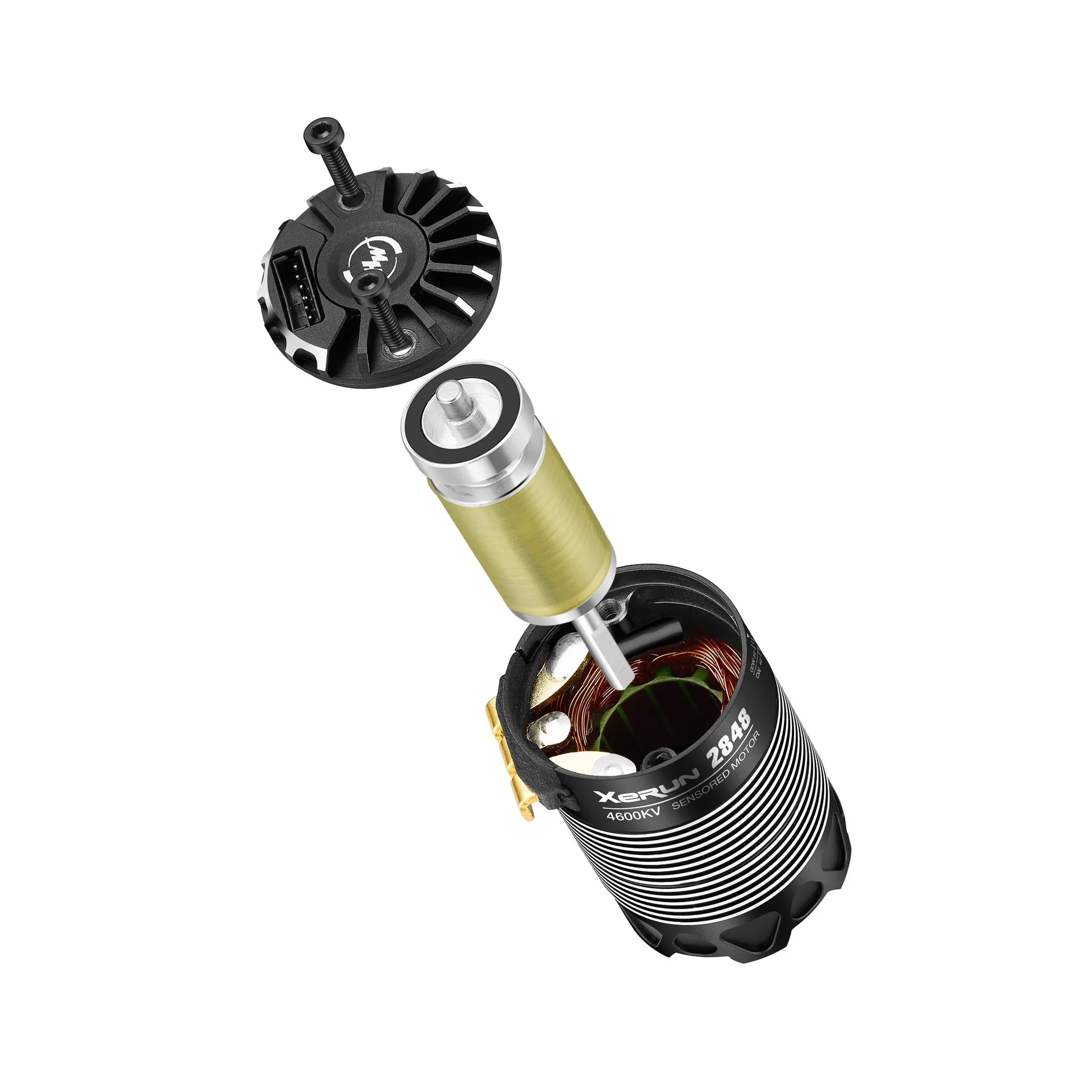

- Modular Design – Easy to disassemble, clean, and maintain in the field
- Premium Materials – Iron core, high-precision grade bearings, 200°C heat-resistant wire, 180°C heat-resistant rotor, gold-plated U-shaped copper solder bars with widened gap for easier soldering
Motor Specifications
| Spec | 2800KV | 4000KV | 4600KV |
|---|---|---|---|
| Product Number | 30401320 | 30401321 | 30401322 |
| KV (no load) | 2800KV | 4000KV | 4600KV |
| Poles | 4 | 4 | 4 |
| LiPo | 2-3S | 2-3S | 2S |
| No-load Current | 1.5A | 2.1A | 2.6A |
| O.D. (mm) | 28.5mm | ||
| Length (mm) | 48mm | ||
| Shaft Diameter | 3.175mm | ||
| Weight | 100g | ||
| IP5X Dustproof | ✅ Yes | ||
Bearing Specifications
| Position | Specification |
|---|---|
| Front Bearing | D9.525 × D3.175 × T3.9675mm |
| Rear Bearing | D6.35 × D3.175 × T2.778mm |
Which KV Should You Choose?
- 2800KV (2-3S) – Maximum torque for crawling, technical terrain, and heavy-duty hauling; smoothest low-speed control
- 4000KV (2-3S) – All-round choice for mixed on/off-road driving — good balance of torque and top speed
- 4600KV (2S) – Highest top speed for flat-out racing and speed runs on 1/14 on-road setups
Compatible Applications
- 1/14 scale heavy-duty RC truck – primary application
- 1/12 scale on-road and off-road RC vehicles
- Best matched with Hobbywing XeRun XR14 ESC
What's Included
- Hobbywing XeRun 2848SD brushless motor (per selected KV)
- Sensor cable
- Factory accessories
Important: Do not run the motor without load for extended periods. Stop use if motor shell temperature exceeds 100°C/212°F. Follow A-A, B-B, C-C wiring order when connecting to ESC. Never hit full throttle before installing the pinion.
