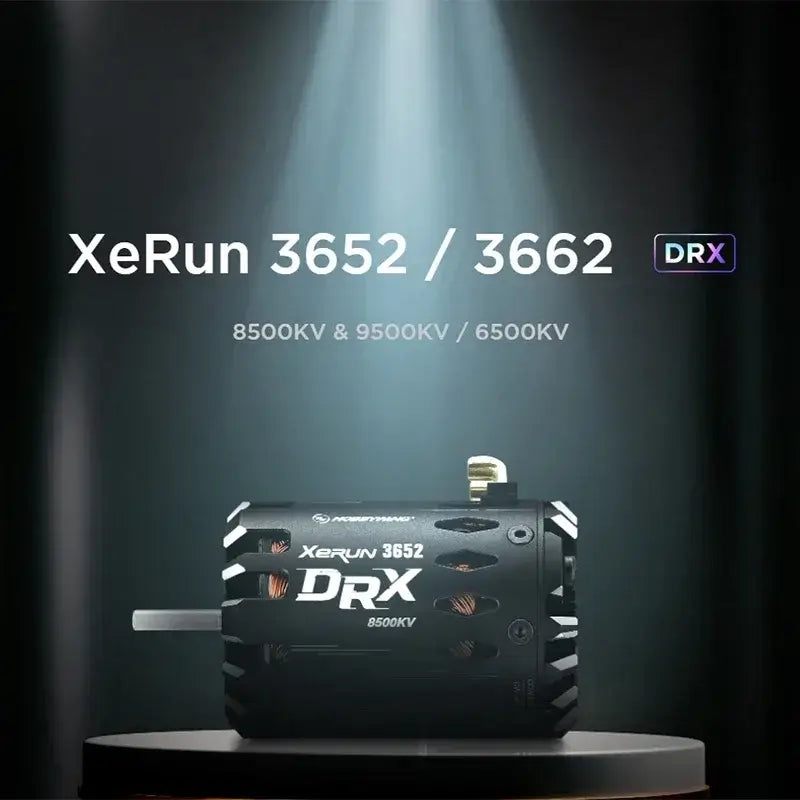

Hobbywing XeRun 3652 / 3662 DRX Sensored Brushless Motor for 1/10 Drag Racing RC Car

The Hobbywing XeRun 3652 / 3662 DRX is a high-performance sensored brushless motor designed specifically for 1/10 drag racing RC cars. Available in 8500KV, 9500KV (3652), and 6500KV (3662), it delivers maximum straight-line speed and precise power control on 2S LiPo — the go-to motor for competitive RC drag racing.

Key Features

• Ultra-High RPM Design — Built specifically for drag racing, optimized for maximum straight-line speed on 2S LiPo
• Large-Opening Motor Case — Oversized end cover structure for superior heat dissipation during high-current runs
• Dual Sensor Port Design — Two sensor output sockets for flexible wiring layouts; unused port protected by dust-proof plug
• Widened & Thickened Copper Bar — Custom UU-shaped gold-plated curved copper bar lowers internal resistance, improves current capability, and makes soldering easier
• Steel Sleeve Explosion-Proof Rotor — Reinforced rotor design handles extreme high-RPM running conditions reliably
• High Hardness Aluminum CNC Shell — Precision-machined aluminum housing for durability and heat management
• High Performance Iron Core — Premium iron core for efficient power transfer and consistent output
• 200°C High-Temperature Resistance Wire — Premium windings rated for extreme heat during competition runs
• High Toughness Alloy Output Shaft — Durable alloy shaft handles the torque demands of drag racing launches
• Modular Structure Design — Easy disassembly for routine cleaning and maintenance; extends service life and maintains working efficiency

Motor Specifications

Parameter	XeRun 3652 DRX 8500KV	XeRun 3652 DRX 9500KV	XeRun 3662 DRX 6500KV
Scale	1/10	1/10	1/10
Motor Type	Brushless Sensored	Brushless Sensored	Brushless Sensored
KV Rating	8500KV	9500KV	6500KV
LiPo Cells	2S	2S	2S
No-load Current	8.2A	8.6A	—
O.D.	36mm	36mm	36mm
Length	53mm	53mm	62mm
Shaft Diameter	3.175mm	3.175mm	3.175mm
Application	1/10 Drag Racing	1/10 Drag Racing	1/10 Drag Racing

Which KV Should You Choose?

• 6500KV (3662) — Maximum torque and power output, best for heavier builds or drivers who want the most consistent power delivery
• 8500KV (3652) — Better torque off the line, more controllable power delivery. Recommended for most drag racing setups on 2S
• 9500KV (3652) — Maximum top-end RPM for experienced drivers who want the highest possible speed on 2S

Applications

• 1/10 drag racing RC cars (2S LiPo)
• Compatible with Hobbywing XeRun series ESCs

Note: Always verify ESC compatibility before purchase. This motor is designed for drag racing applications — not recommended for off-road or crawler use.

The Hobbywing XeRun 3652 / 3662 DRX is a high-performance sensored brushless motor designed specifically for 1/10 drag racing RC cars. Available in 8500KV, 9500KV (3652), and 6500KV (3662), it delivers maximum straight-line speed and precise power control on 2S LiPo — the go-to motor for competitive RC drag racing. The XeRun 3652 / 3662 DRX is built for one thing — raw speed. High KV ratings combined with a fully adjustable endbell and precision timing tuning deliver unmatched straight-line acceleration, giving you the competitive edge on the drag strip. The XeRun 3652 / 3662 DRX delivers powerful, consistent, and reliable output every run. The 3662-6500KV motor achieves approximately 6% higher maximum output power compared to top-of-the-line motors on the market — giving you a measurable performance advantage on the drag strip. Independent dyno testing confirms the XeRun 3662SD DRX 6500KV outperforms competing motors in the same KV class. The output power curve shows a clear advantage over both 6600KV and 6500KV motors from other brands — delivering more usable power across the entire torque range where it matters most on the drag strip. High efficiency, less heat. The XeRun 3662 DRX motor is extremely efficient, generating significantly less heat than similar motors. Under a 0.23N·m load test, the 3662 motor coil temperature runs approximately 20°C lower, and the external case temperature is 8°C cooler compared to competing motors — keeping your motor running at peak performance run after run. Failure proof rotor. The DRX rotor is reinforced with a steel sleeve that ensures it can withstand the most extreme demands of drag racing — high-RPM launches, repeated full-throttle runs, and the intense stress of competitive racing, all without failure. Dual sensor port design for easy wiring. The DRX features two sensor ports on the endbell, giving builders flexible wiring options to suit any chassis layout — no compromises when it comes to installation. Modular design for easy maintenance. The DRX motor adopts a modular structure design, making routine cleaning and maintenance straightforward — effectively prolonging the service life of the motor and maintaining peak working efficiency race after race. Premium materials, strong and reliable. The DRX is built from the ground up with top-tier components — high hardness aluminum CNC shell, high performance iron core, steel sleeve explosion-proof rotor, 200°C high temperature resistance wire, high toughness alloy output shaft, and top-of-the-line bearings. The outlet terminal features a customised UU-shaped gold-plated curved copper bar, widened and thickened for lower internal resistance, stronger current resistance, and easier soldering during builds.
