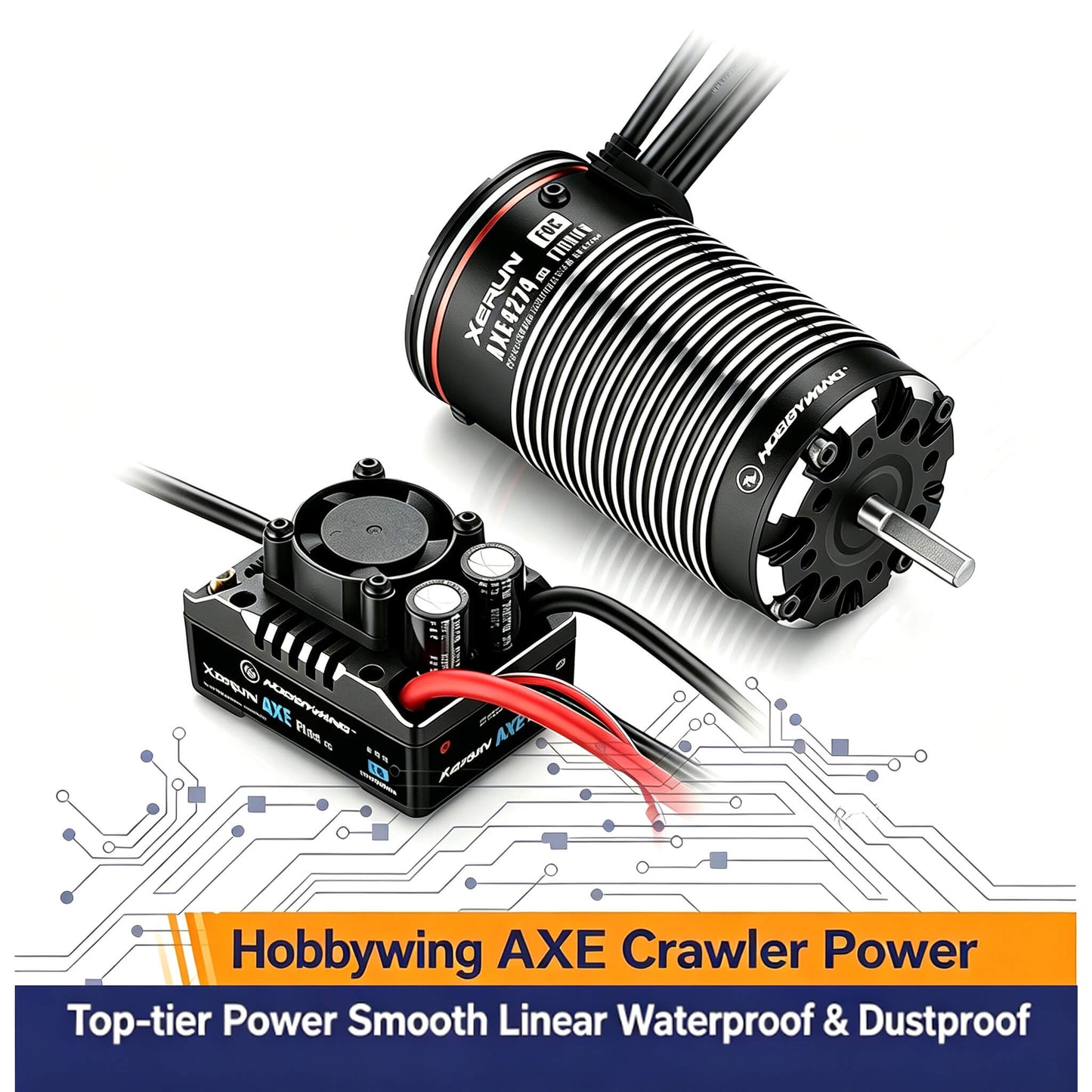

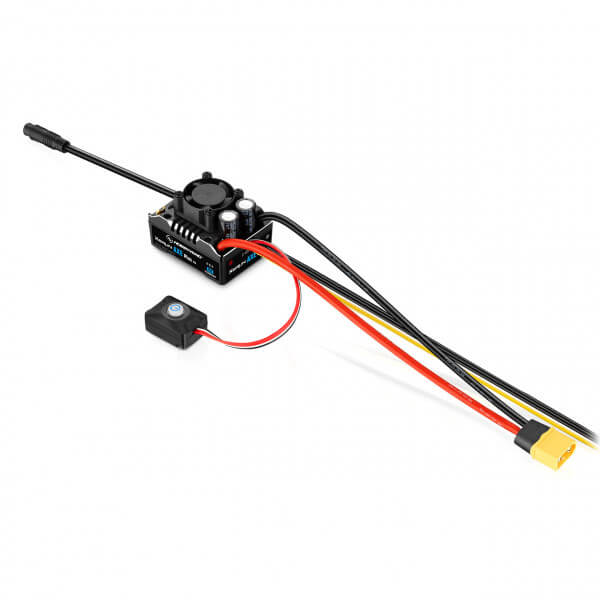

Hobbywing XeRun AXE Plus R3 135A ESC & Brushless Motor for 1/10 RC Crawler – FOC System Waterproof

Hobbywing XeRun AXE Plus R3 135A ESC & Brushless Motor

The XeRun AXE Plus R3 is Hobbywing's dedicated FOC (Field-Oriented Control) crawling system designed specifically for 1/10–1/6 scale RC crawlers. Whether you need a complete ESC + motor combo or just the motor or ESC on its own, the AXE Plus R3 system delivers smooth, ultra-low-speed control and maximum crawling performance on any terrain.

Key Features

• FOC Technology – Ultra-smooth throttle response and precise low-speed control for technical crawling
• High Torque Output – Sensored brushless motor delivers consistent power from a dead stop
• Waterproof Design – Fully sealed motor and ESC for all-weather, all-terrain use

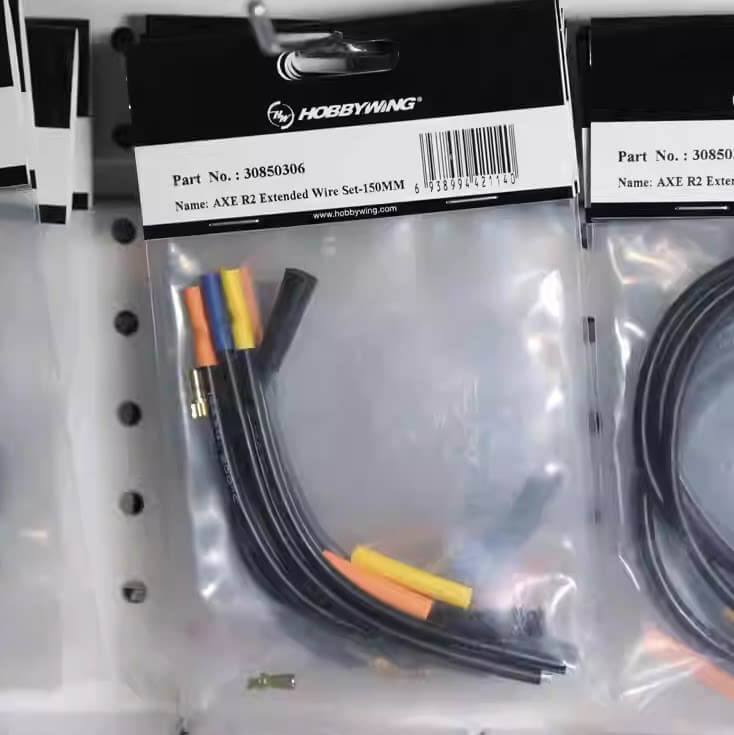

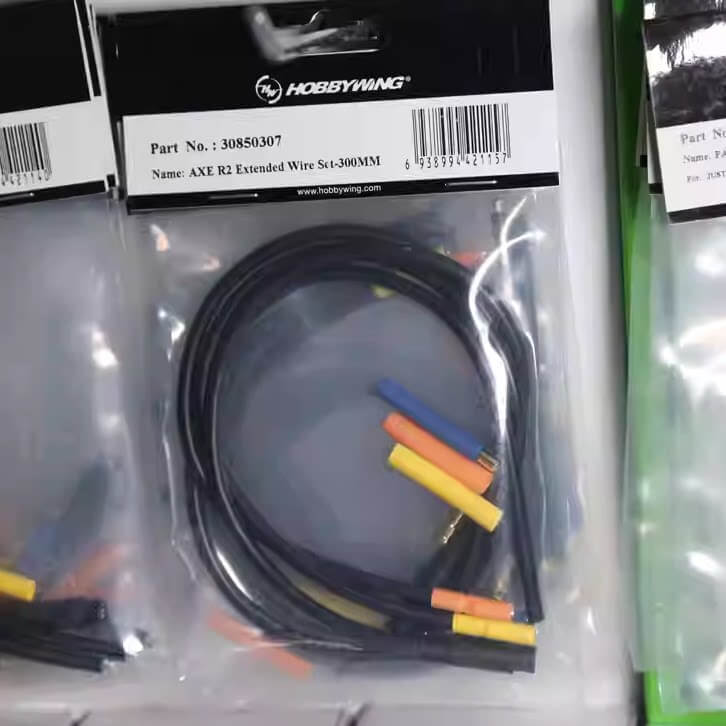

• Flexible Options – Available as ESC + motor combo, ESC only, motor only, or sensor wire extension
• Compatible with 1/10–1/6 Scale Crawlers – Fits most popular platforms including SCX10, TRX-4, and more

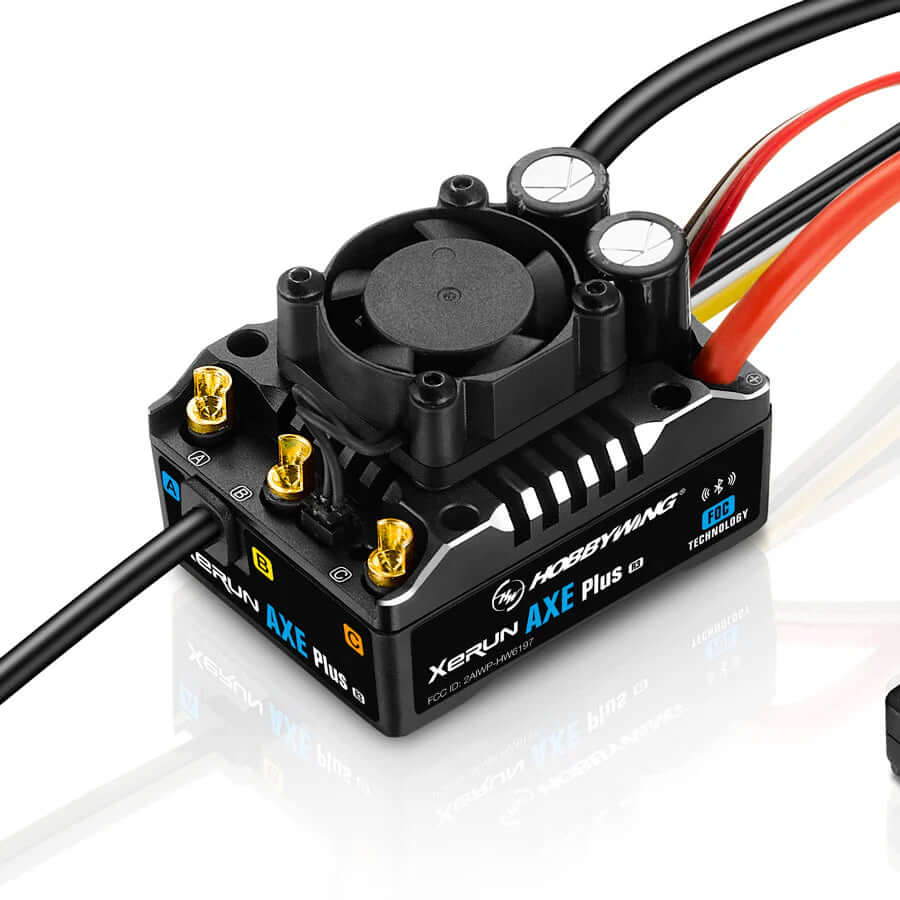

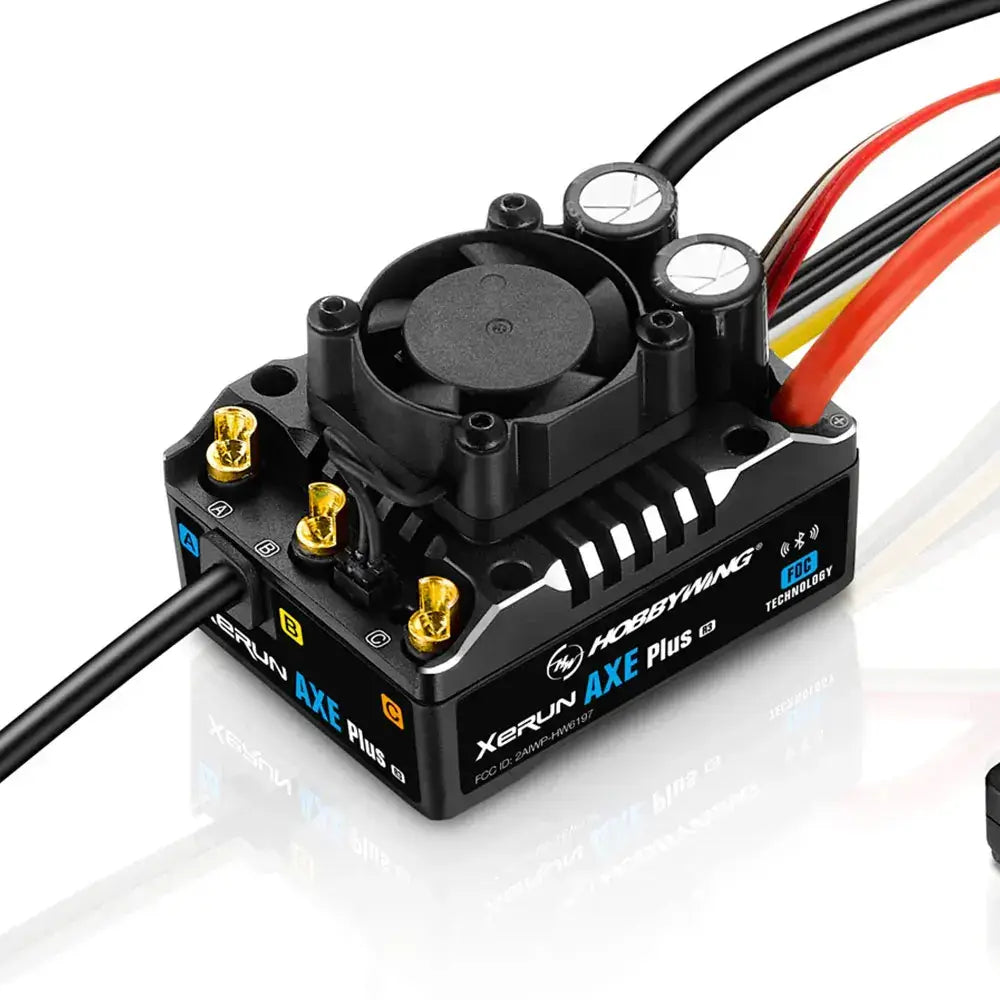

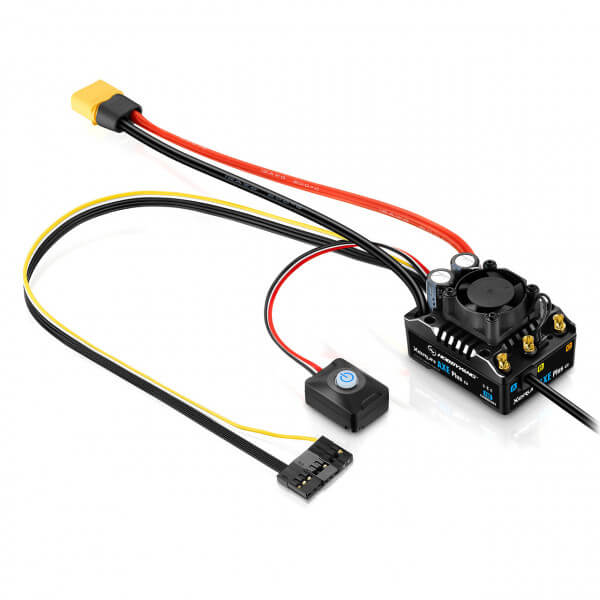

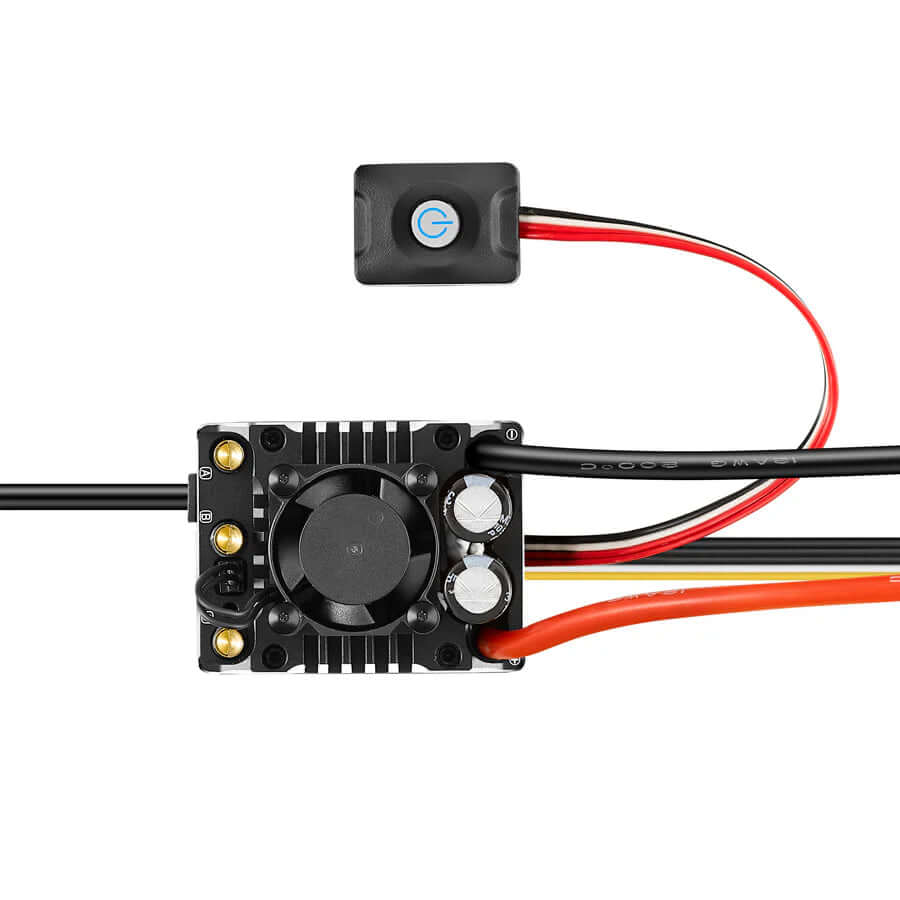

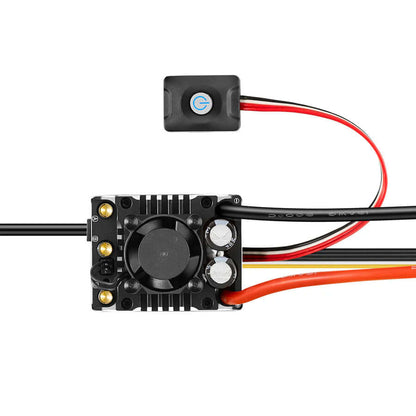

AXE Plus R3 ESC Specifications

Parameter	Value
Scale	1/10th, 1/8th, 1/6th
Motor Type	Brushless Sensored (FOC)
Waterproof	Yes
Continuous / Peak Current	135A / 600A
Input Voltage	2–6S LiPo
BEC Output	Switch Mode 6V / 7.4V / 8.4V @ 6A
Size	49.5 × 37.9 × 32.8mm (height with fan)
Weight	126.5g (including input line)
Compatible Motors	XERUN AXE R2 / R3 only
Compatible Vehicles	1/10th, 1/8th, 1/6th Rock Crawler
Supported KV / Motor	AXE R2: 540 / 540L / 550 | AXE R3: 4274

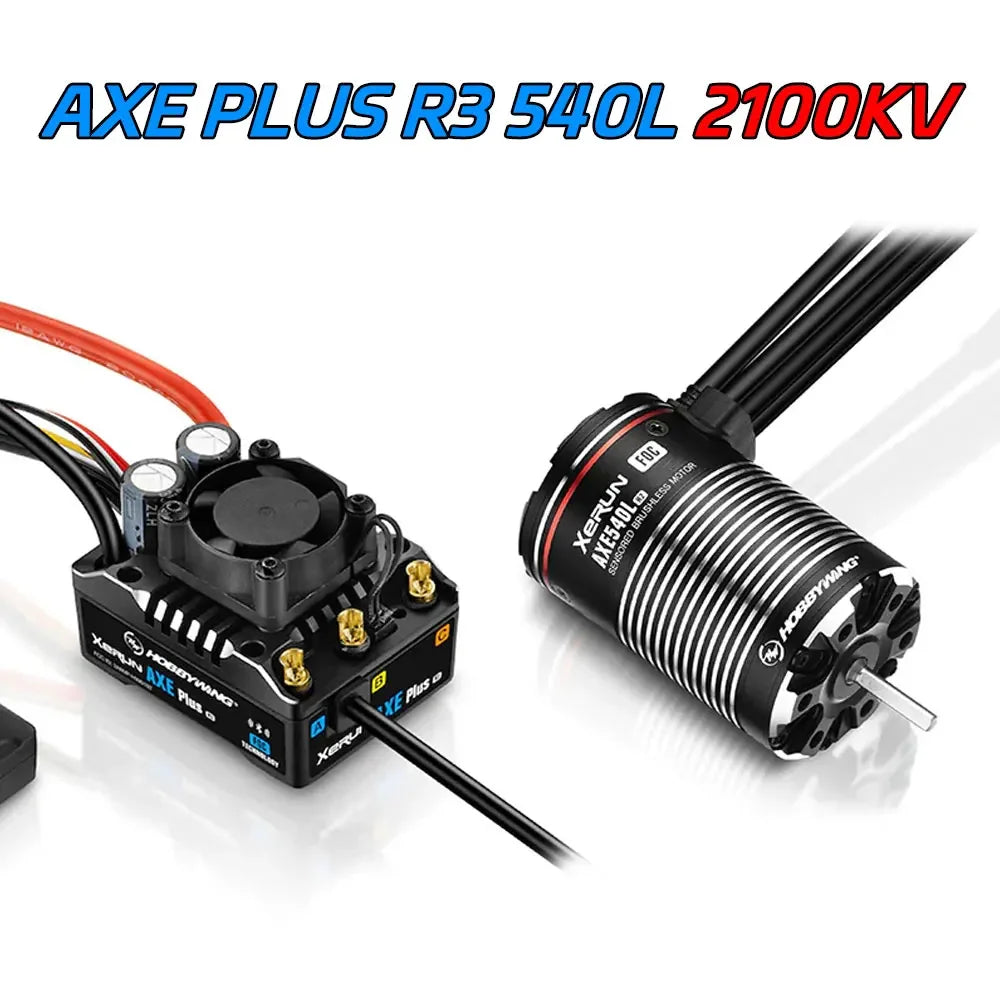

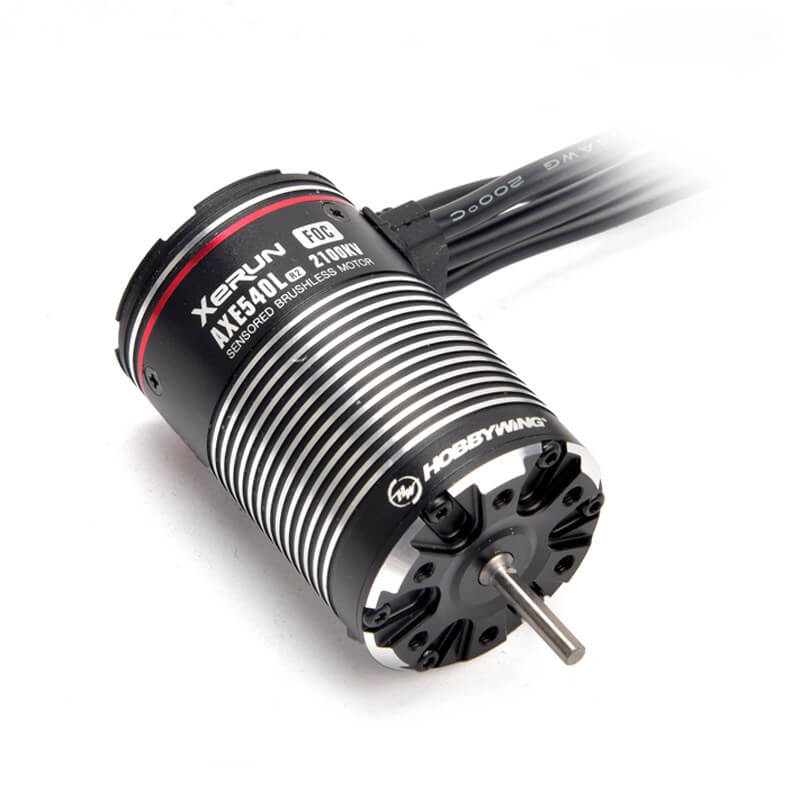

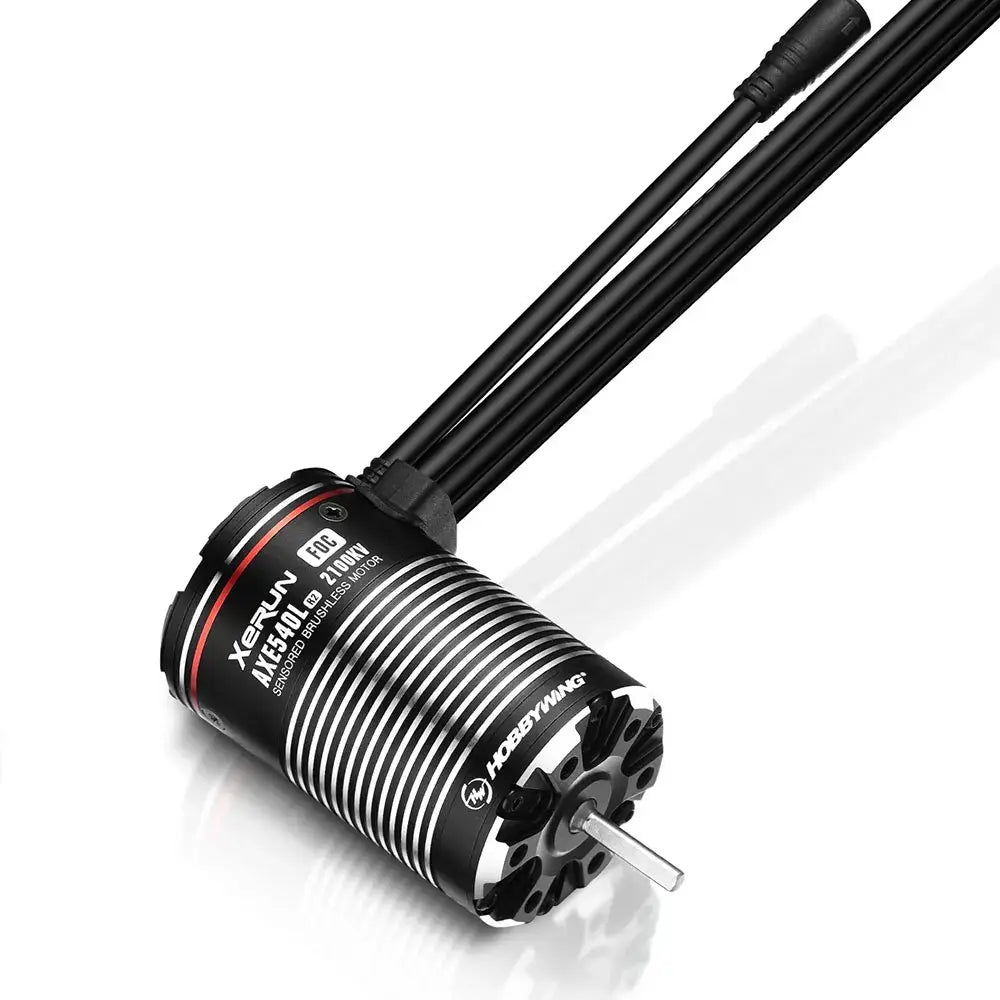

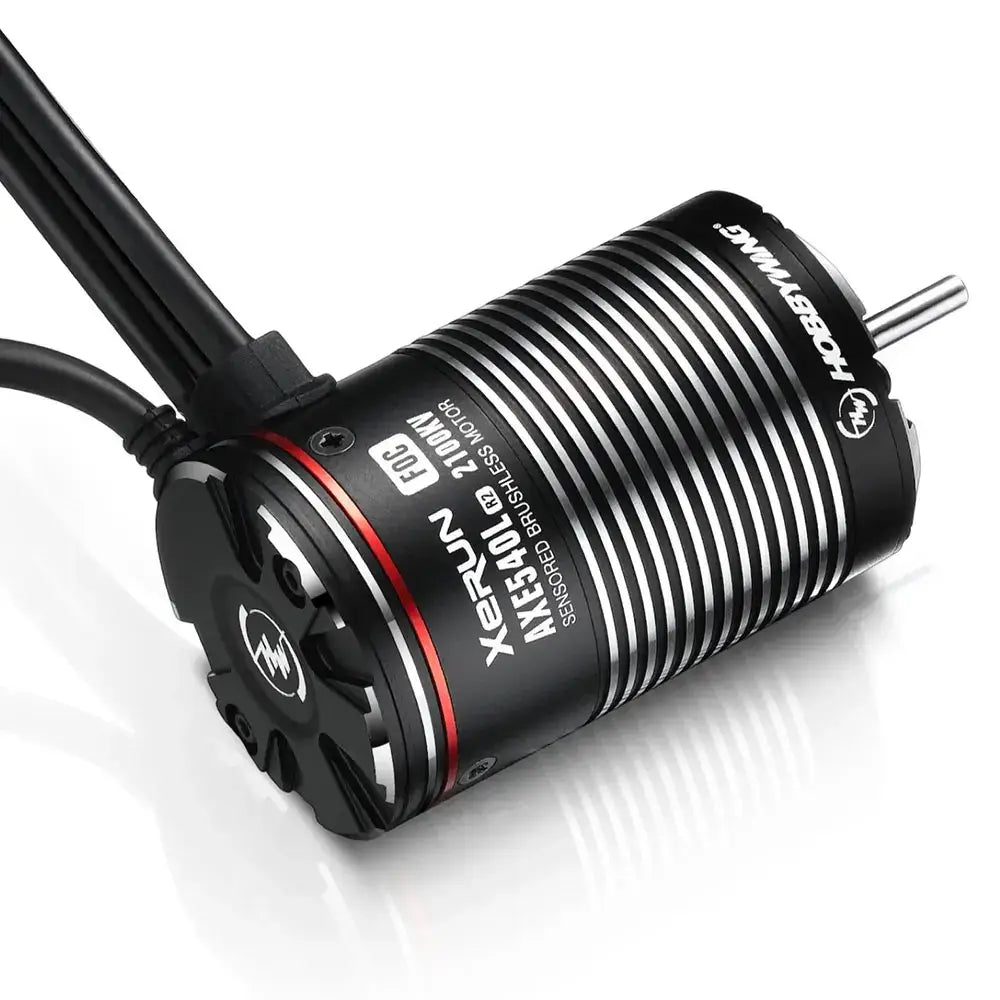

540L FOC Motor Specifications

1/10 FOC Brushless Motor (Patented) · Waterproof · Diameter: 36.0mm (1.42in) · Length: 48.8mm (1.92in) · Shaft Diameter: 3.175mm (0.125in) · 4-Pole

Spec	1400KV	2100KV	2300KV	2800KV
LiPo	2–3S	2–3S	2–3S	2–3S
Weight	175g	173g	173g	173g

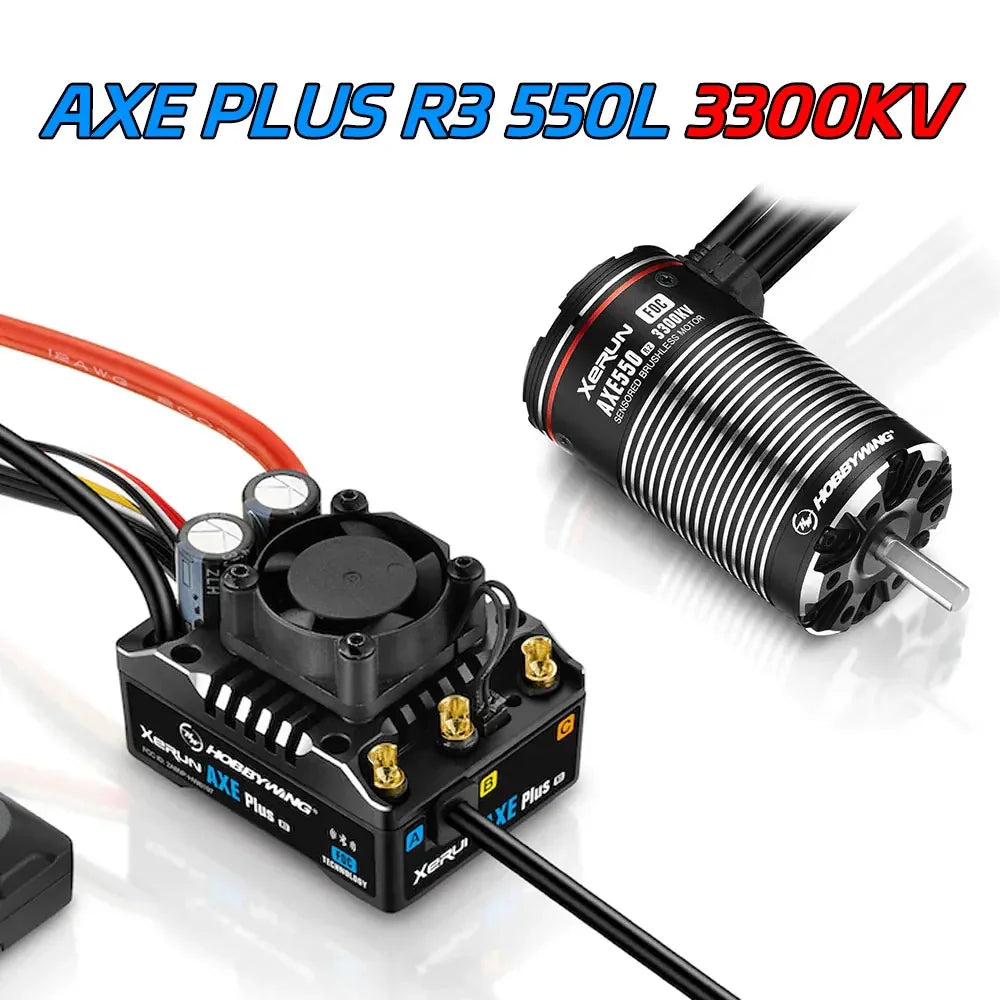

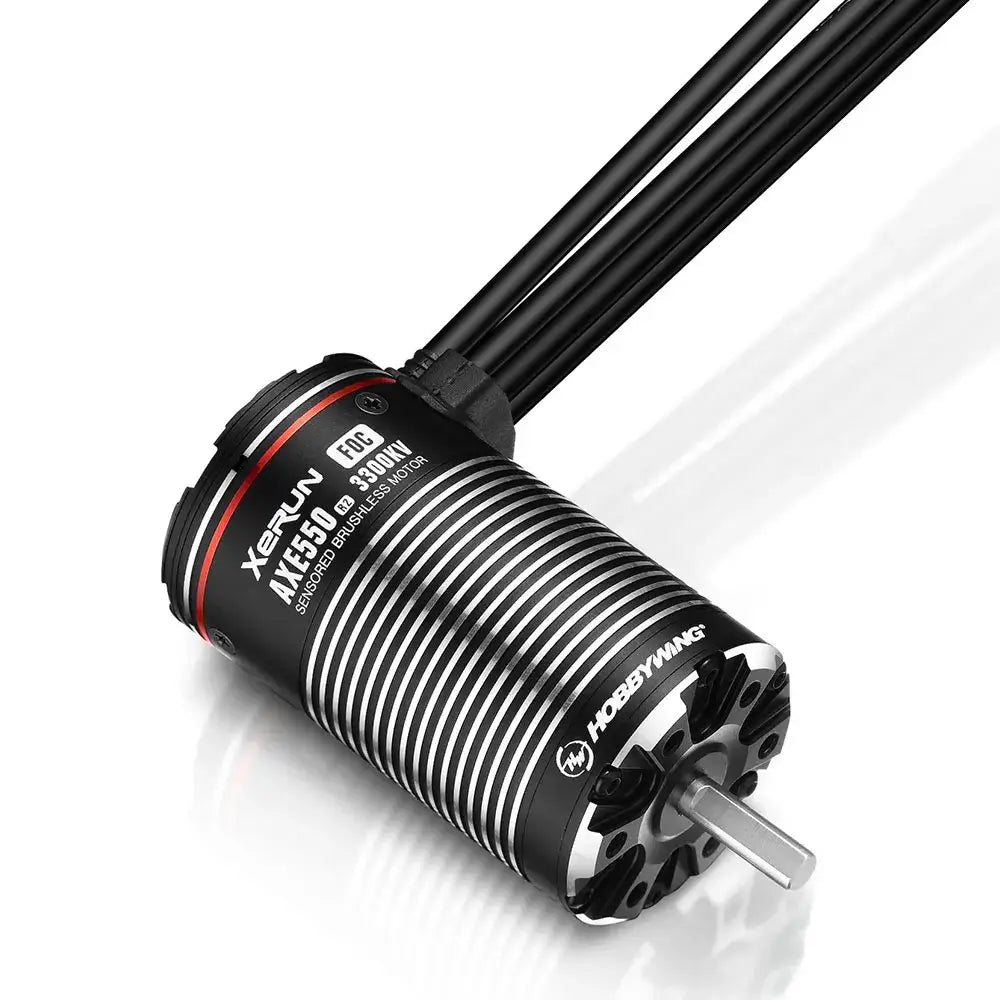

550 R2 FOC Motor Specifications

1/10–1/8th FOC Brushless Motor (Patented) · Waterproof · Diameter: 36.0mm (1.42in) · Length: 66.2mm (2.61in) · Shaft Diameter: 5mm (0.197in) · Shaft Length: 16mm (0.63in) · 4-Pole

Spec	3300KV
LiPo	2–3S
No-load Current	3.8A
Weight	284g

4274SD R3 FOC Motor Specifications

1/10–1/8th Large-format FOC Brushless Motor · Waterproof · 4-Pole

Spec	1700KV	2000KV
LiPo	2–6S	2–6S

The XeRun AXE Plus R3 is Hobbywing's complete FOC crawling system — available as ESC + motor combo, ESC only, or motor only to suit your build. FOC technology delivers ultra-smooth throttle response and precise low-speed control — the foundation of serious rock crawling performance. Fully sealed waterproof design on both the ESC and motor means the AXE Plus R3 handles rain, mud, and stream crossings without hesitation. The 540L FOC motor is available in 1400KV, 2100KV, 2300KV, and 2800KV — covering a wide range of gearing and terrain preferences for 1/10 crawlers. The 550 R2 3300KV FOC motor offers more torque in a longer 66.2mm can — ideal for heavier 1/10 and 1/8 scale crawler builds. The AXE Plus R3 ESC comes with XT60 connector and supports 2–6S LiPo input, with a switch mode BEC outputting 6V/7.4V/8.4V at 6A for servo power. FOC control delivers significantly smoother low-speed performance compared to traditional ESC systems — less cogging, more precise throttle, better rock crawling control. Compatible with most popular 1/10–1/6 scale crawler platforms including Axial SCX10, Traxxas TRX-4, and other standard motor mount configurations. The switchable BEC output (6V / 7.4V / 8.4V @ 6A) supports standard and high-voltage servos — no external BEC needed for most crawler builds. Optional 150mm and 300mm sensor wire extensions are available for builds where the standard cable length doesn't reach — select from the options above. Full combo package includes the AXE Plus R3 ESC, selected motor, sensor cable, and factory accessories — everything needed to upgrade your crawler's power system.

Important: The AXE Plus R3 ESC is only compatible with XERUN AXE R2 and R3 series motors. Do not use with other motor brands or models. Stop use if ESC or motor temperature becomes excessively hot.
