Hobbywing XeRun XR10 Pro G3/G3X 160A ESC & Brushless Motor Combo for 1/10 RC Buggy – Sensored Racing Speed Controller

Hobbywing XeRun XR10 Pro G3 / G3X Sensored Brushless ESC

The XeRun XR10 Pro G3 and G3X are Hobbywing's purpose-built ESCs for 1/10 Modified and SPEC class RC car racing. Both support sensored and sensorless brushless motors on 2S LiPo power, with extensive tuning options for competitive racing.

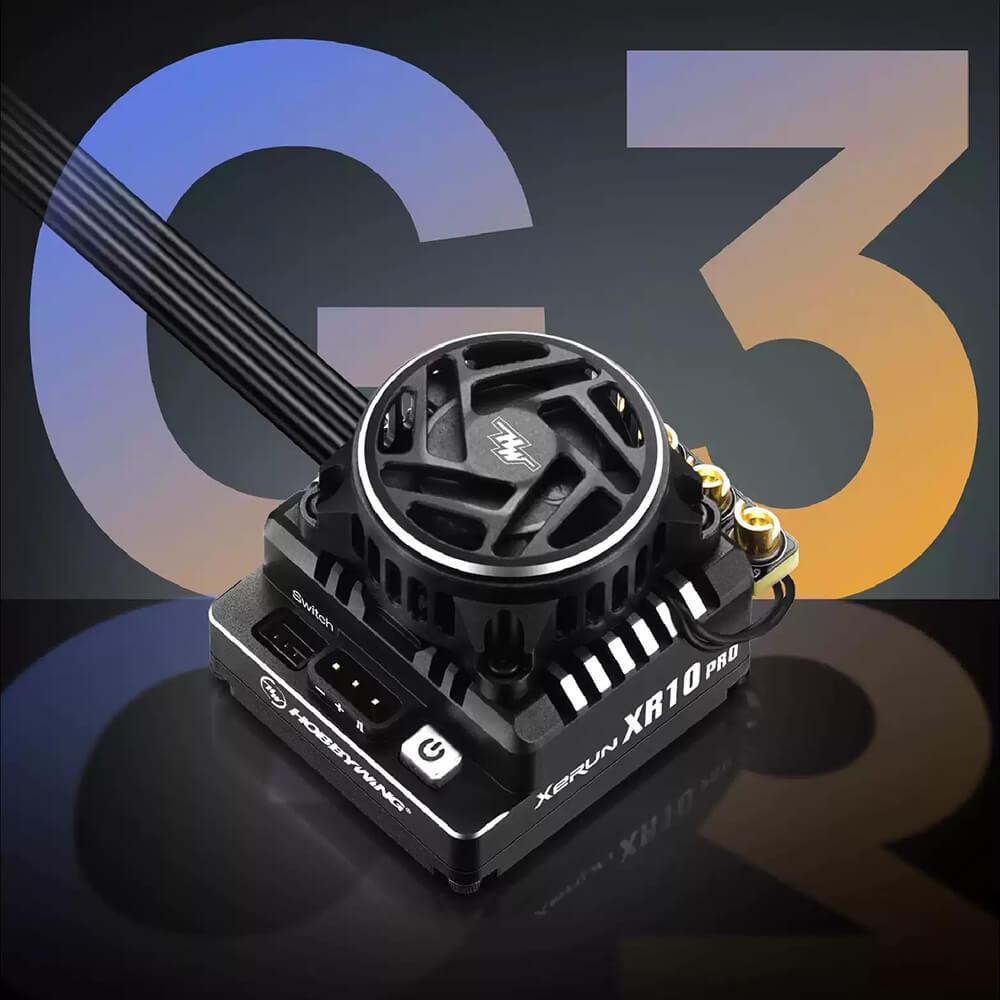

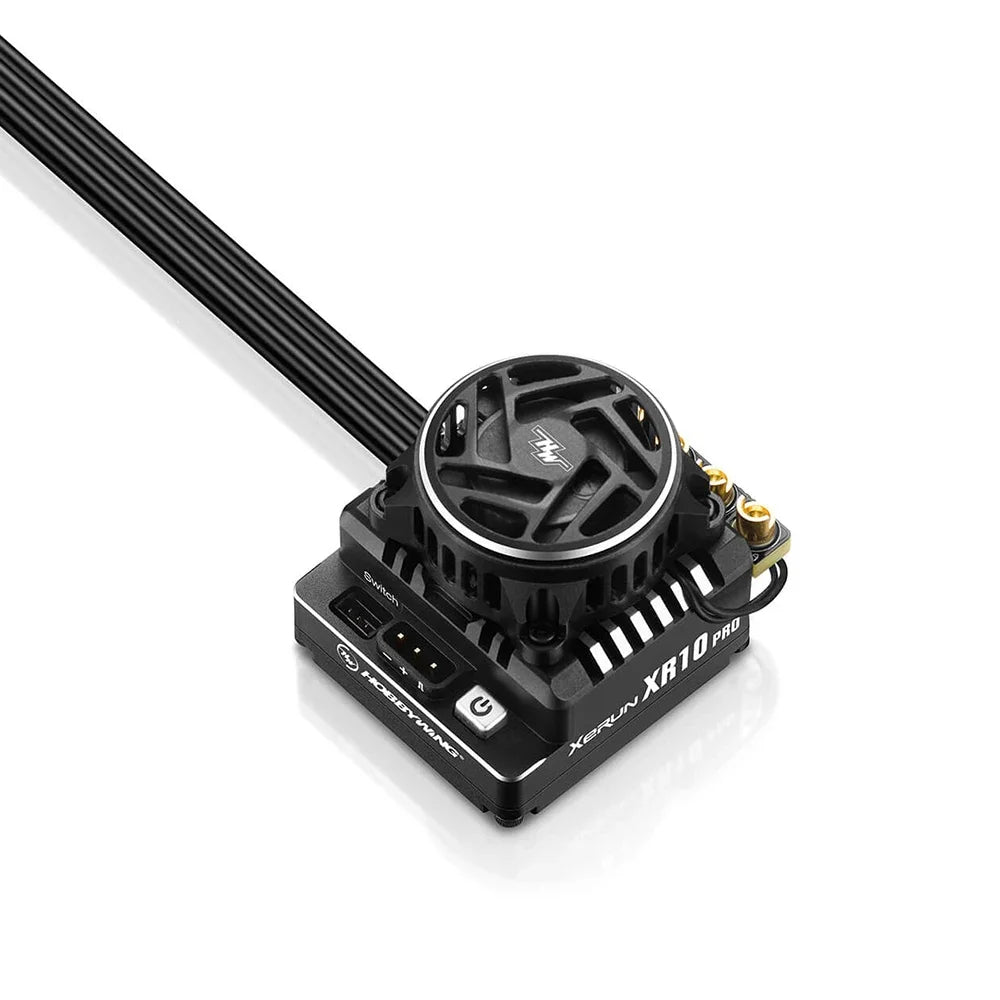

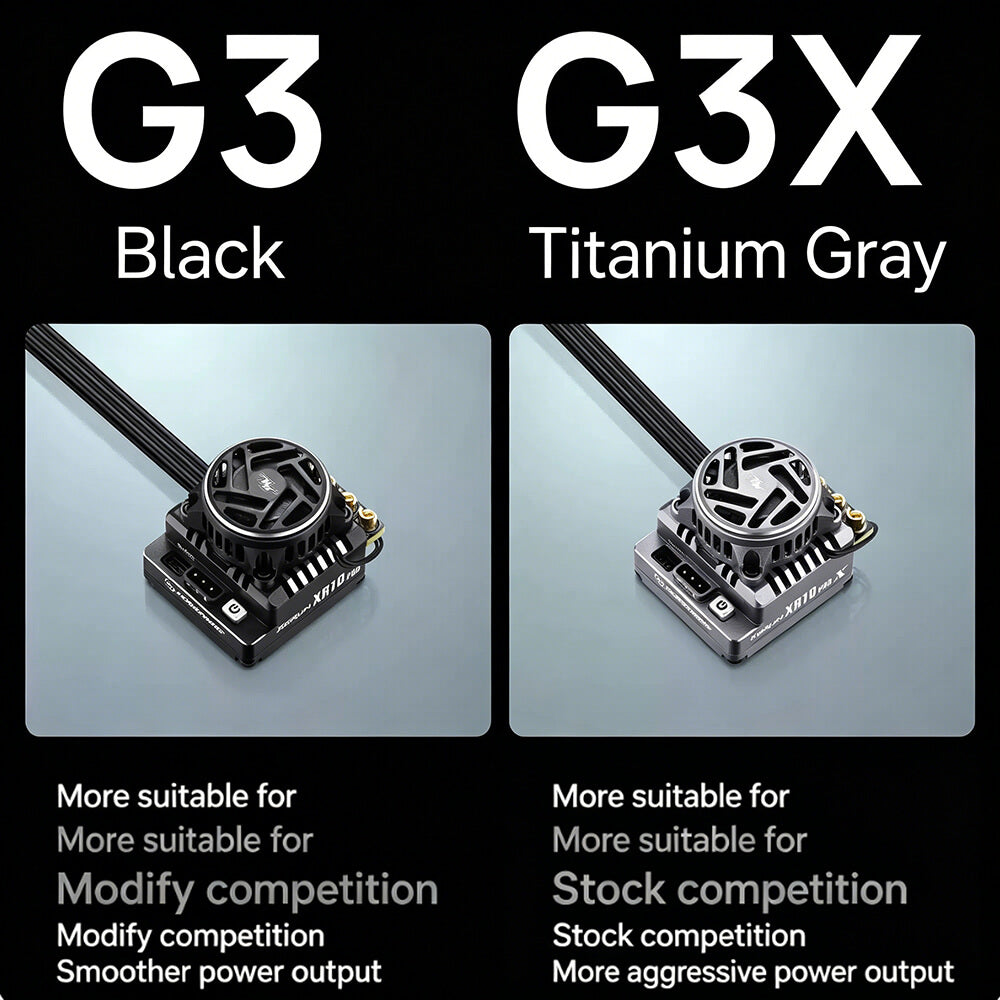

• G3 (Black) – Modified class, 13AWG wire

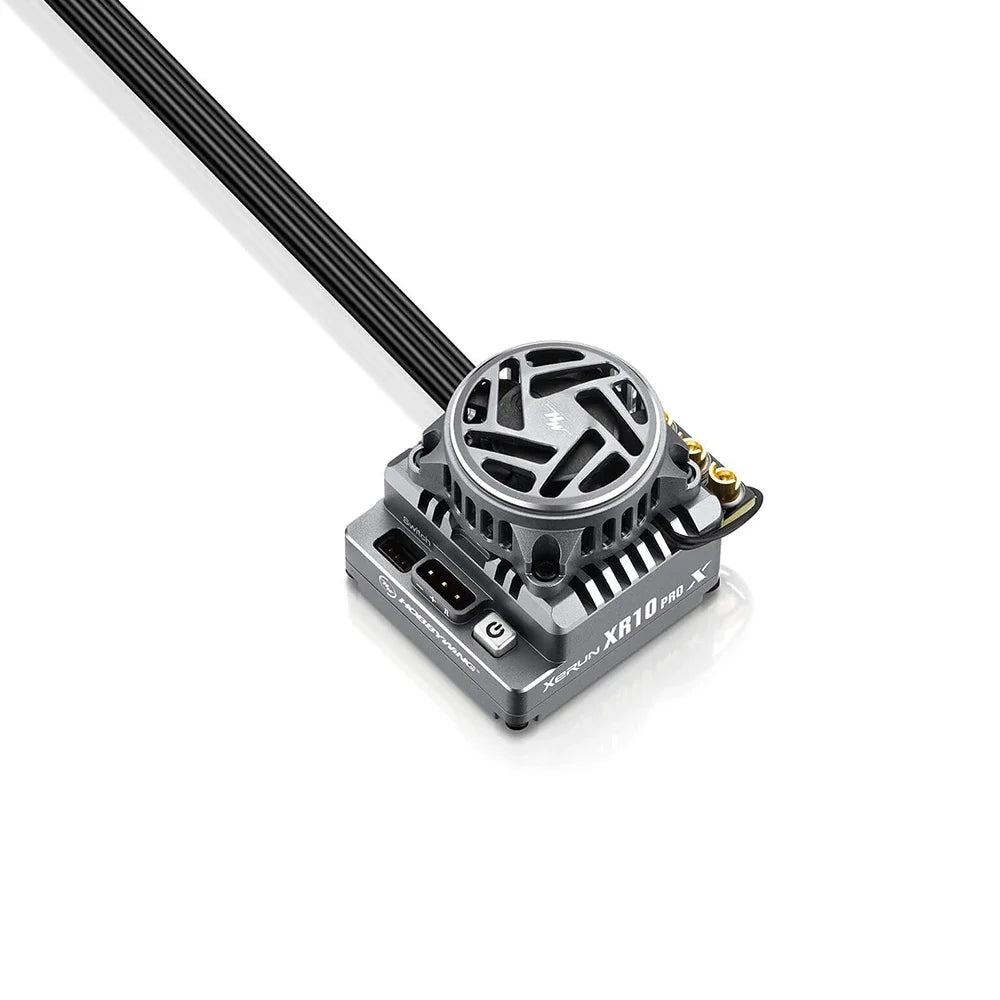

• G3X (Titanium Gray) – SPEC class, 12AWG wire

Key Features

• Reverse Polarity Protection (RPP) – Protects ESC from incorrect battery connection
• 3 Selectable Profiles – Customizable and renameable racing profiles
• Dual Parameter Mode – 24 Basic parameters and 44 Advanced parameters for precise tuning
• Disc Brake Mode – Close-loop brake control with Brake Force Curvature support; Linear/Traditional braking also available
• Freewheeling Function – Reduces operating temperature by approximately 15°C vs. XR10 Pro G2S
• RPM Decrease Rate Setting – Faster deceleration off throttle (requires Freewheeling enabled)
• Softening 2.0 – Adjustable initial driving force for different track conditions
• Built-in Data Logger – Up to 19 groups of 20-minute sessions (380 minutes total); reviewable via App with OTA Programmer or LCD Program Box Pro

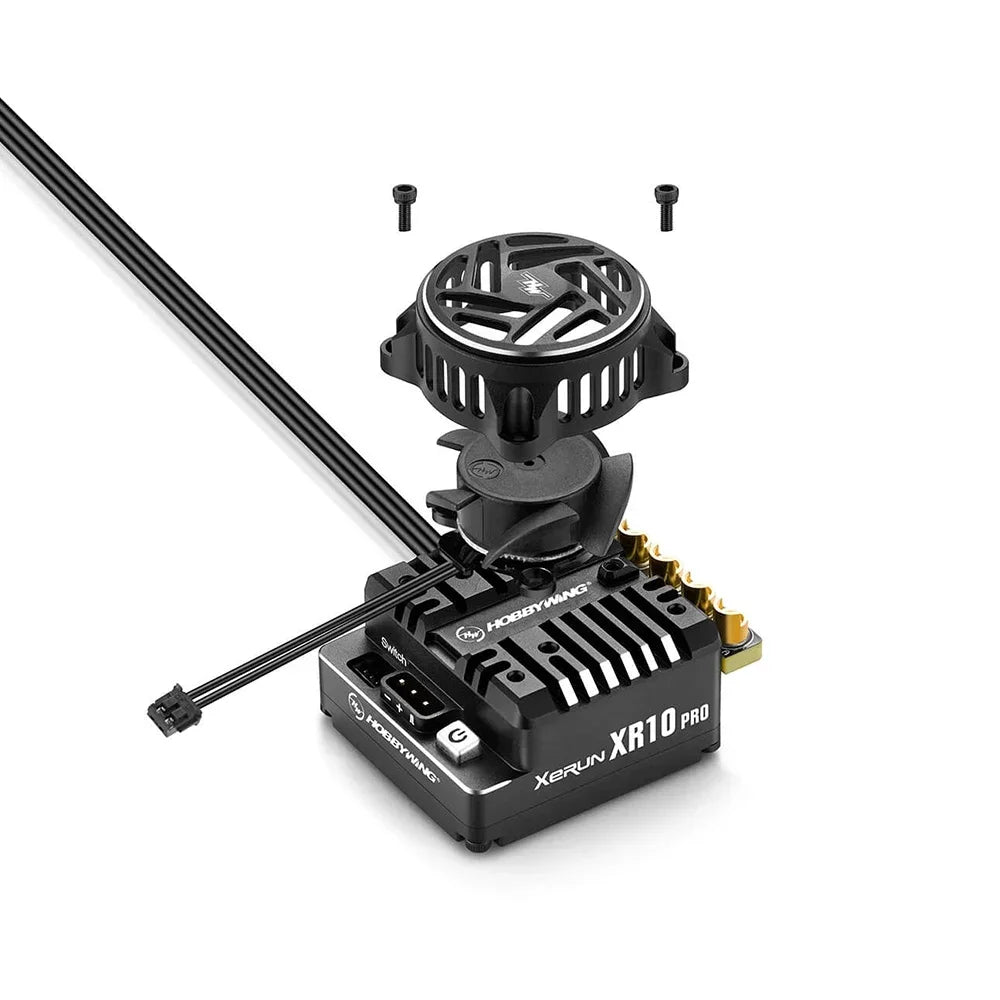

• Smart Fan Control – Auto start/stop function; new frameless fan with detachable assembly
• Low Profile Design – Overall height reduced by 2mm vs. XR10 Pro G2S
• Independent Programming Port – Can power external fan or connect to LCD Program Box Pro / OTA Programmer
• Internal Electronic Key Switch – External switch port supports optional external switch (sold separately)

ESC Specifications

Parameter	G3 (Modified)	G3X (SPEC)
Part No.	30112619	–
Continuous / Peak Current	160A / 1200A
Motor Type	Sensored / Sensorless Brushless
Battery	2S LiPo
BEC Output Voltage	5–7.4V adjustable (0.1V per step)
BEC Output Current	5A continuous / 10A peak (switch-mode)
Wire Gauge	13AWG ultra flex silicone	12AWG ultra flex silicone
Size	35.0 × 33.6 × 30.3mm (with fan & shroud)
Weight	93g (with wires)
Reverse Polarity Protection	Yes
Recommended Motor	Hobbywing V10 Brushless Motors (Modified)
Applications	Touring Car ≥ 4.5T; Buggy ≥ 5.5T; 3650 (540) size 2-pole motor

Combo Options

This listing also includes G3 ESC + brushless motor combo options. Select your preferred T rating above. G3 motor combos are available in 4.5T, 5.0T, 5.5T, 6.5T, 7.5T, and 8.5T. G4R motor combos are available in 13.5T, 17.5T, and 21.5T.

What's Included

• Hobbywing XR10 Pro G3 or G3X ESC (per selected option)
• 1 set U-type connectors
