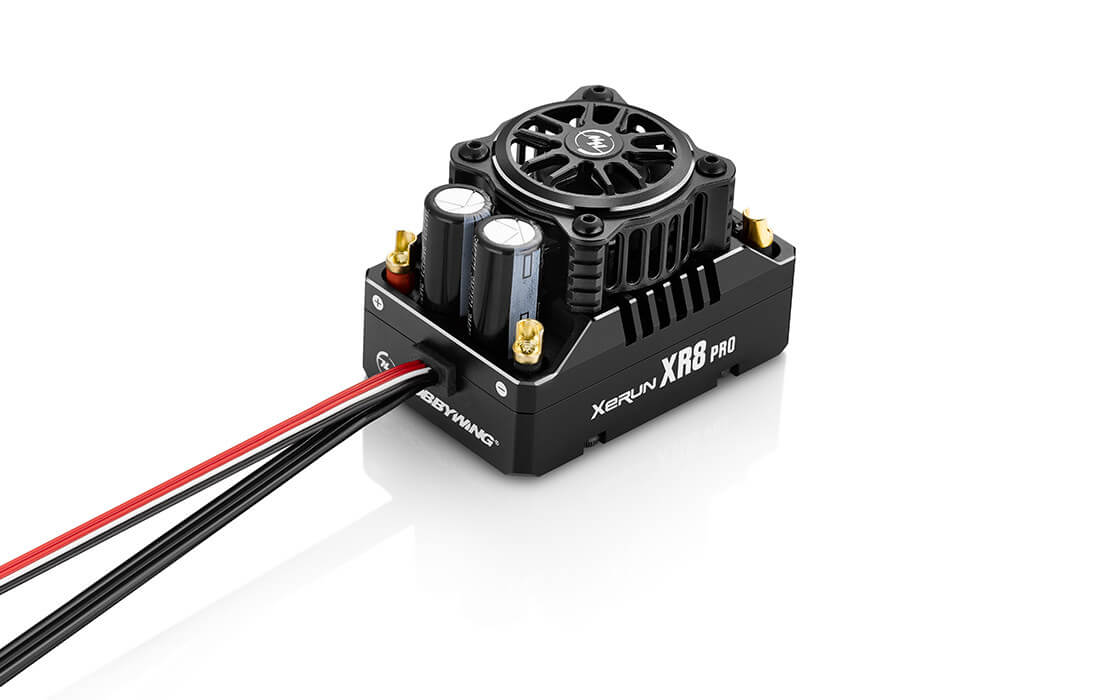

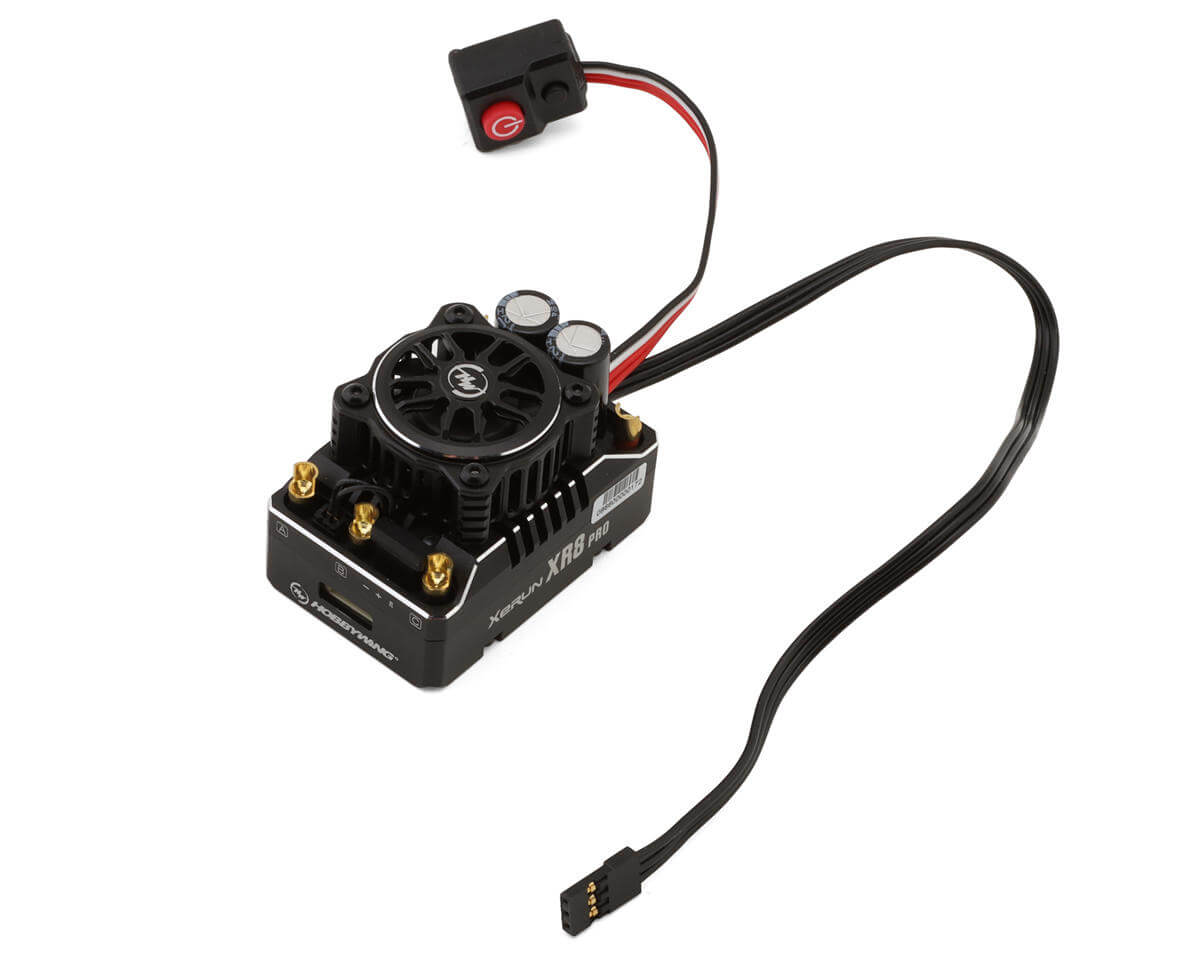

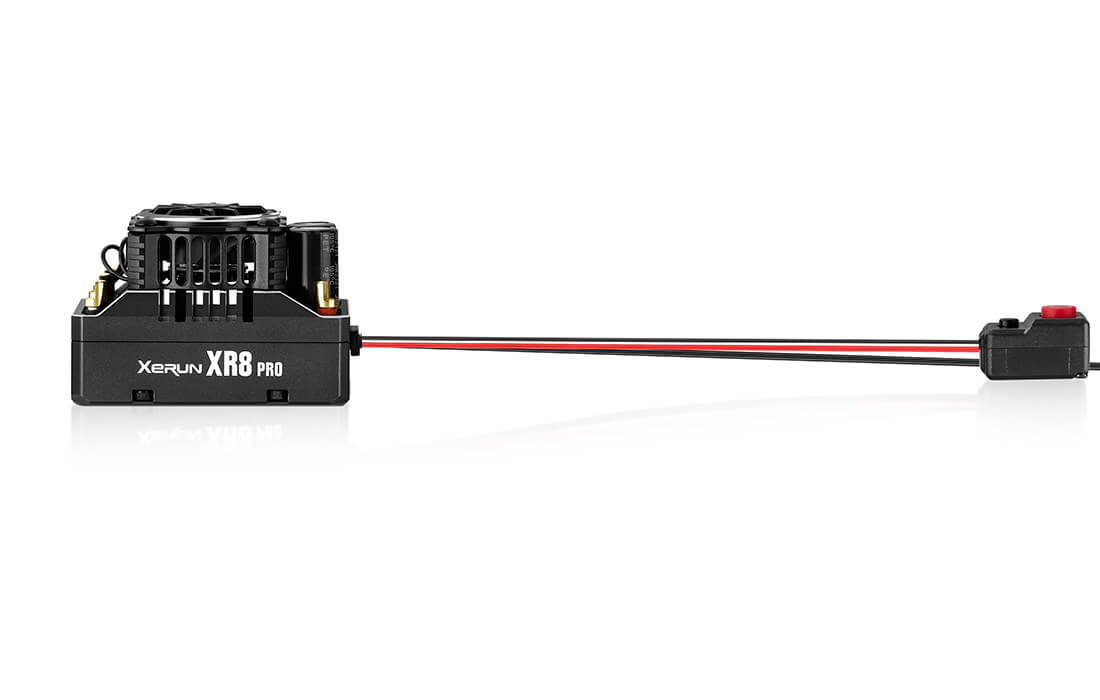

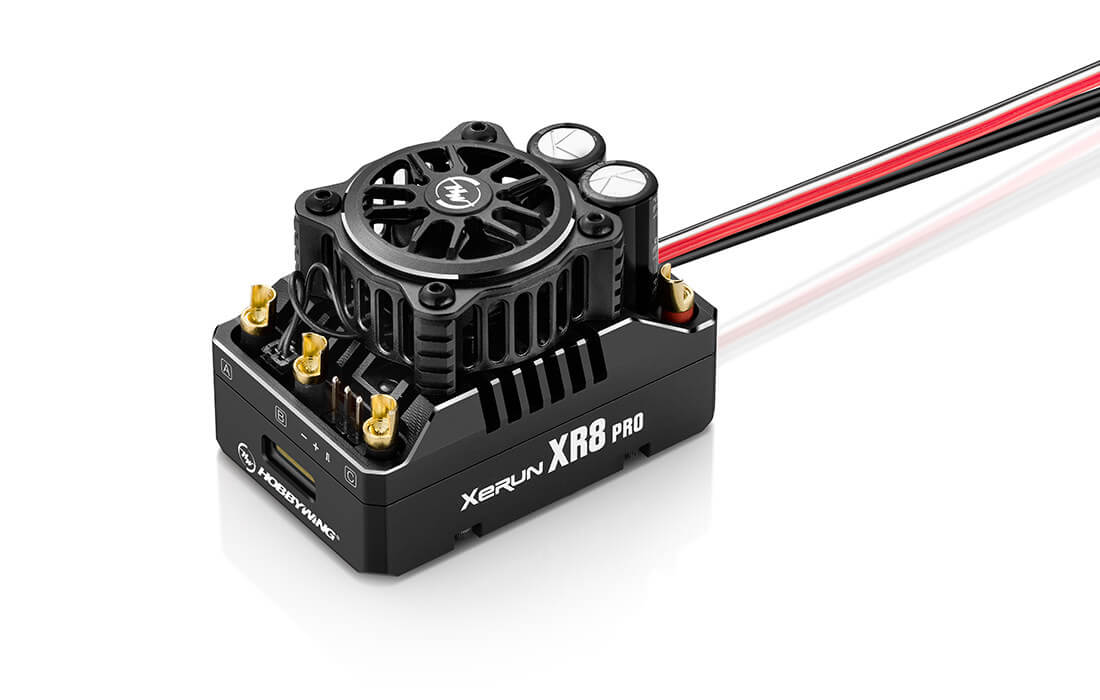

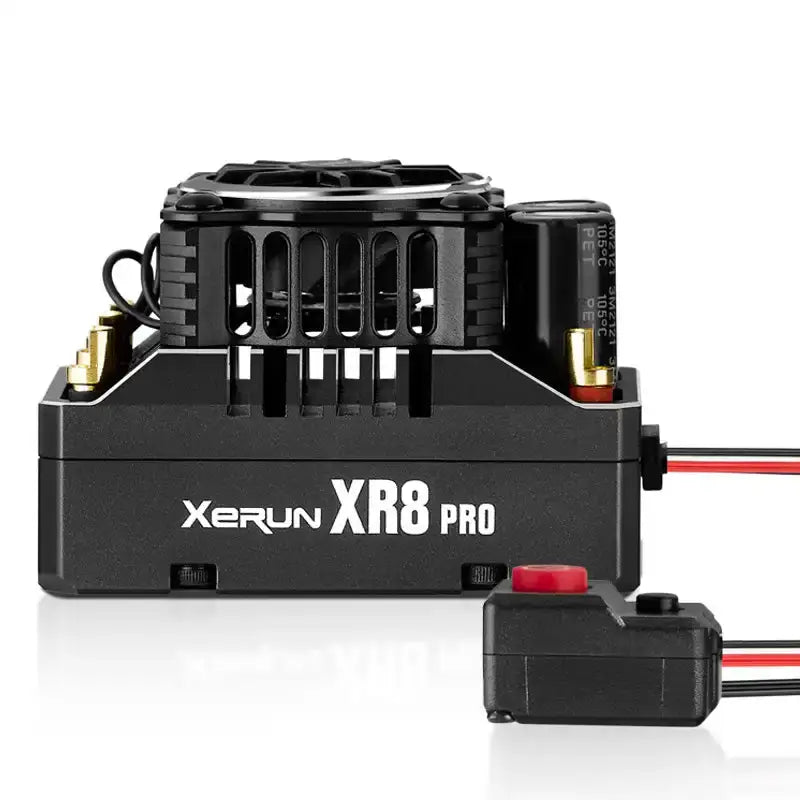

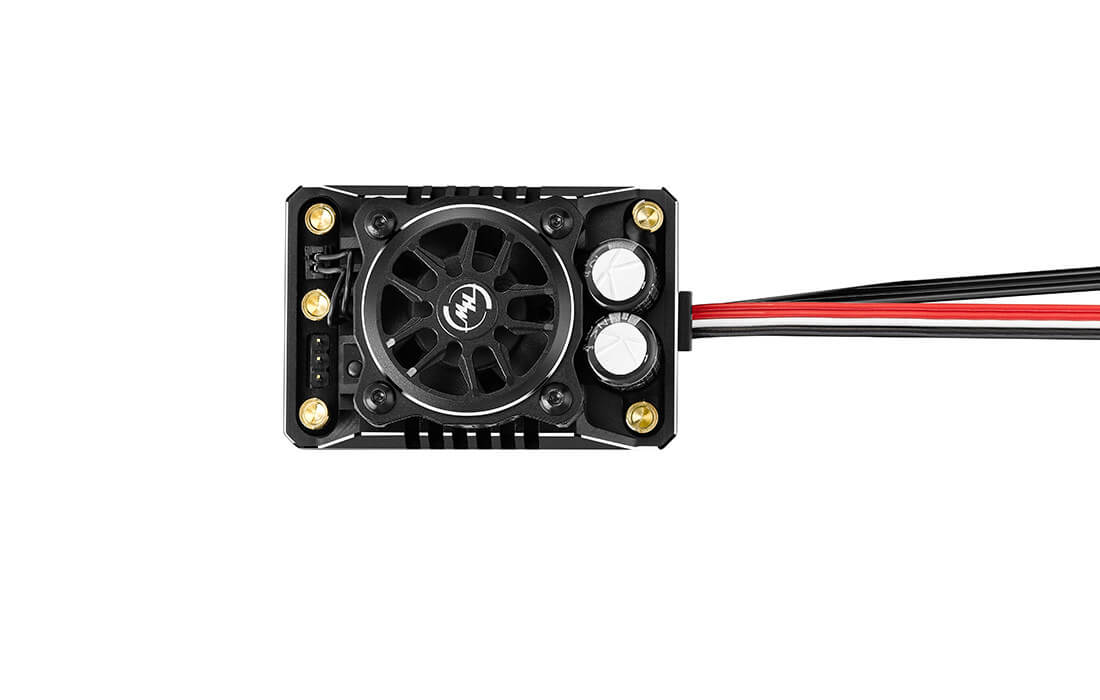

Hobbywing XeRun XR8 Pro G3 200A 2-4S Sensored Brushless ESC for 1/8 RC Buggy & Truggy

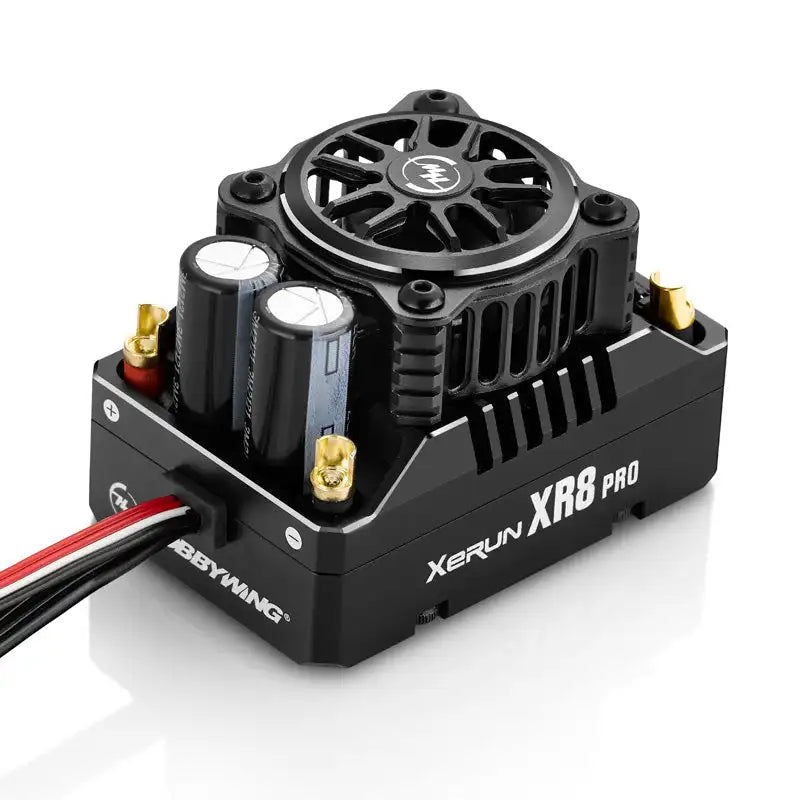

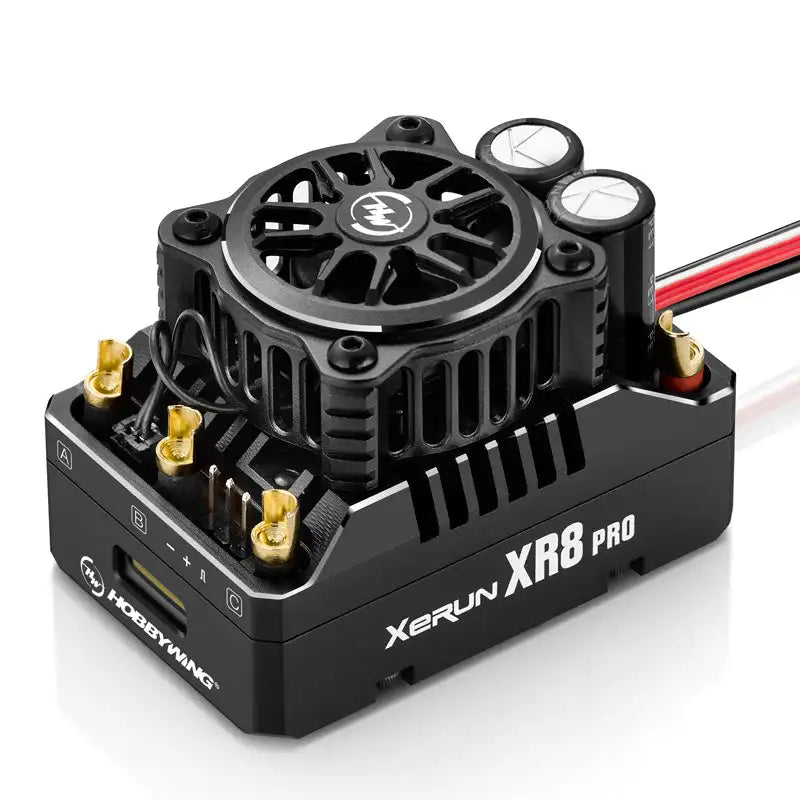

Hobbywing XeRun XR8 Pro G3 200A Sensored Brushless ESC

The XeRun XR8 Pro G3 is Hobbywing's 1/8 scale competition ESC built for off-road buggy, truggy, and short course truck racing. With 2-4S LiPo input, 200A continuous current, and advanced tuning features, it delivers the power and precision needed for serious racing.

Key Features

• Smart Freewheeling Technology – Higher drive efficiency and lower operating temperature; approximately 15°C cooler than XR8 Pro G2
• Advanced Boost & Turbo Timing – Supports up to 48 degrees of Boost and Turbo Timing for maximum performance
• Dual Brake Mode – Closed-loop torque brake (Disc Brake Mode) and traditional braking mode both available
• Reverse Polarity Protection (RPP) – Built-in circuit protects ESC from incorrect battery connection
• Real-time Data Recording – Supported via OTA module box (Bluetooth, effective range ~5m)
• Capacitor Thermal Protection – Helps prevent capacitor overload failure
• IP5X Dustproof Protection – Superior dustproof rating with protective fan cover included

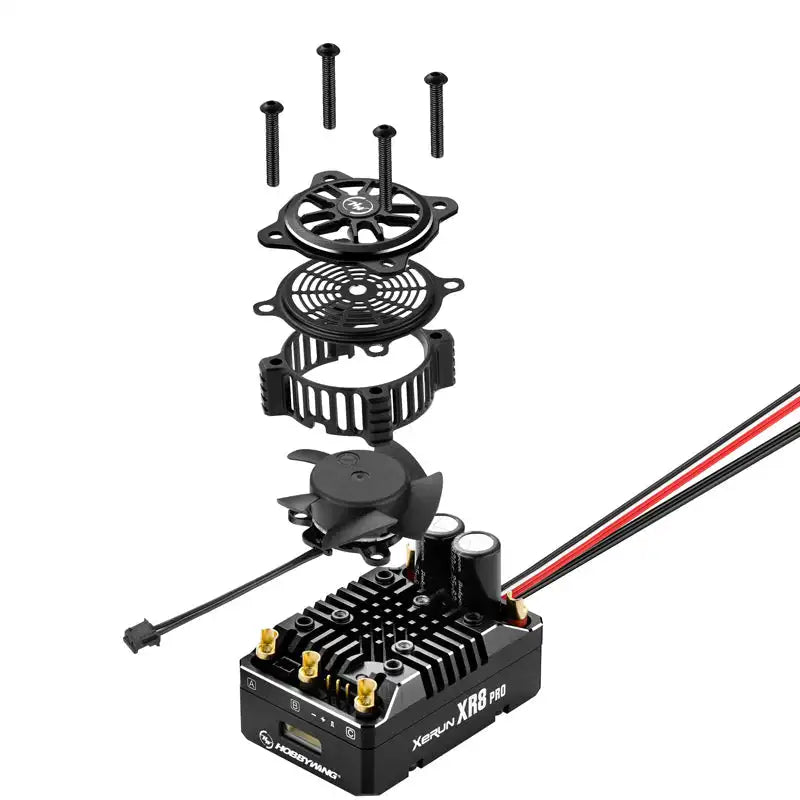

• Frameless Fan Design – Specially formulated fan blades resist damage from stones, sand, and debris
• Smart Fan Start/Stop – Auto fan activation at pre-set temperature; noise reduction and power saving
• 11AWG Ultra-Soft Silicone Wire – Custom wire for maximum flexibility and current handling
• Firmware Upgrade Supported – Keep your ESC up to date via OTA Programmer
• Independent Programming Port – Compatible with LCD PRO and OTA Programmer

ESC Specifications

Parameter	Specification
Product No.	30113400
Scale	1/8
Input Voltage	2-4S LiPo
Continuous / Peak Current	200A / 1080A
BEC Output	6V / 7.4V adjustable; 6A continuous (switch-mode)
Braking Mode	FOC / BLDC
Motor Limit	3S: KV≤4000 (3660 size); 4S: KV≤3000 (4268 size)
Motor Type	Sensored / Sensorless Brushless
Fan Size	30 × 30 × 10mm (frameless)
Fan Voltage	5–8.4V, powered by BEC
Input / Output Wire	11AWG ultra-soft silicone, 200mm
Size (L×W×H)	54.8 × 38.8 × 36.8mm
Weight	102.8g
Waterproof	No (IP5X dustproof)
Firmware Upgrade	Supported via OTA Programmer
Reverse Polarity Protection	Yes

Compatible Applications

• 1/8 off-road buggy and truggy racing
• 1/10 short course truck and monster truck (1/10 applications require 3660 size motor on 3S LiPo)
• Compatible motors: 4268 / 3660 size brushless motors

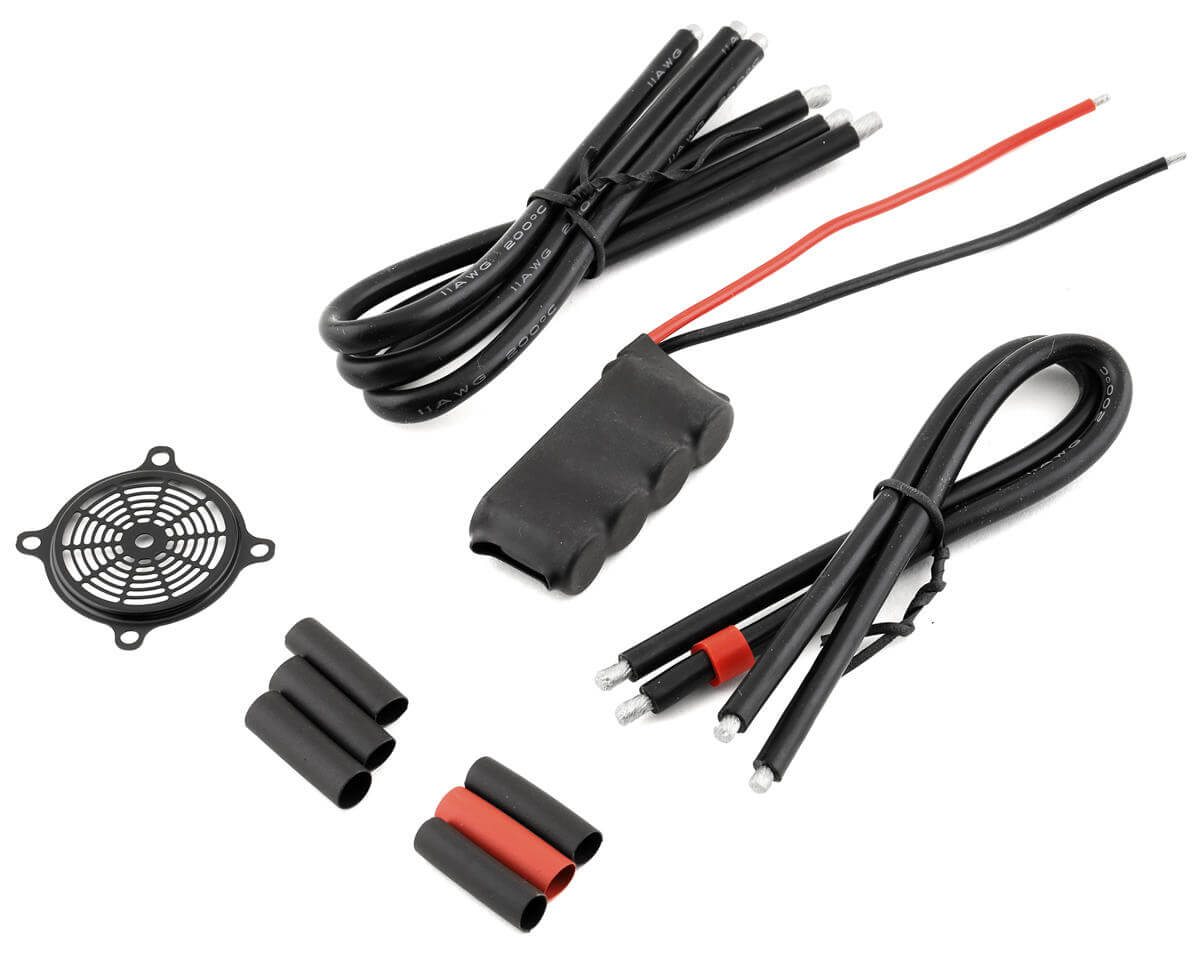

What's Included

• Hobbywing XeRun XR8 Pro G3 ESC
• Factory decals and accessories

Note: Use appropriate settings provided by the factory or team drivers. Monitor operating temperature during use. Incorrect settings may damage the ESC or motor.

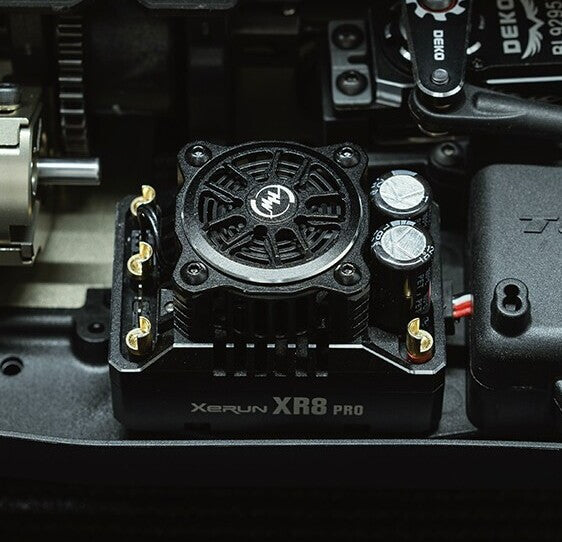

XERUN XR8 PRO G3 Continuous/Peak Current 200A/1080A. Motor Type: Sensored/Sensorless Brushless Motors. Applications: 1/8 Off-road, On-road & 1/10 Short course truck, Monster truck. The XeRun XR8 Pro G3 keeps a compact 54.5 x 36.5 x 36.6mm footprint with an integrated cooling fan for tight 1/8-scale installs. The XR8 Pro G3 delivers up to 50% increase in performance and is recommended for use with Hobbywing 4268/4274 G3 motors. The XeRun XR8 Pro G3 ESC offers accurate linear output for braking force, while also retaining traditional braking modes to accommodate drivers' preferred control styles. The Hobbywing XeRun XR8 Pro G3 ESC features real-time data recording for voltage and current, allowing you to monitor its operating status including ESC and motor temperature readings. The fan does not activate when the temperature is low. The intelligent start/stop function reduces noise and conserves power; the fan turns on automatically when temperature rises to the pre-set value. Equipped with a built-in reverse polarity protection circuit, this ESC provides added safety and prevents damage in case of accidental polarity reversal. The XR8 Pro G3 ESC features capacitor thermal protection, which prevents the capacitors from overheating and potentially causing permanent damage. The XeRun XR8 Pro G3 ESC features IP5X dustproof protection, providing reliable protection in all environments. Includes a small protective cover to enhance fan protection.
