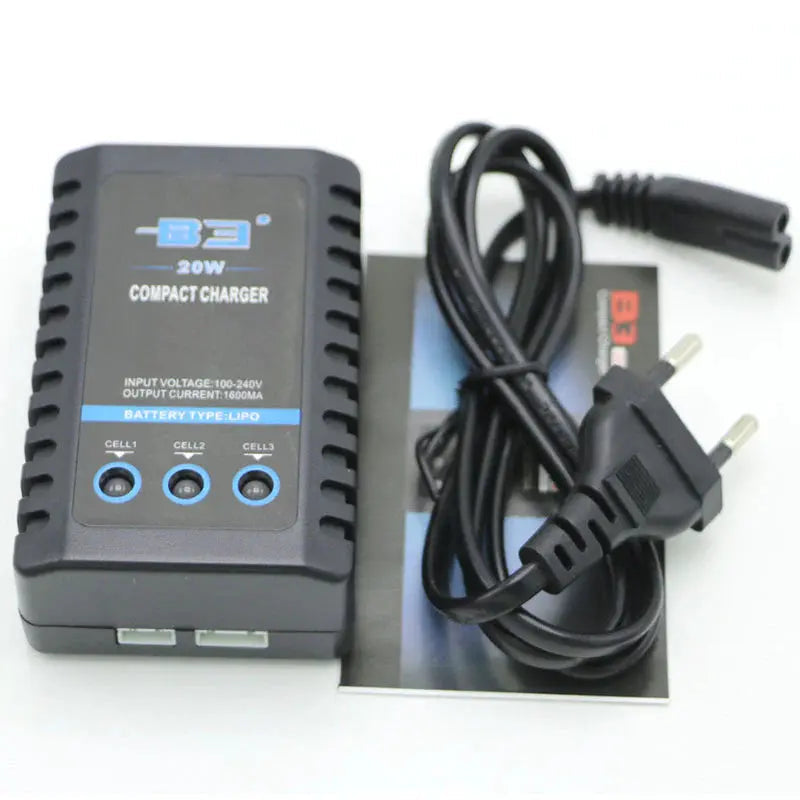

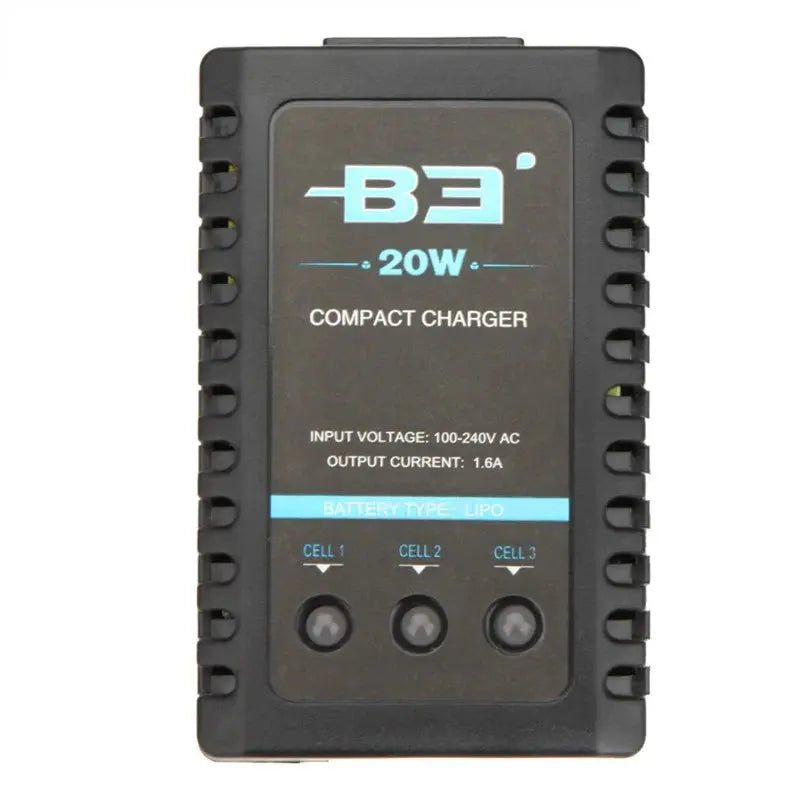

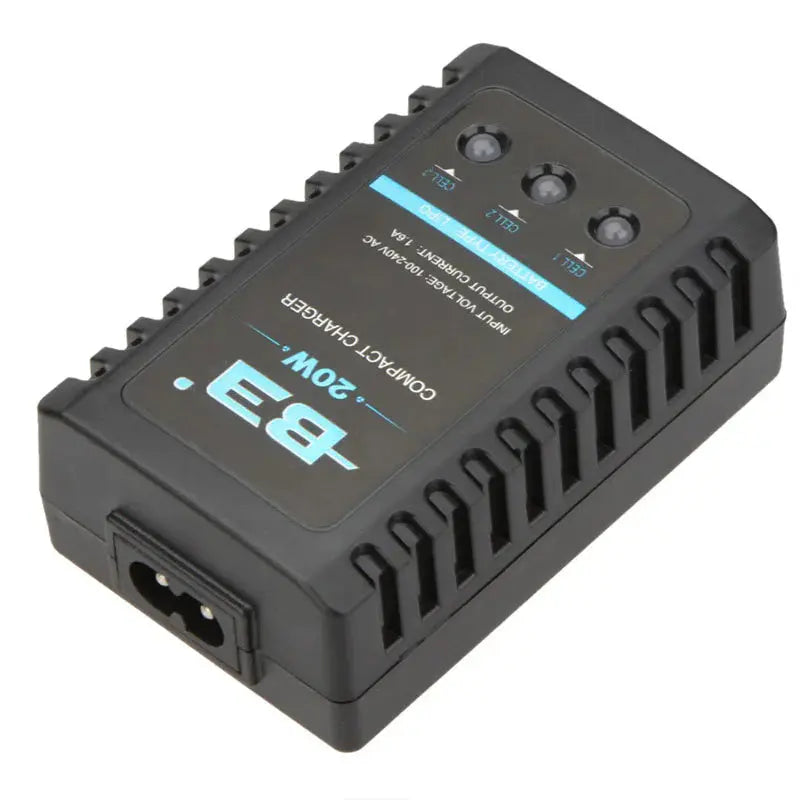

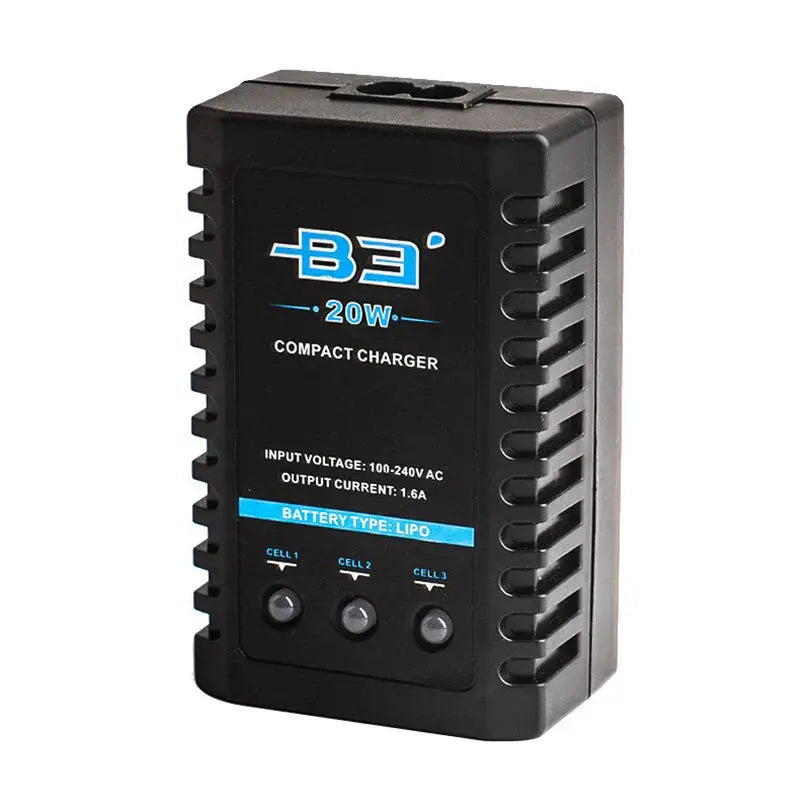

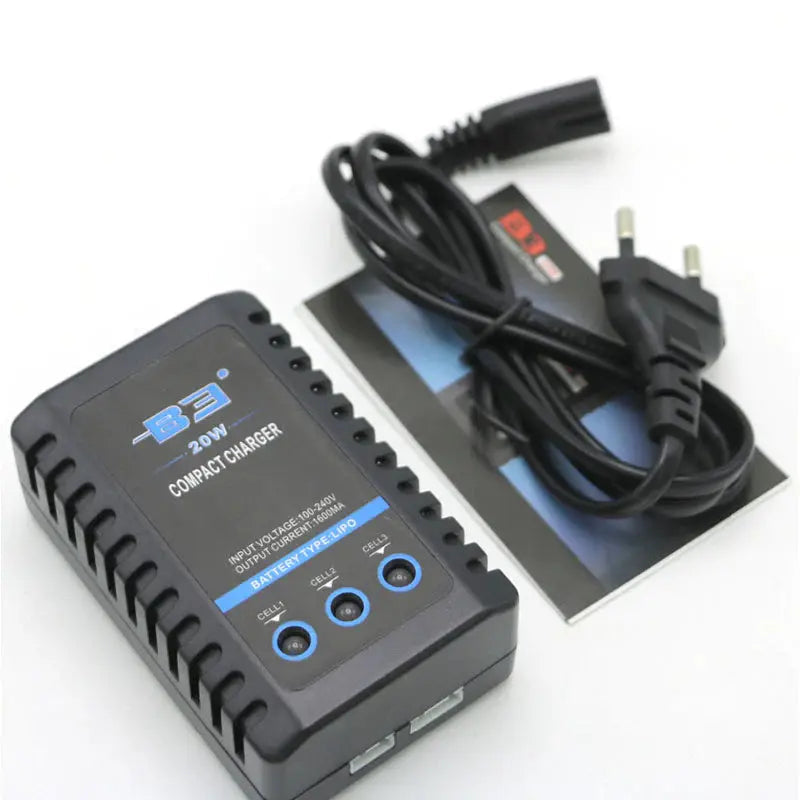

IMAX RC B3 20W Pro 10W Compact Balance Charger for 2S 3S 7.4V 11.1V Lithium LiPo Battery

Specifications:
Charging power: 20W
Charge current: 1.6A
Balance charging current: 1600mA
Power Input Voltage: AC 110 to 240V,50/60Hz
Power Output: 20 Watts
Battery Type: LiPo 2S- 3S (Series)
Size:Approx. 91 x 58 x 35 mm
Cable length:Approx.1.4 m
Wet weight:154 g
Package weight:194 g

Features:
*100% brand new and high quality
*With the development of electric technology, we have a new design of easy compact balance charger for 2 and 3 cells LiPo battery fast charging with wide AC input.
*A internal 100-240V AC switch power is built in, and the high precision balance circuit can supply larger current up to 1600mA per cell.
*Double colour LED can display the process of charging (RED: charging; YELLOW: full).
*This charger is compact and light, especially there is separated corresponding balance port for each battery pack.
*Compact and light balance charger for 2 to 3 cells of Li-Po battery.
*High precision balance circuit can supply balanced current up to 1600mA per cell.
*The balance function ensures charging safety.
*Safe and convenient.
*High quality and stable performance.
*Suitable for Li-Po battery only.

Charging instructions:
1. The charger is connected to the power supply and the indicator light is orange
2. During charging, the indicator light is red
3. When the lithium battery is fully charged, the indicator light is orange
4. In the 7.4V lithium battery charging, only the Cell2 and Cell3 indicators are bright red.
When the 11.1V lithium battery is charged, all three indicators are bright red.

Note:
Battery power 1%-10%: low battery input, avoiding high current damage to the battery
Battery power 10%-75%: fast charging mode, 1600mA current for smart charging
Battery power 75%-95%: pulse mode, balanced charging of the battery
Battery power 95%-100%: The battery reaches saturation and automatically stops charging
*Please do not simultaneously charge 2s and 3s on the charger, the capacity of the battery is recommended to use other chargers.

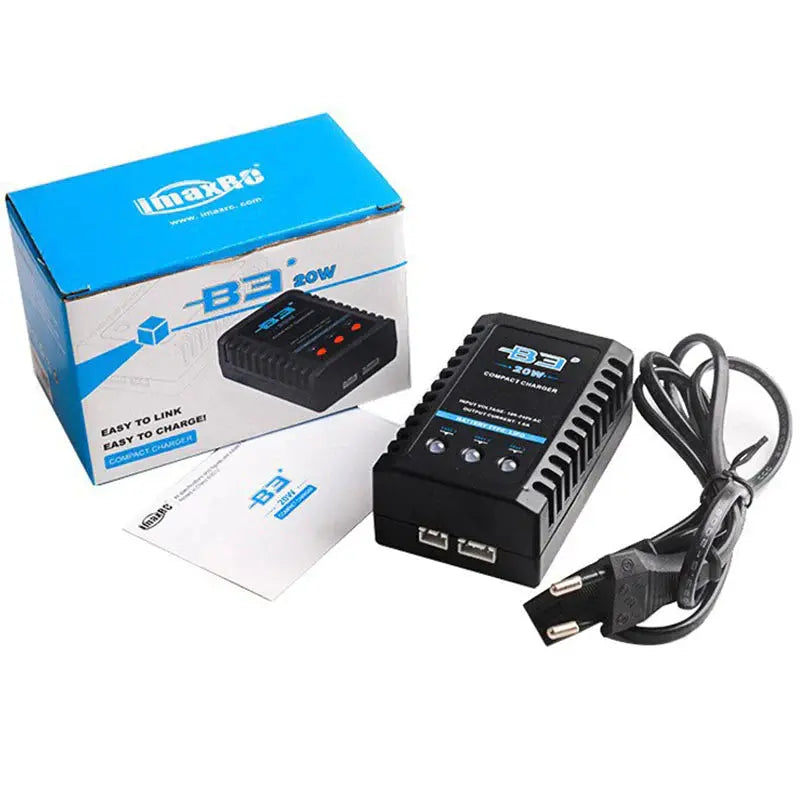

Package including:
1 * Imax B3 balance Charger
1 * Power Cable
