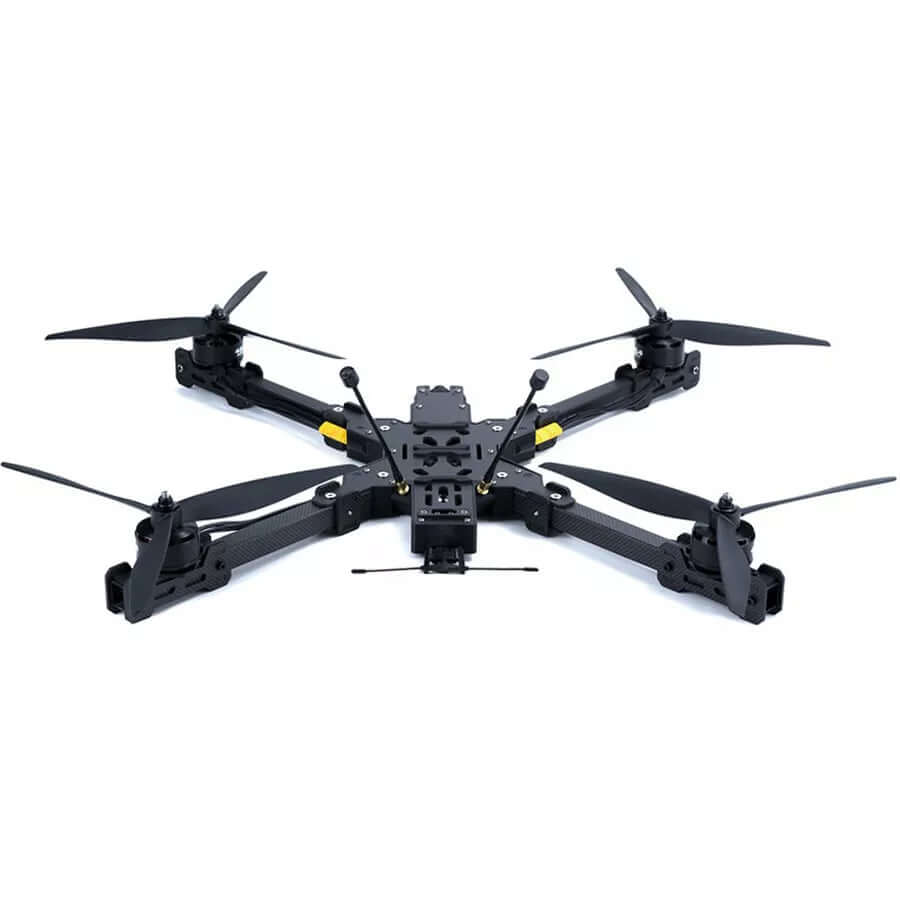

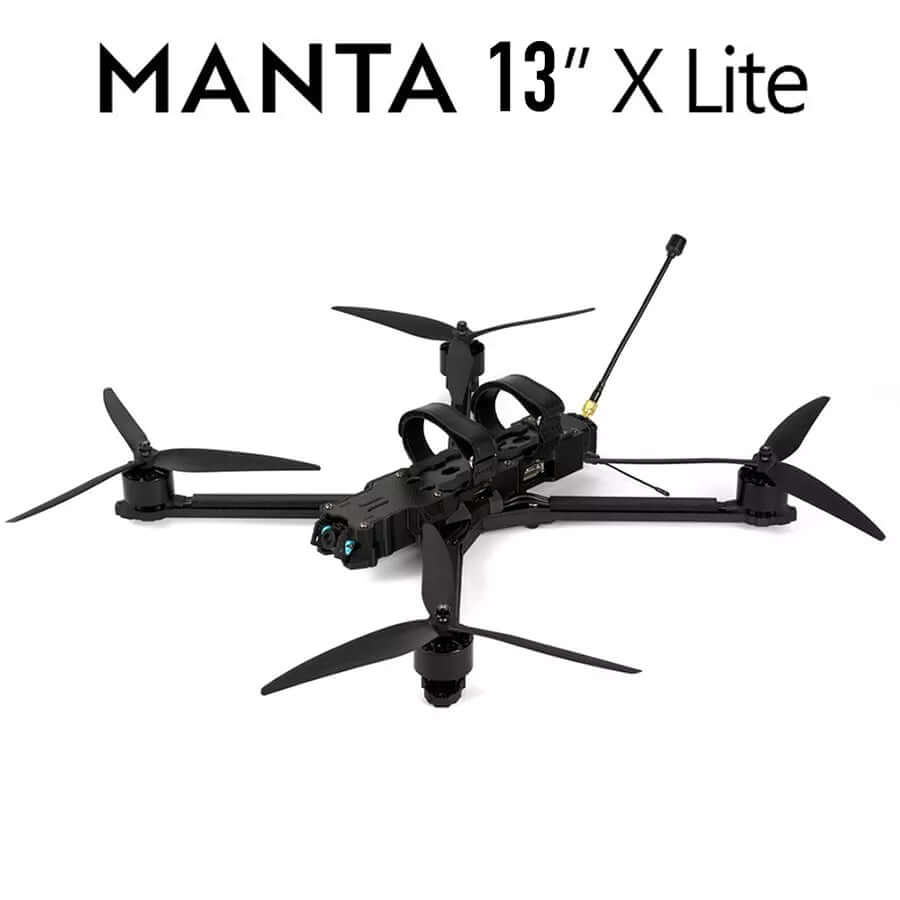

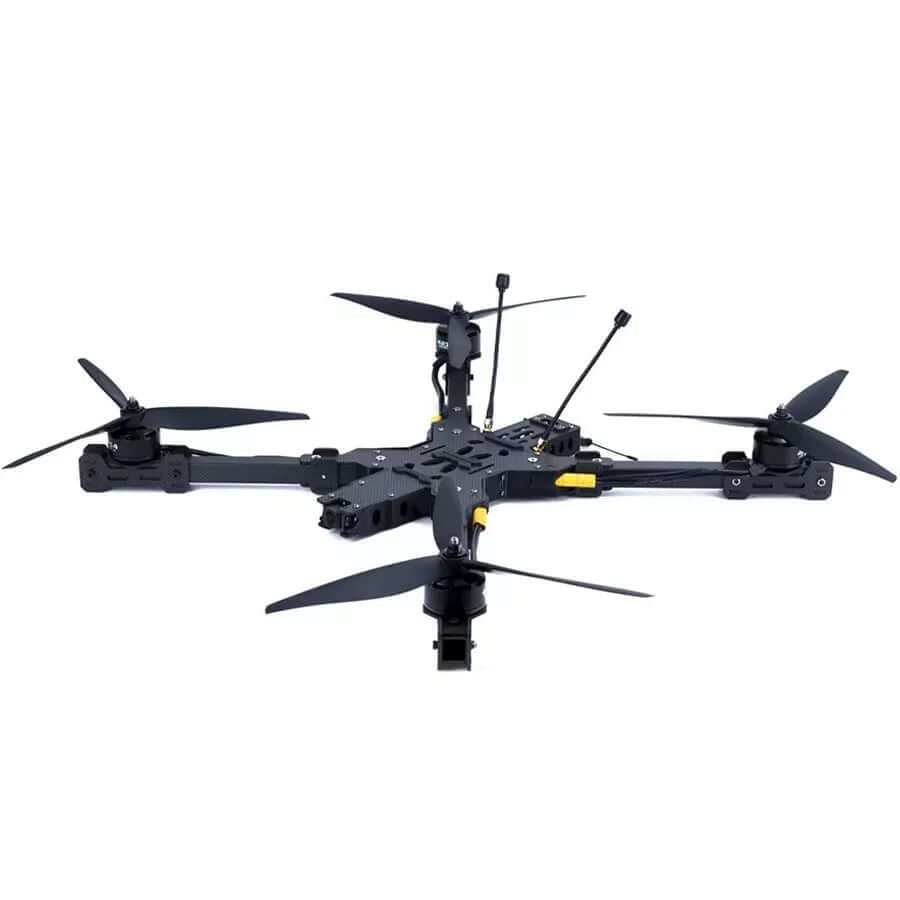

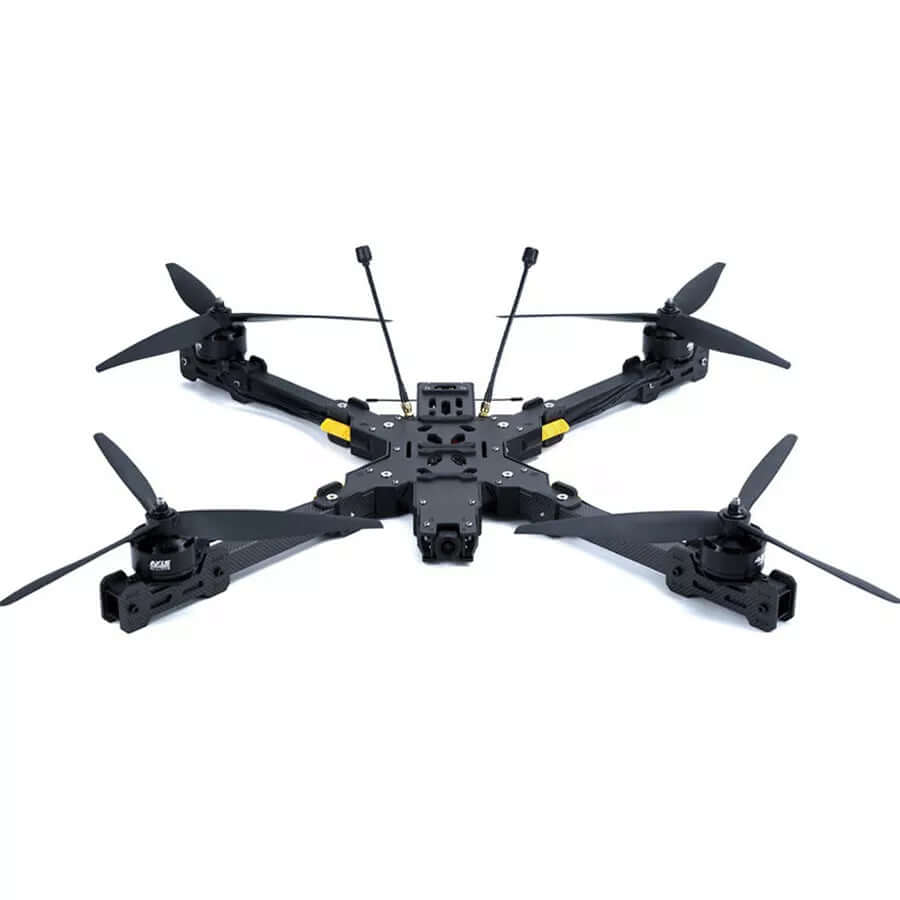

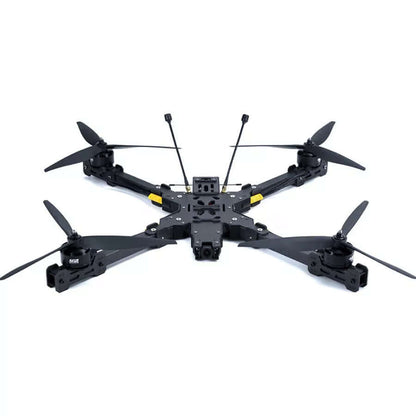

Axisflying MANTA 13X Lite 13inch FPV Drone DJI O3 Long Range 5.8G 3W VTX Long Distance Kit BNF/PNP

The MANTA 13X Lite FPV Drone Kit is built for long-range and endurance-focused pilots. Featuring a lightweight 13-inch carbon frame, it supports DJI O3 HD systems and includes the Axisflying 5.8GHz 3W VTX for unmatched signal range and penetration. Ideal for cinematic exploration, freestyle power loops, and DIY builds.

Product parameters:
Product name: Manta 13 X Lite
Structure: True X
Wheelbase: 600mm
Lower plate thickness: 3mm
Upper plate thickness: 3mm
Carbon plate material: T700
Arm size: 20mm*20mm*294.3
Camera width: 20mm
Flytower installation hole: M3*30.5mm
Image transmission hole distance: M2*20/25.5mm M3*30.5mm
Propeller installation size: 13inch Motor hole: M4x30mm
Body weight: about 2.8KG

Configuration:
Motor: 4214-380KV
Recommended battery: Lipo 8000mAh 8s
Propeller: 13inch
Flytower: Argus 80A +F722
Image transmission: DJI 03 or Axisflying 5.8G
Payload: 3.5 ~ 6kg
Flying Time: With Load Flying Time 8-15min
No Load: 25min
Flying Distance: 10km
Max Speed: 120km/h
Max Altitude: 5000m

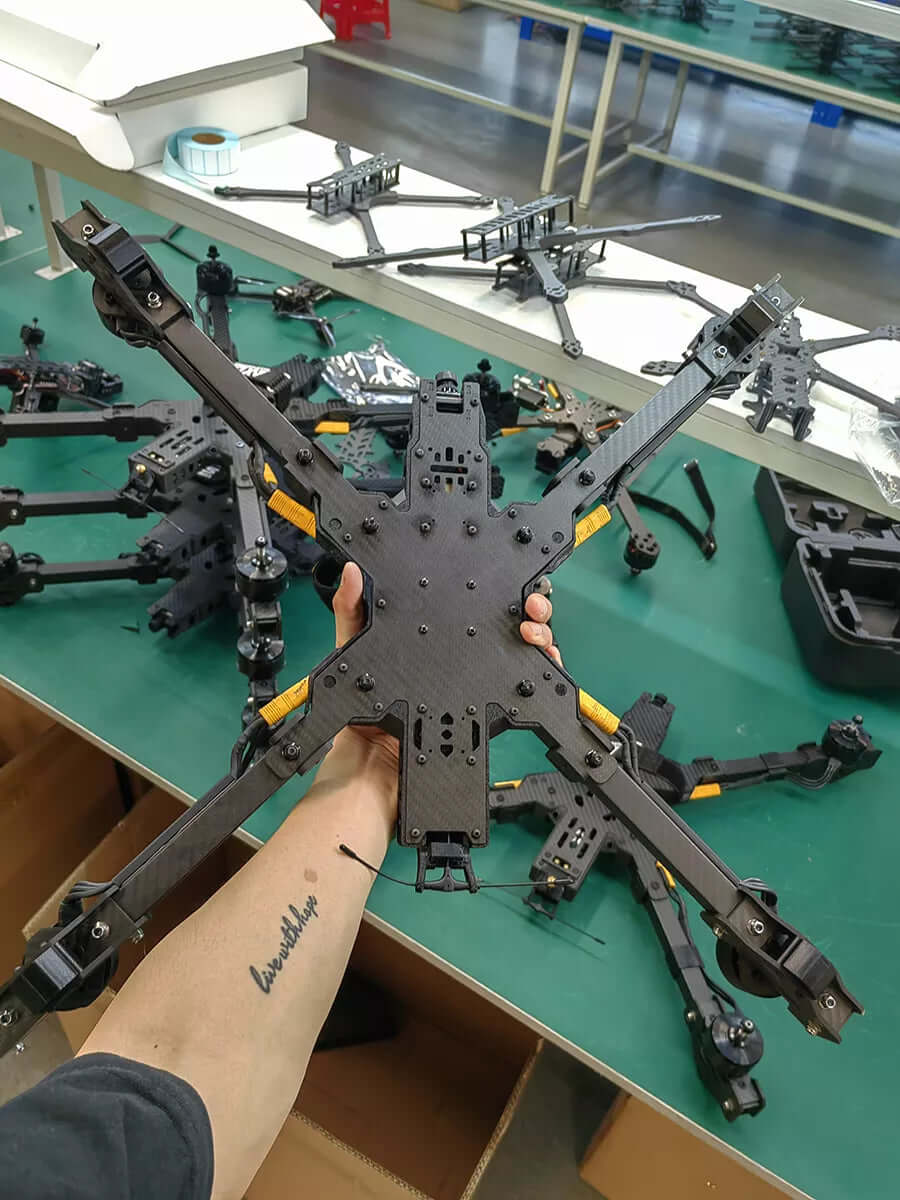

Frame: 13-inch Carbon
Structure: True X
Wheelbase: 600mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 3mm
Carbon Plate Material: T300/T700
Height of Electronic Device Layer: 20mm
Arm Size: 20mm*20mm*294.3
Camera Spacing: 20mm
Stack Mounting Hole: M3*30.5mm
VTX Mounting Hole: M2*20/25.5mm M3*30.5mm
Propeller Installation Size: Max 13 inch
Motor Mounting Hole: M4 x 30mm

Motor: 4214 380 KV
KV Value: 380KV
Operating Rated Voltage: 6-8S
No-load Current: 2.8A/20V
Phase Resistance: 48mΩ
Motor Weight: 246g
Maximum Current: 60A
Maximum Power: 1760 W
Maximum Thrust: 4850g
Motor Size: Ф49x32.5mm

Flight Control: F722
MCU: STM32F722RET6
Gyroscope: ICM42688
Barometer: DPS310 or SPL06
Blackbox: 16 M
On-Screen Display: AT7456
BEC: 5V2A ,9V2A
Input Voltage: 12-50V(3-6S Lipo Recommended)
Firmware: Betaflight
Number of Serial Ports: 6 Groups
Supported Motors: M1 M8
Weight: 40.6x40.6x9.8mm
Size: 19.6g
Mounting Hole Spacing: 30.5mm/M3

ESC: 80A 8S
Firmware Name: QH 40_24_V0.19.2
Current Ratio Value: 200
Input Voltage: 8S
Continuous Current: 80A
Burst Current: 90A
ESC Telemetry: Not supported
BEC: Not supported
Size: 57*56*6mm
Mounting Hole Spacing: 30.5*30.5mm
Weight: 28g

Camera: B19 Product Manual Cam 1500TVL
Model: HD 1500TVL (upgraded version, with OSD tuning board)
Image Sensor: 1 / 3′CMOS
Pixels: 1500TVL
Lens: 2.1mm
Signal System: PAL / NTSC (adjustable via OSD)
Signal-to-Noise Ratio: ＞ 60Db（AGC OFF）
Electronic Shutter Speed: PAL: 1 / 50-100.000, NTSC: 1 / 60-100,000
Electronic Shutter: PAL: /50 - 100,000; NTSC: 1/60 - 100,000
Automatic Gain Control (AGC): Low / Medium / High
Backlight Compensation (BLC): Yes
Minimum Illumination: 0.001Lux / 1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B&W
Power Supply: DC 5V-30V

Image transmission VTX: 5.8G 40CH 3W
Model: DJI O3 / Axisflying 5.8G (Optional)
Supported Voltage: 7-28V
BEC: 5V / 500mA
Transmission Power: 25mW / 13.95dBm; 2500mW / 34.04dBm
Antenna Interface: MMCX
Output Power: PIT / 25 / 2500mW
Standard 40 Channels: A / B / E / F / R
Video Transmission Protocol: SmartAudio
Mounting Holes: 20X20.M2
Size: 25mmX37mmx6.5mm
Weight: 19g

Antenna: 5.8G RHCP 150MM
*The whole is made of imported PC+ABS material which can withstand high strength impact
*Impact resistant double-sheathed semi-rigid cable
*Root reinforcement design, 360 ° protection

RX: ELRS 915MHz
Processing Chip: ESP8285
RF Chip: SX1276IMLTRT
Power Input: 5V
Operating Current: 100mA
Operating Protocol: CSRF
Receiving Frequency Range: 915MHz or 868MHz
Size: 12mm12mm3mm
Weight: 0.6g (without antenna)
Antenna Connector: IPEX1
Telemetry Output Power: <17dBm
Firmware Update Method: WIFI

Propellers: Gemfan Prop 1308
Type: 1308
Blades: 3
Material: Fiberglass Nylon
Pitch: 8 inch
Center Hole lnner diameter: 6mm
Weight/g: 39g

Package weight: 2.8kg
Package size: 35.5*35.5*16cm

Note: Batteries and transmitters are not included in the package
