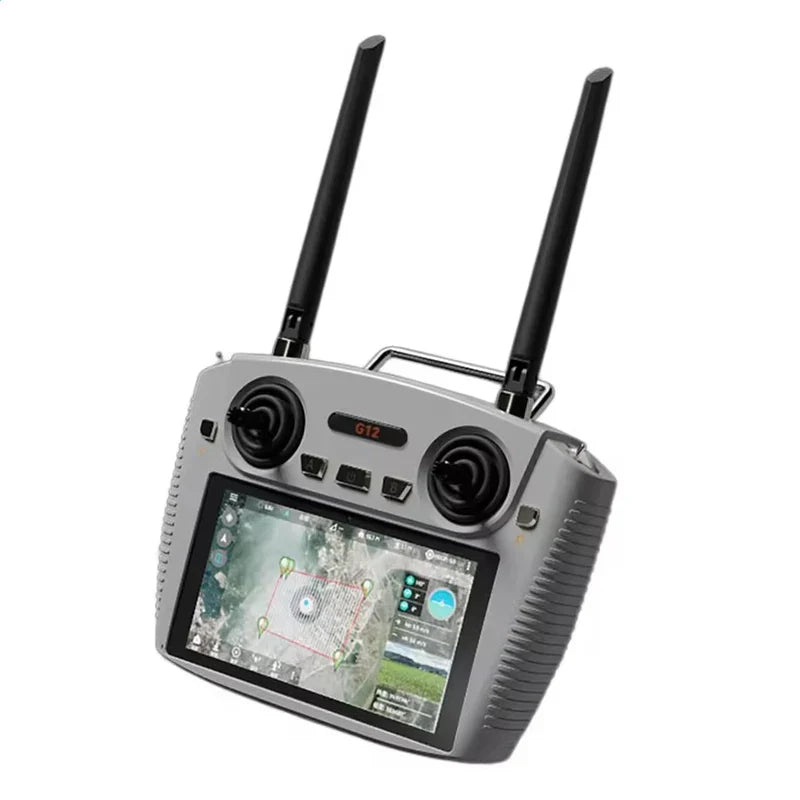

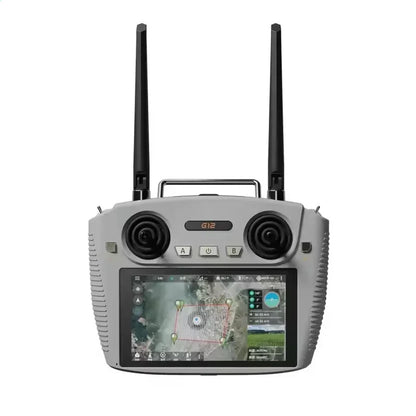

Skydroid G12 Remote Control Dual Band 5.5inch 1080P High-Definition Display 20KM Digital Image Transmission

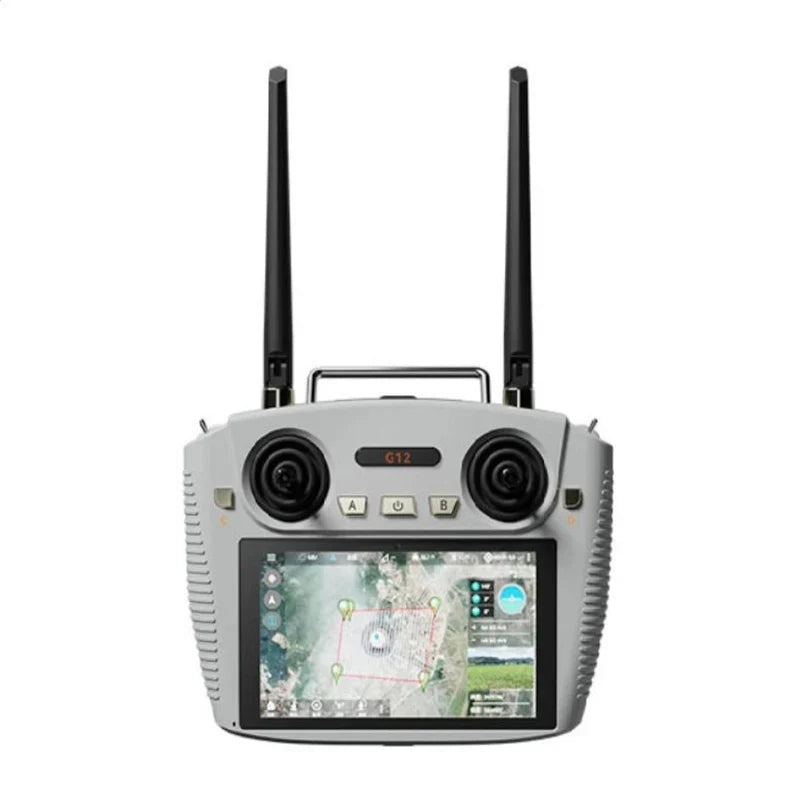

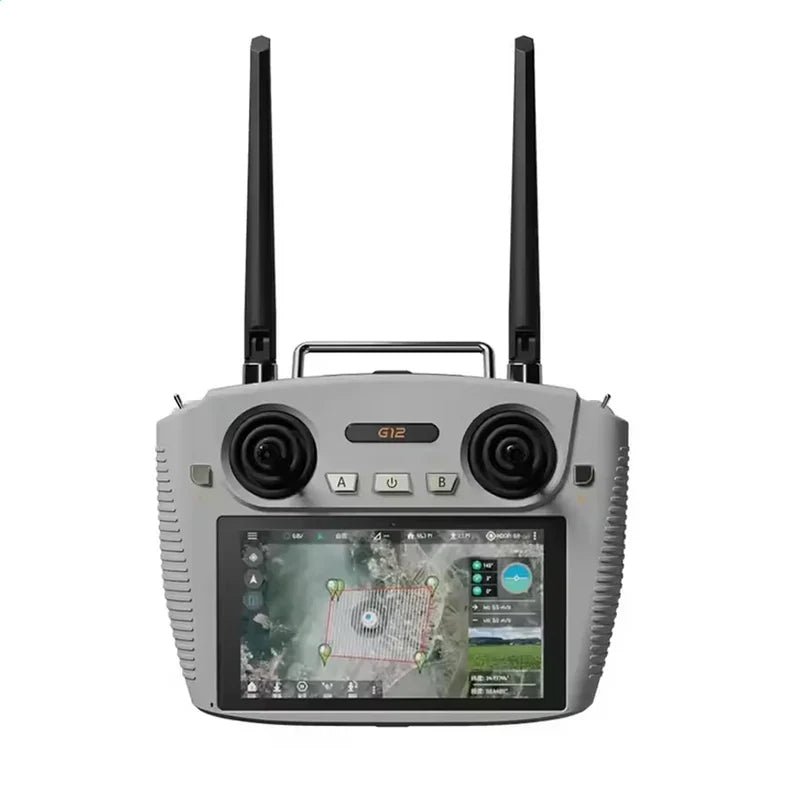

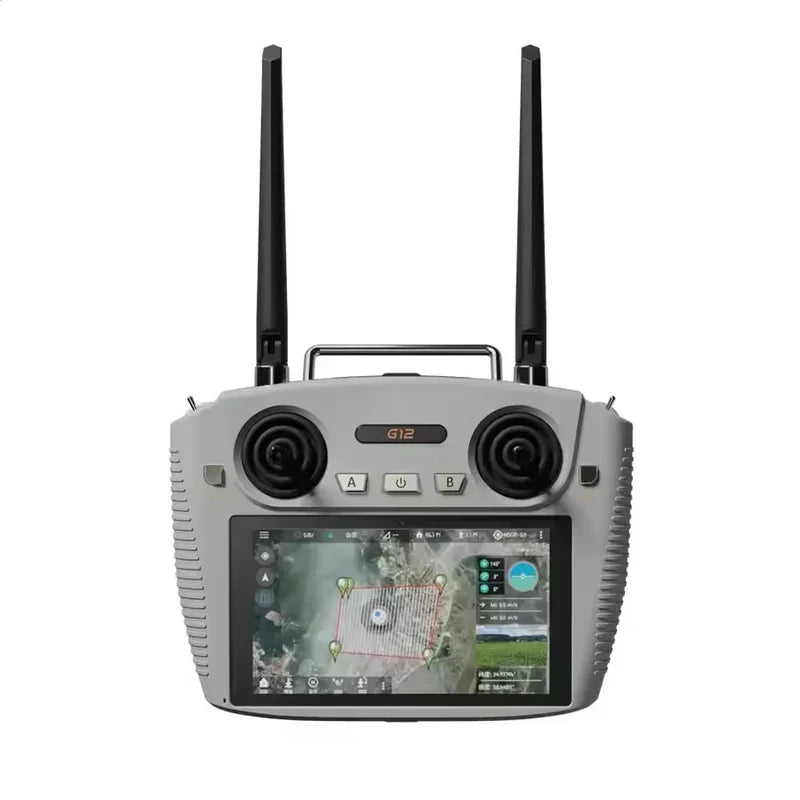

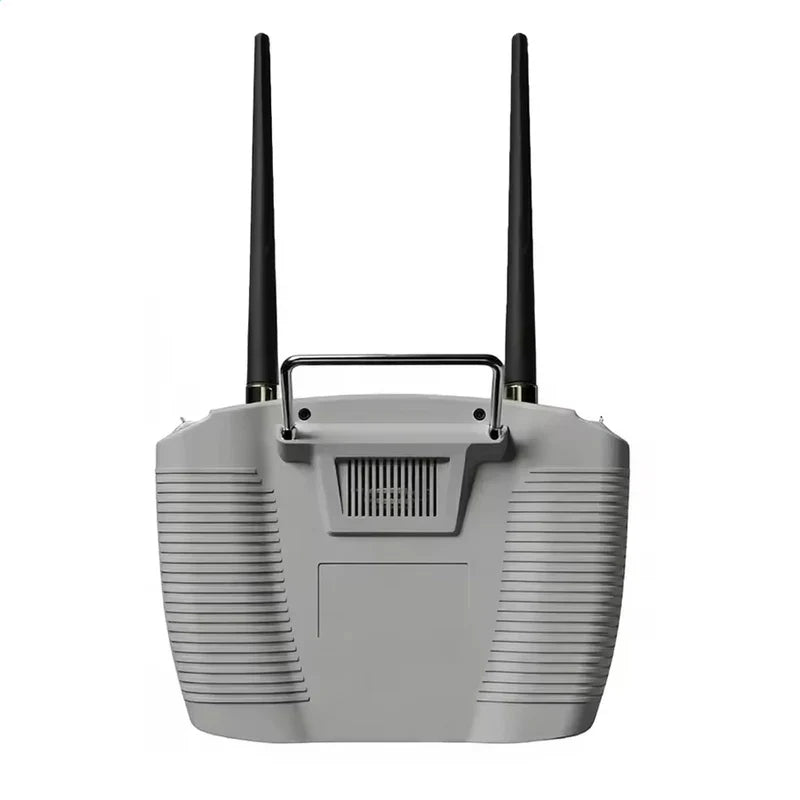

Skydroid G12 Remote Control — 20KM Dual-Band 5.5” 1080P All-in-One UAV Ground Station

The Skydroid G12 is a compact yet powerful all-in-one remote control + image transmission + data link ground station built for industrial drone operations. Featuring a 5.5-inch 1080P high-brightness display (1000 nits), a Qualcomm 6nm processor, and the latest Android 13 OS, the G12 delivers smooth hardware decoding for 4K H.264/H.265 video, responsive performance, and seamless ground station app integration. It supports dual-band 2.4GHz/5.8GHz adaptive switching, a transmission range of up to 20KM, and an ultra-light body (683g), making it ideal for portable, professional UAV missions. The G12 is powered by a 10,000mAh battery with up to 8 hours of runtime and fast-charging via USB Type-C. With rich I/O including serial ports, USB, SIM card slot, SBUS, and PWM, the G12 is fully compatible with cameras, pods, and gimbals such as the Skydroid C10 Pro, C12, and C20.

Key Features

• Qualcomm Android Platform — Equipped with a Qualcomm 6nm processor and Android 13, the G12 enables stable operation of ground control applications and 4K video decoding via H.264/H.265. Optimized for real-time mission planning, video display, and intelligent UAV control
• 20KM Digital Wireless Transmission — Integrates Skydroid’s proprietary high-definition transmission technology, combining control, data, and video into a single high-efficiency signal stream with adaptive frequency band switching to minimize interference
• Dual-Band 2.4GHz / 5.8GHz Auto-Switching — Automatically switches between 2.4GHz and 5.8GHz to adapt to complex flight environments, enhancing signal stability, transmission efficiency, and anti-interference performance

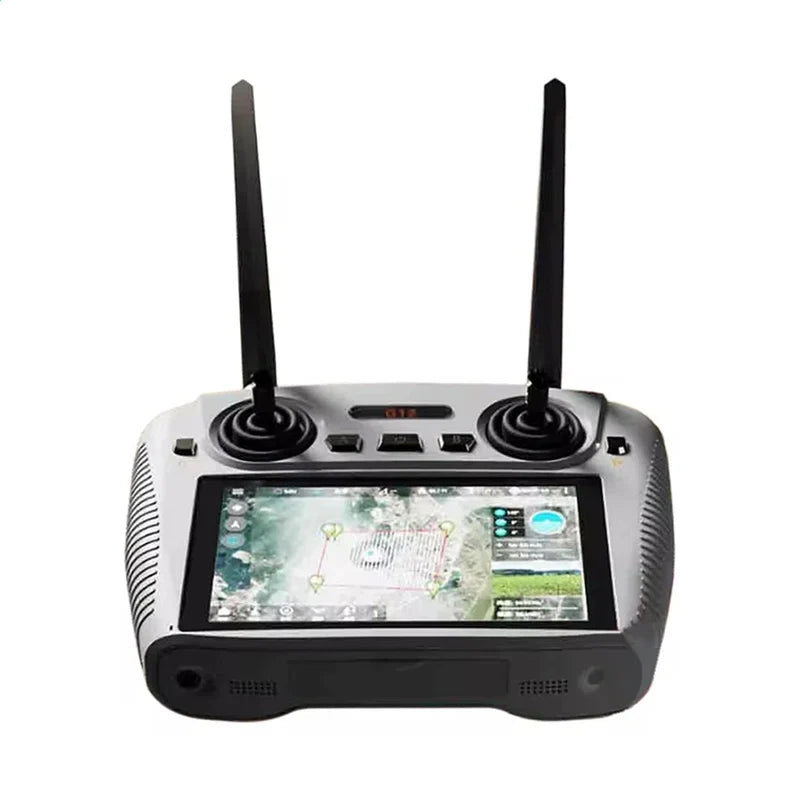

• 5.5” 1080P High-Brightness Touchscreen (1000 nits) — 1920×1080 FHD display with 1000 nits brightness ensures optimal visibility even in direct sunlight — perfect for field operations requiring reliable ground station data and HD video clarity
• Long Battery Life — Up to 8 Hours — Integrated 10,000mAh lithium battery with efficient hardware platform ensures power stability during long missions; supports 36W PD fast-charging via Type-C
• Optimized Ground Control Software — Built on the TOWER platform with intuitive UI, enhanced map viewing, intelligent waypoint planning, automatic execution and following, one-click return-to-home, and support for third-party ground station development

Skydroid G12 Remote Control Specifications

Parameter	Specification
Display	5.5-inch 1080P High-Brightness (1000 nits)
Resolution	1920 × 1080
Processor	Qualcomm 6nm
OS	Android 13
RAM / ROM	4GB / 64GB
Battery	10000mAh
Runtime	4–8 hours
Charging Interface	Type-C, 36W PD Fast Charging
Size / Weight	194.3 × 282.2 × 94.9mm / 683g
Frequency Band	2.4GHz / 5.8GHz Dual Band
Remote Distance	5–20KM (visual, ground-to-air)
Dynamic Frequency	Automatic Frequency Hopping
RF Power	23dBm @CE/FCC
Operating Temperature	-10°C to 55°C
External Interfaces	USB, Type-C, SIM Slot, Serial, SBUS, PWM

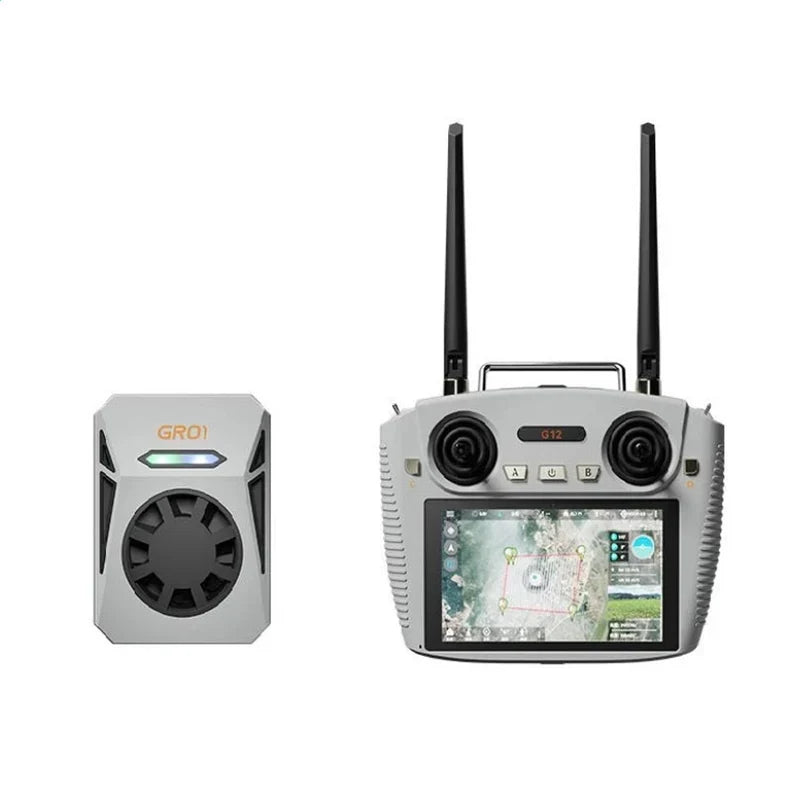

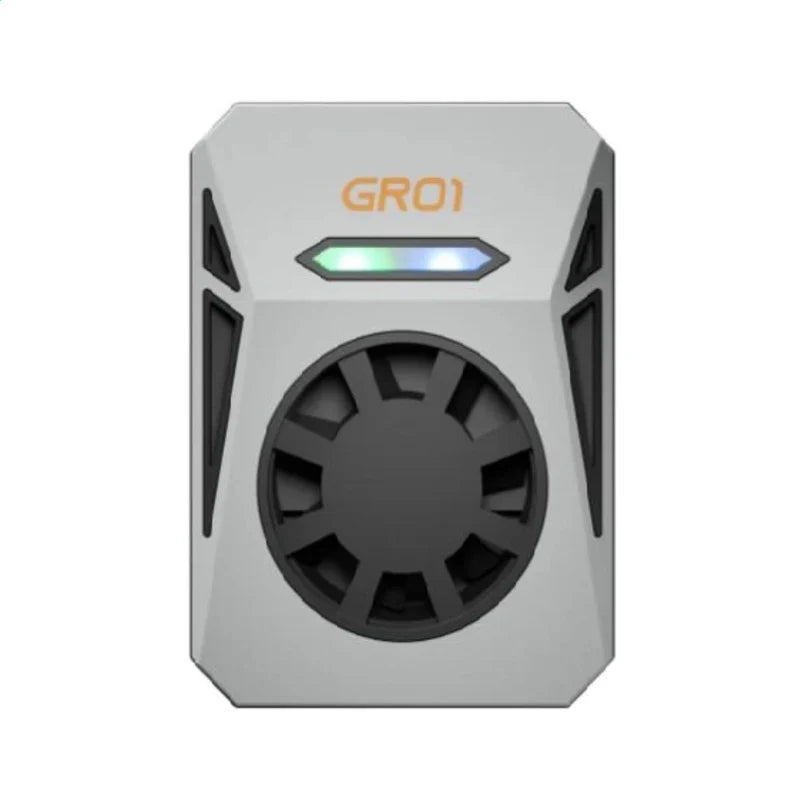

GR01 Receiver Specifications

Parameter	Specification
Frequency Band	2.4GHz / 5.8GHz Dual Band
Supply Voltage	7.2–72V (XT30)
Operating Current	12V / 300mA
Serial Baud Rate	57600 / 115200 / 921600
Data Port / Speed	1 Channel, 200Kbps–160Mbps
SBUS Output	1 Channel
PWM Output	3 Channels
Network Port	1 Channel
Channel Bandwidth	1.25MHz to 40MHz (selectable)
Operating Temperature	-10°C to 60°C
Dimensions / Weight	45.5 × 60 × 21.5mm / 37g

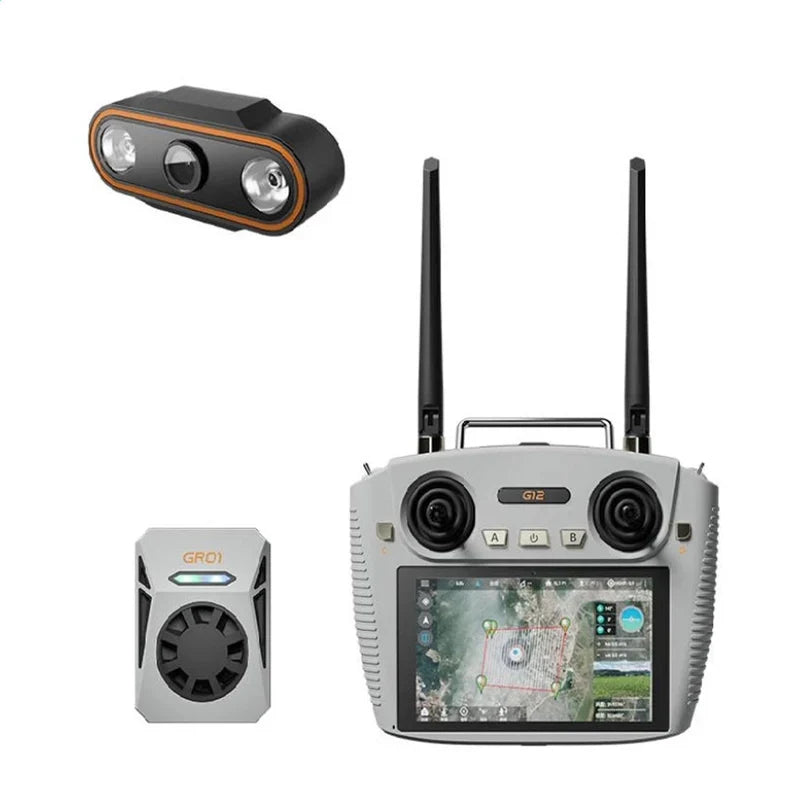

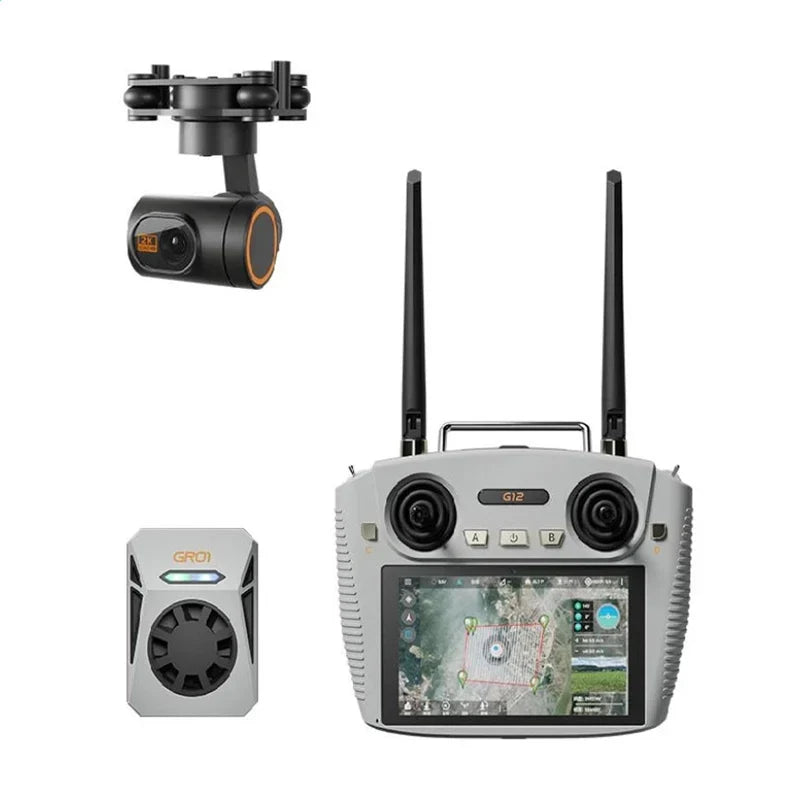

Compatible Cameras & Payloads

The Skydroid G12 is fully compatible with the following Skydroid camera and gimbal systems:

• Skydroid C10 Pro
• Skydroid C12
• Skydroid C20
• FPV cameras, EO/IR payloads, and Ethernet-based imaging systems via Serial, SBUS, and PWM interfaces

Ground Control Software Features

Built on the TOWER platform, the G12 supports:

• Intelligent waypoint planning
• Automatic mission execution and following
• One-click return-to-home
• Secondary development for third-party ground stations
• Real-time video display and mission monitoring

Frequently Asked Questions

What is the transmission range of the Skydroid G12?

The Skydroid G12 supports up to 20KM of ground-to-air digital video, data, and control transmission under visual line-of-sight conditions. Actual range may vary based on local RF regulations and environmental conditions.

Is the Skydroid G12 compatible with ArduPilot and PX4?

Yes. The G12 runs Android 13 and is compatible with mainstream ground control station apps including Mission Planner, QGroundControl, and the built-in TOWER platform for ArduPilot/PX4-based UAVs.

How long does the Skydroid G12 battery last?

The G12 features a 10,000mAh battery with 4–8 hours of runtime depending on usage. It supports 36W PD fast charging via Type-C for quick turnaround between missions.

What cameras is the Skydroid G12 compatible with?

The G12 is compatible with Skydroid C10 Pro, C12, and C20 cameras, as well as FPV cameras, EO/IR payloads, and Ethernet-based imaging systems via its Serial, SBUS, and PWM interfaces.
