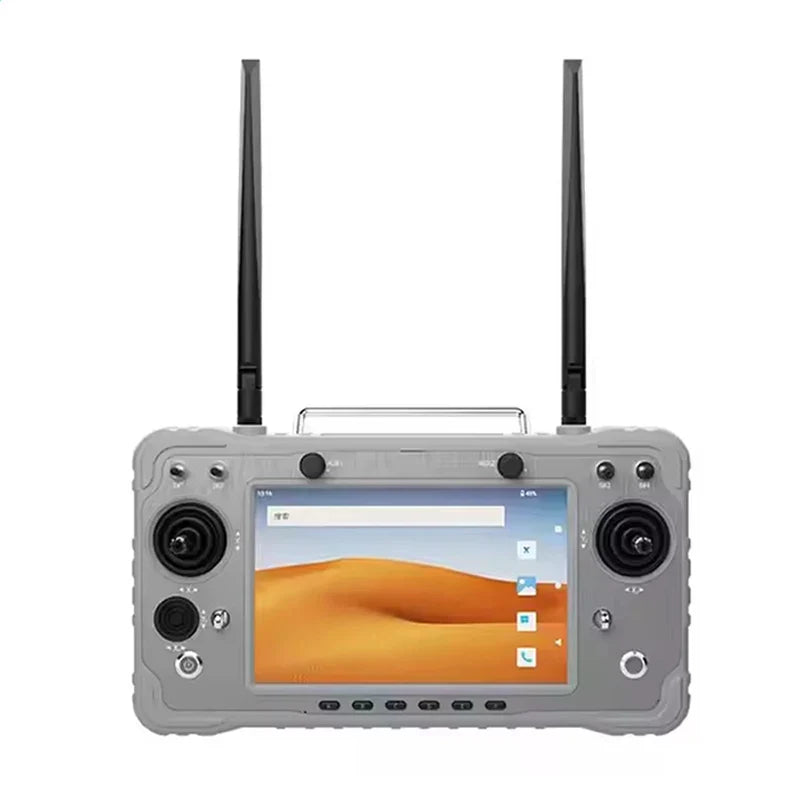

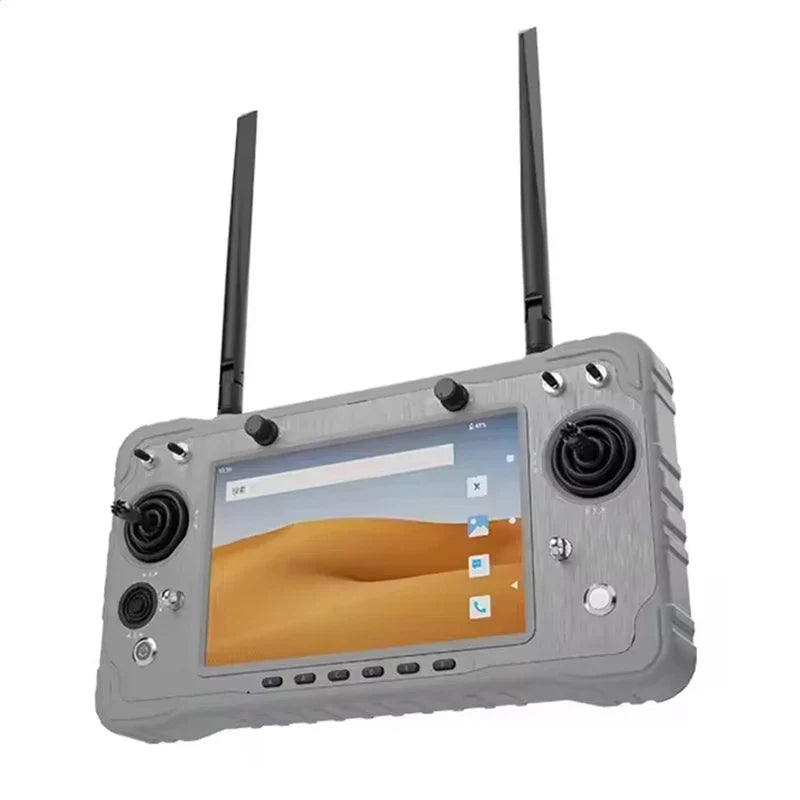

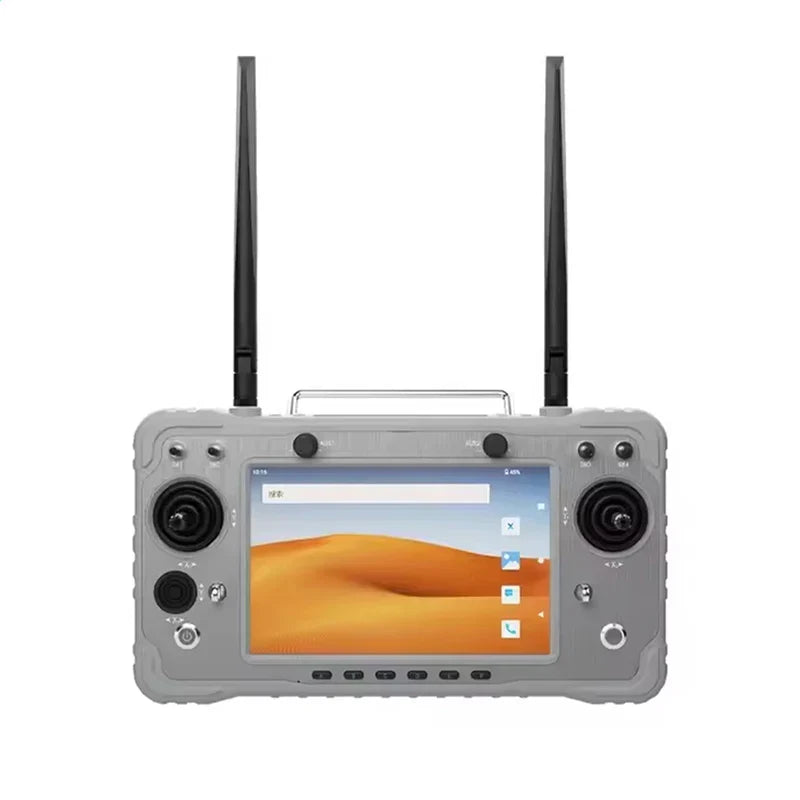

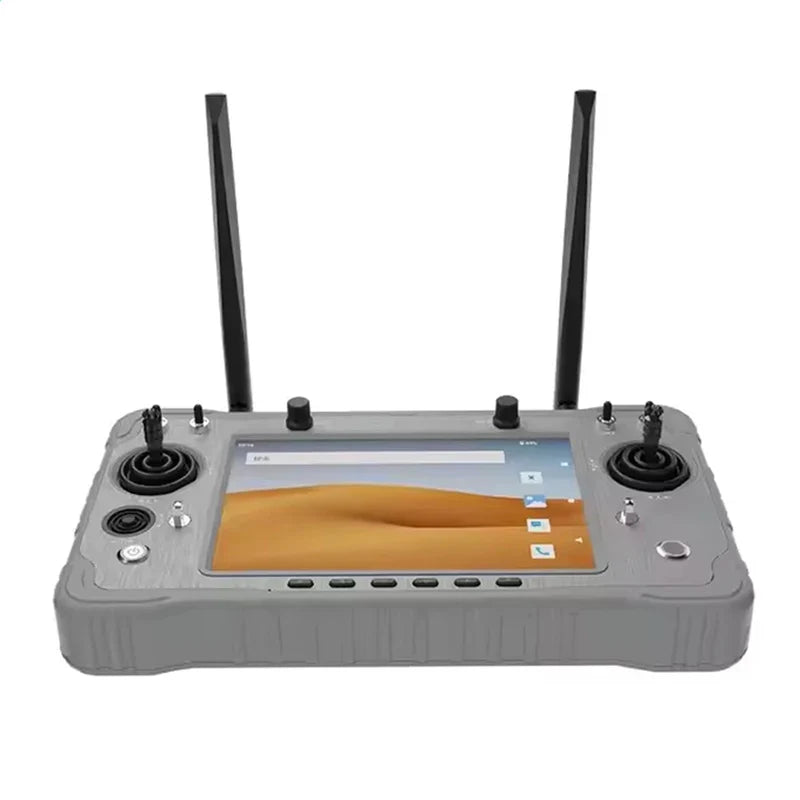

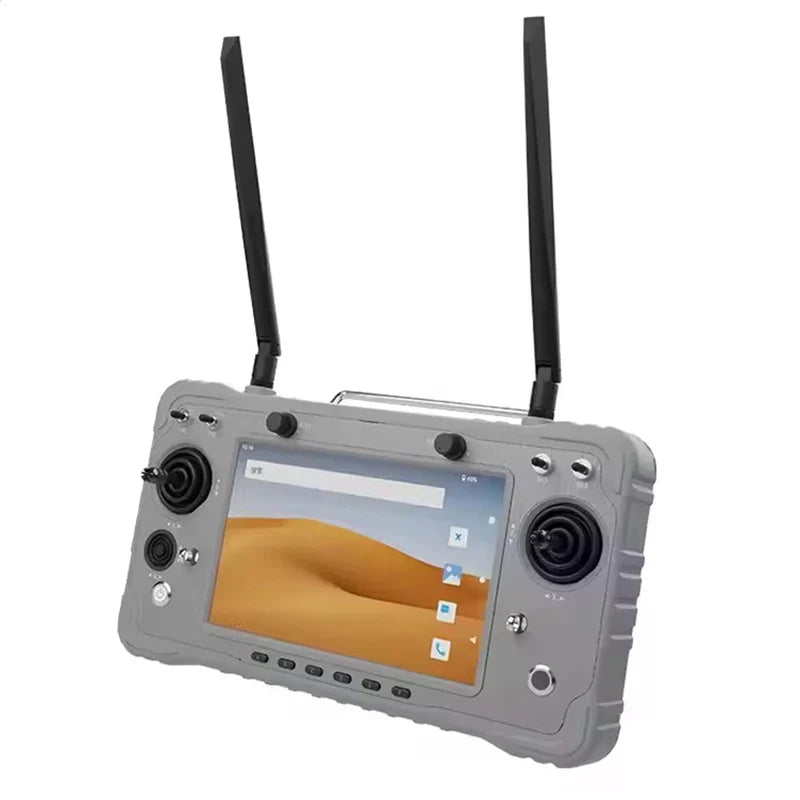

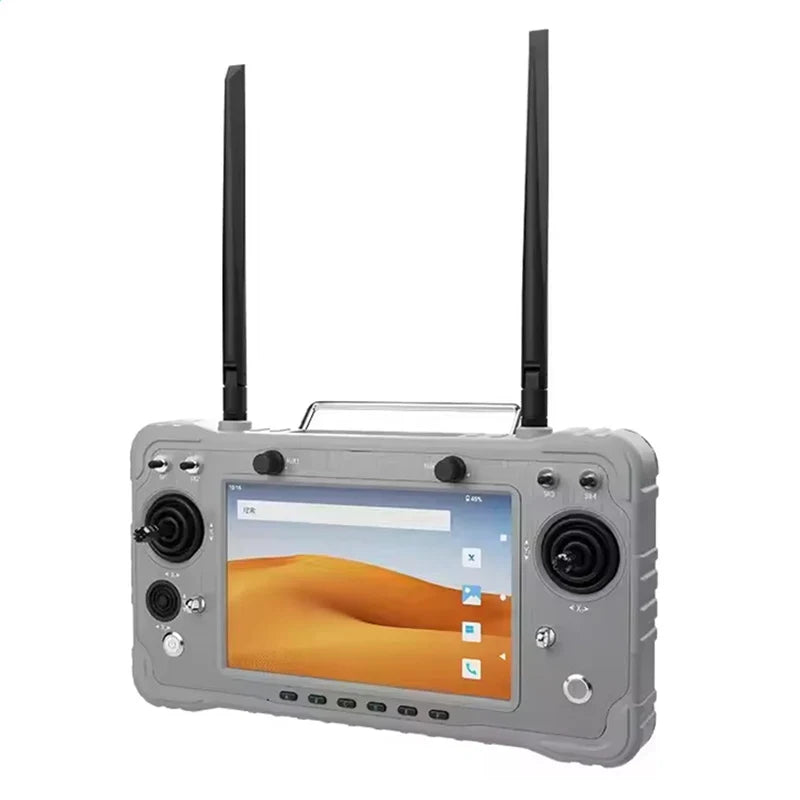

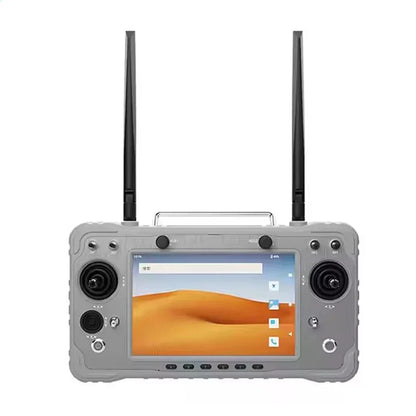

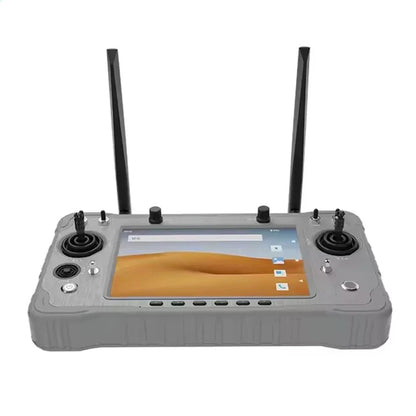

Skydroid G16 Ground Control Station — 20KM Dual-Band HD Video Transmission for UAV, UGV & Robotics
The Skydroid G16 is a professional-grade ground control station built for demanding UAV, UGV, and unmanned surface vehicle operations. Powered by a Qualcomm 6nm processor running Android 13, it delivers hardware-level H.264/H.265 decoding, smooth ground station app performance, and up to 20KM of dual-band 2.4GHz/5.8GHz video, data, and control transmission. Whether you’re running mapping missions, infrastructure inspections, or autonomous robotics operations, the G16 gives you a rugged, reliable, and feature-rich command platform that keeps up with the mission.
Key Features
- 20KM Dual-Band Video, Data & Control Transmission — Powered by Skydroid’s proprietary data-video-control link with automatic frequency hopping and MCS dynamic adjustment for maximum range and reliability
- Dual-Band 2.4GHz / 5.8GHz Auto-Switching — Automatically selects the optimal frequency band to maximize anti-interference performance and signal stability in complex RF environments
- 7” Sunlight-Readable FHD Touchscreen — 1920×1200 industrial-grade display with ultra-high screen-to-body ratio for clear real-time video even in bright outdoor conditions
- Android 13 + Qualcomm 6nm Platform — Open ecosystem supports most Android apps, SDK development kit, video floating windows, and compatibility with mainstream flight control ground stations including Mission Planner and QGroundControl
- 9–10 Hours Battery Life — High-energy-density 20000mAh lithium-ion battery with 36W PD fast charging via Type-C; new hardware platform reduces power consumption and heat generation
- 16-Channel Control — Full 16-channel RC output for complex multi-function UAV and robotics platforms
- Abundant Interfaces — USB-A, SIM card, Type-C, PPM on controller; Serial, PWM, SBUS on GR01 receiver — compatible with FPV cameras, gimbal cameras, EO/IR payloads, and Ethernet imaging systems
- Multi-Platform Compatible — Helicopters, fixed-wing aircraft, multi-rotor drones, UGV, and USV
Skydroid G16 Remote Controller Specifications
| Parameter | Specification |
|---|---|
| Display | 7-inch Industrial Touch Screen, Sunlight-Readable |
| Resolution | 1920 × 1200 |
| Processor | Qualcomm 6nm |
| OS | Android 13 |
| RAM / Storage | 4GB / 64GB |
| Battery Capacity | 20000mAh |
| Battery Life | 7–9 hours (typical) / 9–10 hours (optimized) |
| Charging Interface | Type-C, 36W PD Fast Charging |
| Size / Weight | 272 × 183 × 94mm / 1.05kg |
| Frequency Band | 2.4GHz / 5.8GHz Dual Band |
| Channels | 16 Channels |
| Dynamic Frequency | Automatic Frequency Hopping |
| Transmission Distance | 5–20KM (ground-to-air, line of sight) |
| RF Power | 23dBm @CE/FCC |
| Operating Temperature | -10°C to 60°C |
| External Interfaces | USB-A, SIM Card, Type-C, PPM |

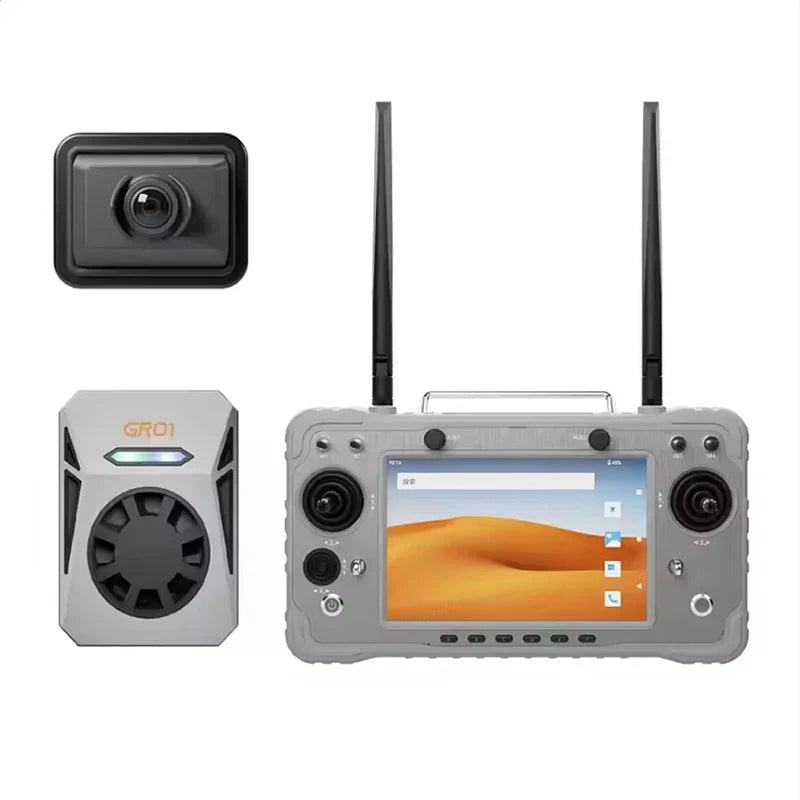

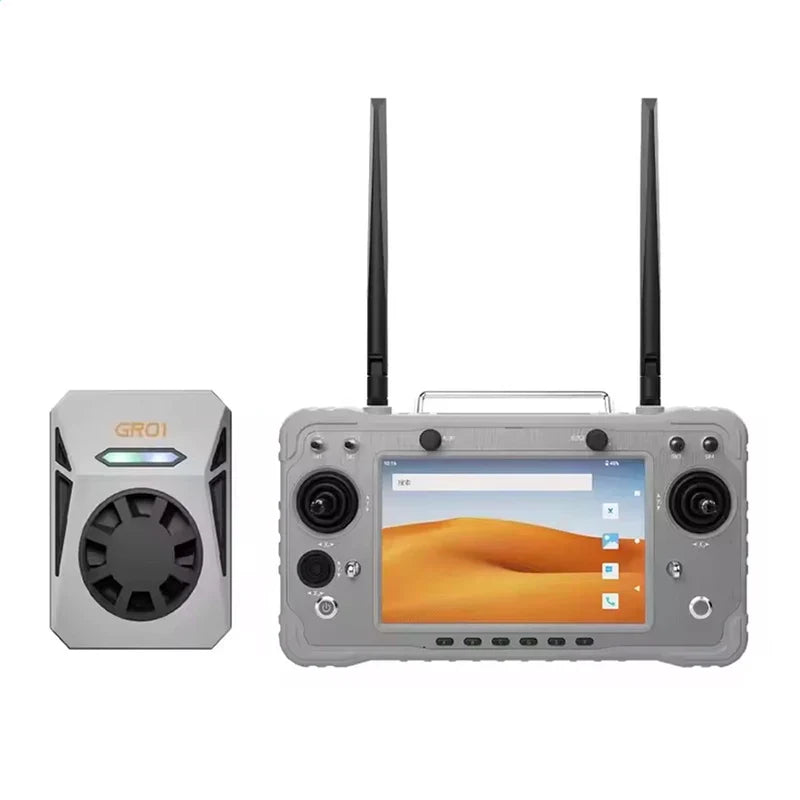

GR01 Receiver Specifications
| Parameter | Specification |
|---|---|
| Working Frequency | 2.4GHz / 5.8GHz Dual Band |
| Power Supply Voltage | 7.2–72V (XT30) |
| Operating Current | 12V / 300mA |
| Serial Baud Rates | 57600 / 115200 / 921600 |
| Data Transmission Port | 1 Channel |
| Network Port | 1 Channel |
| SBUS Output | 1 Channel |
| PWM Interface | 3 Channels |
| RF Power | 23dBm @CE/FCC |
| Channel Bandwidth | 1.25 / 2.5 / 5 / 10 / 20 / 40MHz (selectable) |
| Dimensions / Weight | 45.5 × 60 × 21.5mm / 37g |
| Operating Temperature | -10°C to 60°C |
Applications
The Skydroid G16 is designed for professional unmanned systems operations across a wide range of industries:
- Mapping & Surveying — Fixed-wing and multi-rotor photogrammetry missions
- Infrastructure Inspection — Power lines, pipelines, bridges, and towers
- Agriculture — Crop monitoring, spraying drones, and precision agriculture
- Surveillance & Security — Long-range persistent monitoring
- Construction & Site Management — Progress tracking and volumetric analysis
- Emergency Response — Search and rescue, disaster assessment
- UGV & Robotics — Unmanned ground vehicles and surface vessels
Compatible Platforms
- Multi-rotor drones (quadcopter, hexacopter, octocopter)
- Fixed-wing aircraft
- Helicopters
- Unmanned Ground Vehicles (UGV)
- Unmanned Surface Vehicles (USV)
Frequently Asked Questions
What is the maximum range of the Skydroid G16?
The Skydroid G16 supports up to 20KM of ground-to-air video, data, and control transmission under line-of-sight conditions. Range may vary based on local RF regulations and environmental conditions.
Is the Skydroid G16 compatible with ArduPilot and PX4?
Yes. The G16 runs Android 13 with an open ecosystem and is compatible with mainstream flight control ground station apps including Mission Planner, QGroundControl, and other ArduPilot/PX4-compatible GCS software.
Does the Skydroid G16 support video transmission?

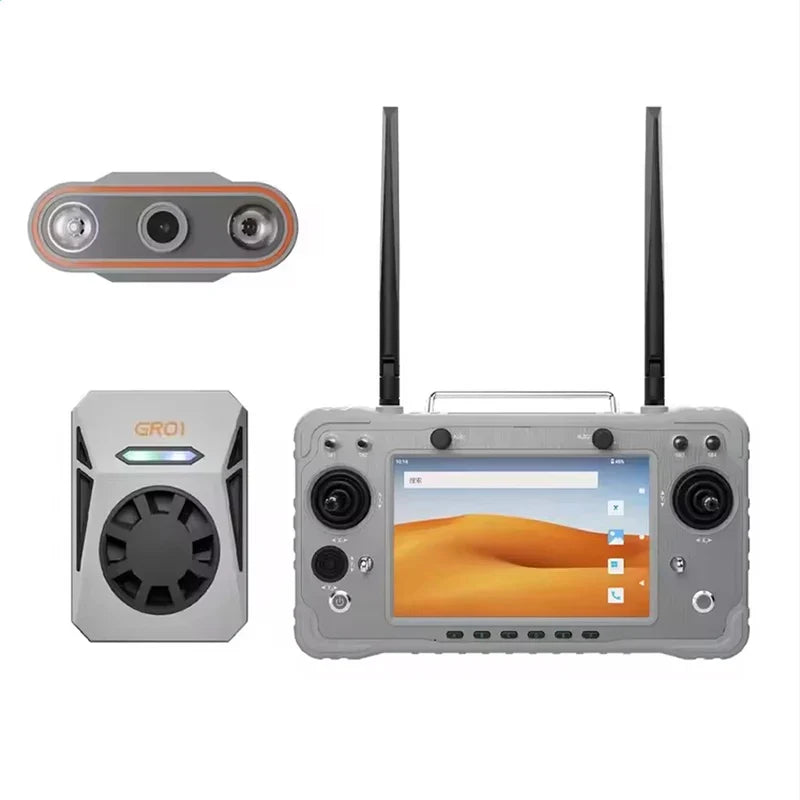

Yes. The G16 supports long-range HD digital video transmission with hardware H.264/H.265 decoding. An optional camera is required for video transmission functionality.
What payloads is the GR01 receiver compatible with?
The GR01 receiver supports FPV cameras, gimbal cameras, EO/IR payloads, and Ethernet-based imaging systems via its Serial, PWM, SBUS, and network port interfaces.
