Skydroid G20 Smart Remote Controller Android 13 Ground Station with 30KM Dual-Band 2.4G/5.8G Video Transmission and 7-Inch Display

Skydroid G20 — 30KM Professional Long Range Smart Drone Controller

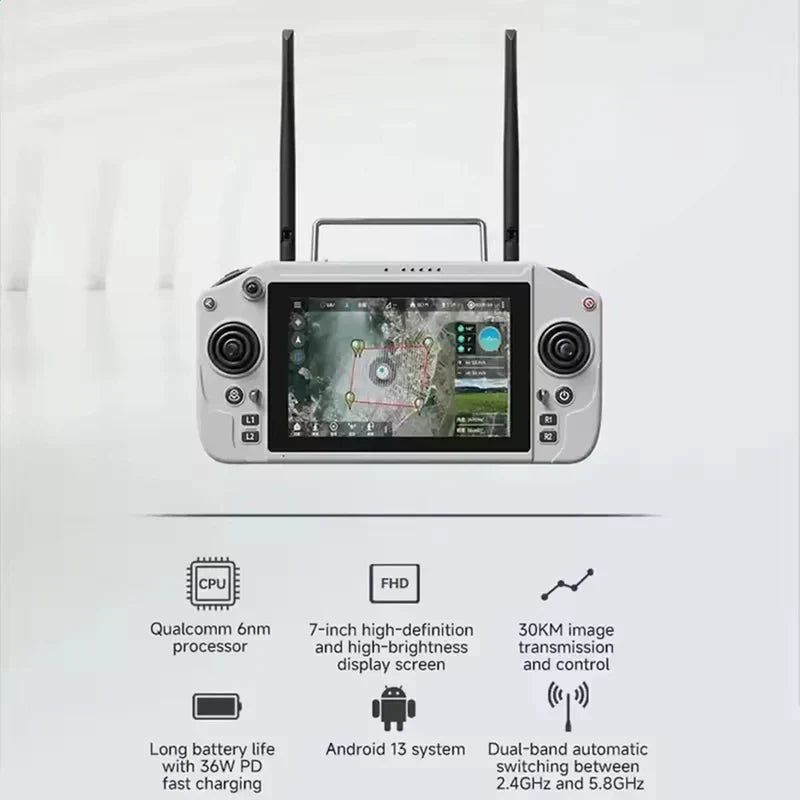

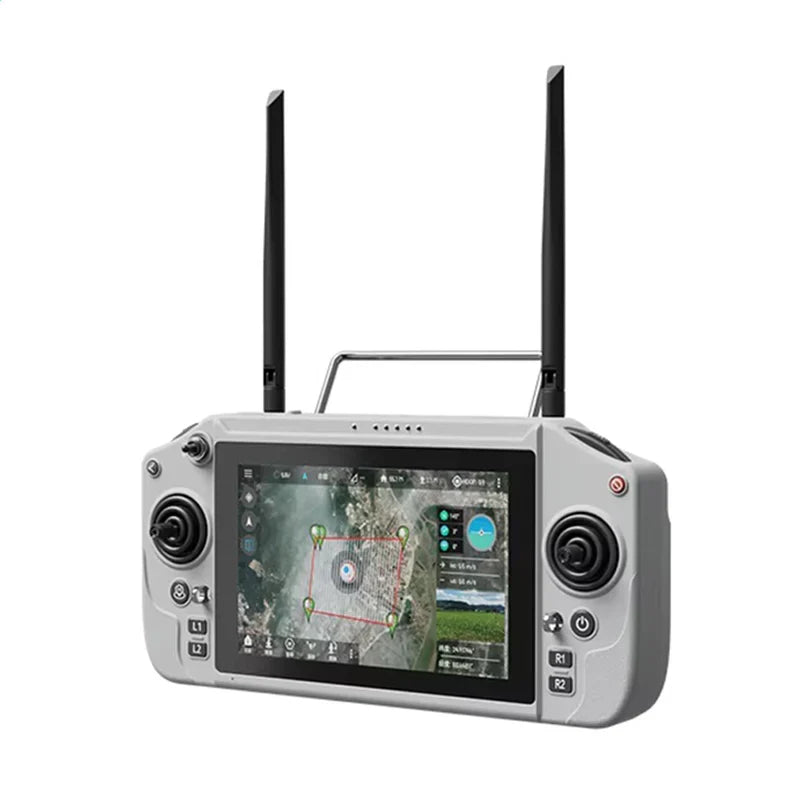

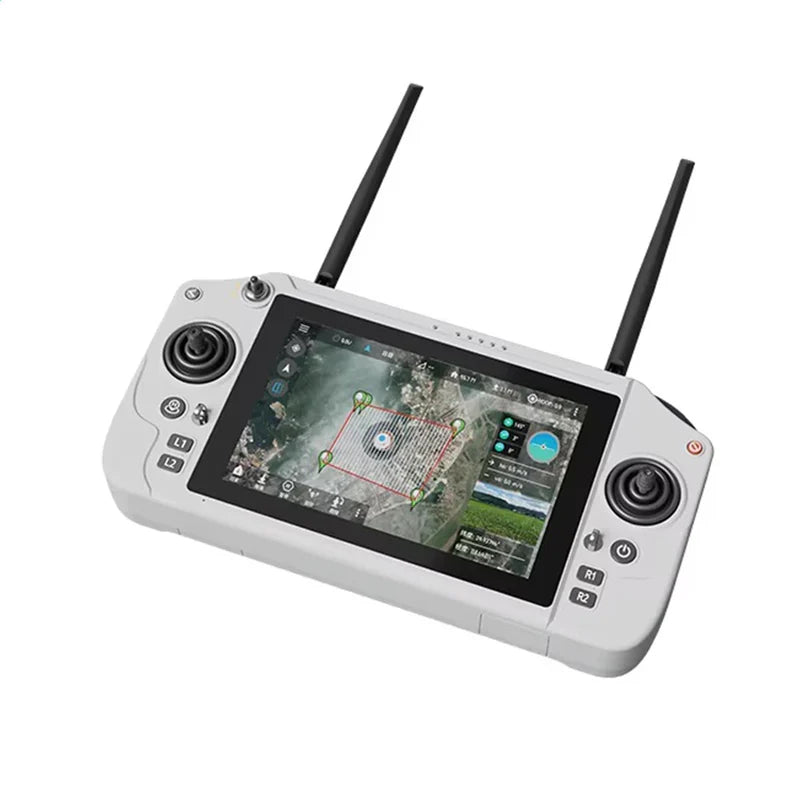

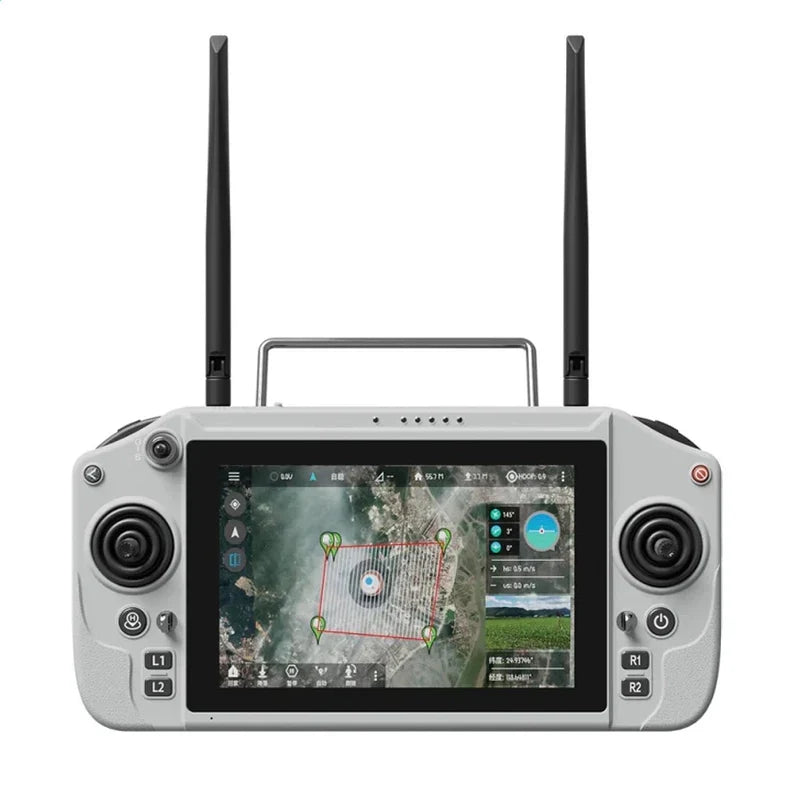

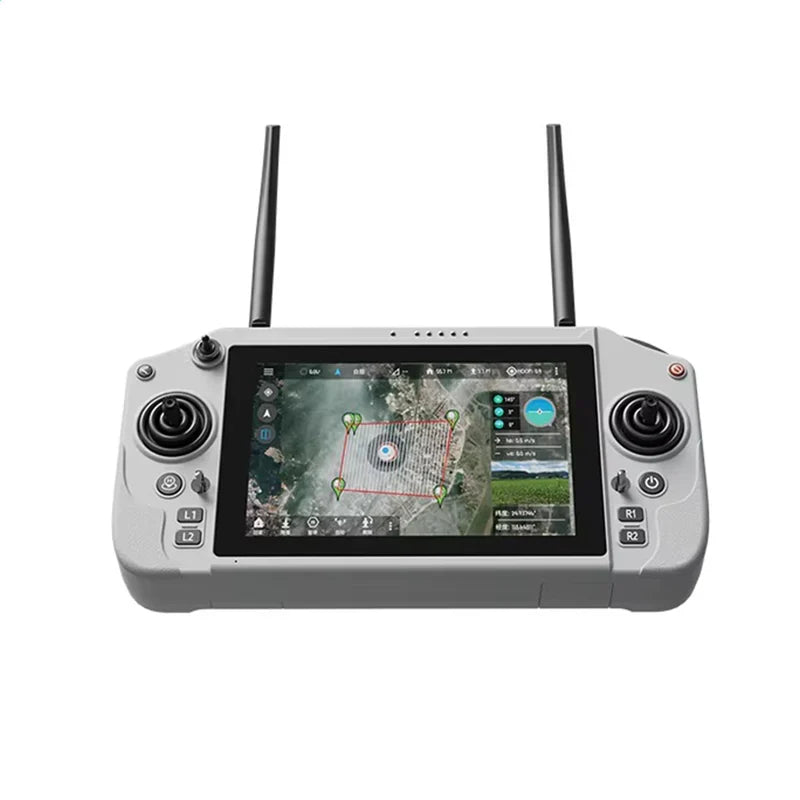

The Skydroid G20 is a professional-grade 30KM long-range remote controller designed for industrial and commercial drone applications. It features a 7-inch 1920×1200 full HD high-brightness touchscreen, powered by a Qualcomm 6nm processor and the latest Android 13 OS, offering smooth operation and hardware-level decoding for 4K H.264/H.265 video. With dual-band 2.4GHz/5.8GHz automatic switching, it ensures stable signal transmission in complex environments. The controller is equipped with 4GB RAM, 64GB internal storage, and a 20000mAh battery providing up to 12 hours of runtime, supported by 36W PD Type-C fast charging. Its versatile I/O options — including SIM card slot, USB, Type-C, SBUS, PWM, and serial ports — make it compatible with various payloads such as gimbals, pods, and industrial-grade video equipment.

Key Features

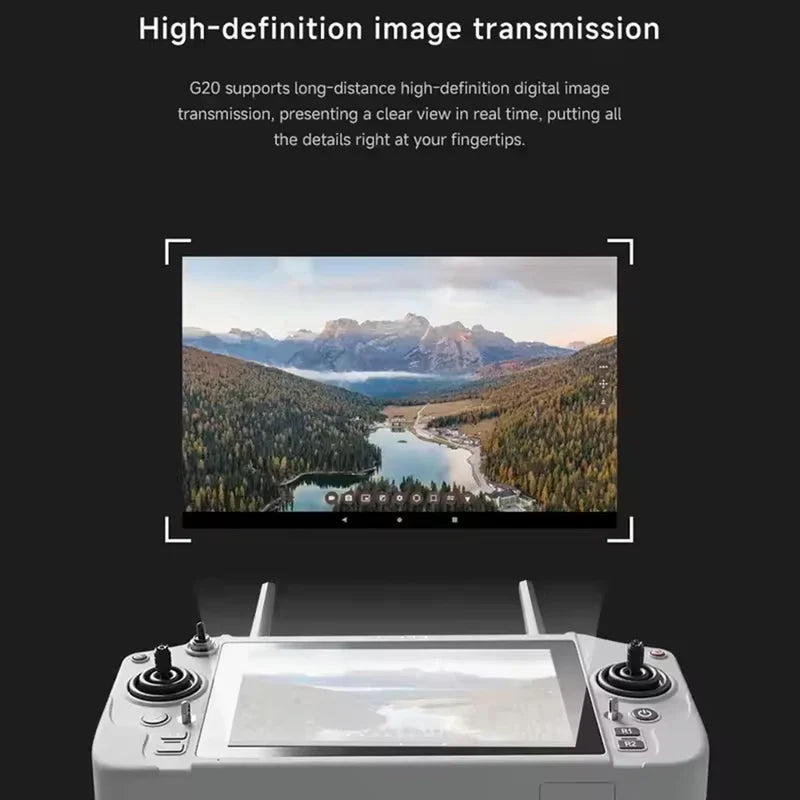

• 30KM Digital Video & Control Transmission — Reliable long-distance operation using Skydroid’s advanced image control link
• Dual-Band 2.4GHz/5.8GHz with Auto-Switching — Enhances anti-interference and adapts dynamically to flight conditions
• 7” FHD Industrial Touchscreen — Crisp 1920×1200 resolution and high brightness ensure visibility under direct sunlight
• Android 13 + Qualcomm 6nm Platform — Enables seamless app performance and real-time 4K video decoding

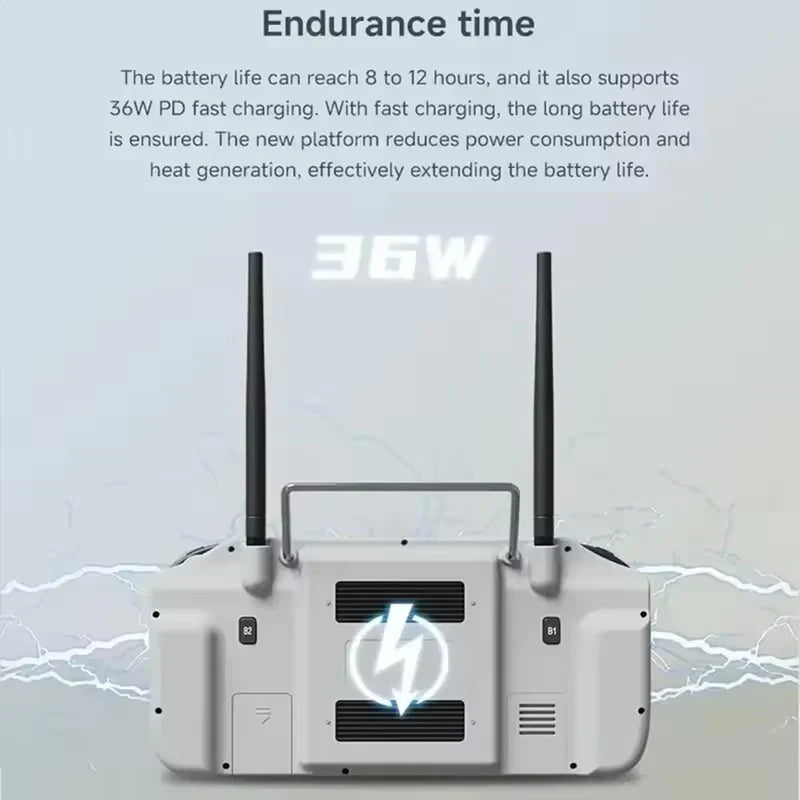

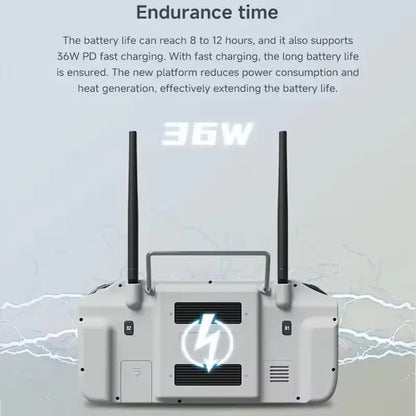

• Extended Battery Life — Up to 12 hours with 36W PD fast charging via Type-C for continuous missions

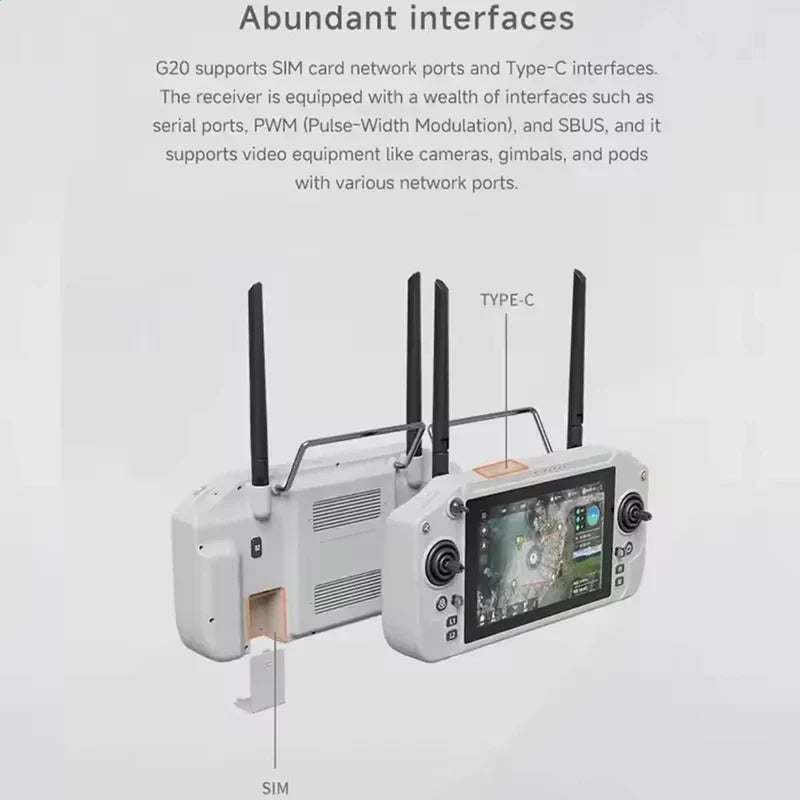

• Abundant Interfaces — SIM, USB, serial ports, PWM, SBUS — ideal for drones with cameras, sensors, and gimbals

Skydroid G20 Remote Control Specifications

Parameter	Specification
Display	7” Industrial FHD Touch Screen
Resolution	1920 × 1200
Processor	Qualcomm 6nm
OS	Android 13
RAM / Storage	4GB / 64GB
Battery Capacity	20000mAh
Endurance	8–12 hours
Charging Interface	Type-C, 36W PD
Size / Weight	277 × 138 × 96mm / 1.2kg
Frequency Band	2.4GHz / 5.8GHz Dual Band
Dynamic Frequency	Automatic Frequency Hopping
Transmission Distance	5–30KM (ground-to-air, visual)
RF Power	23dBm @CE/FCC
Operating Temperature	-10°C to 55°C
External Interfaces	USB, SIM card, Type-C, serial, SBUS, PWM

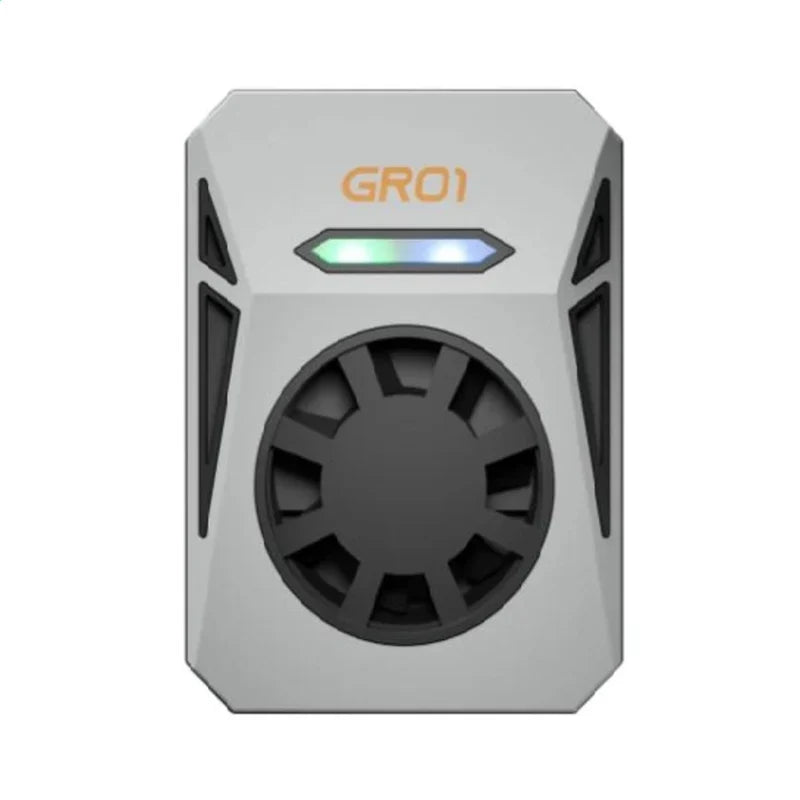

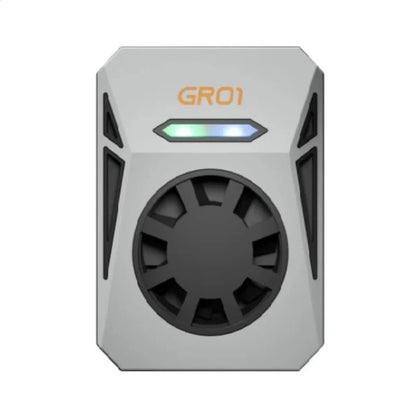

GR01 Receiver Specifications

Parameter	Specification
Frequency	2.4GHz / 5.8GHz
Voltage Range	7.2–72V (XT30)
Operating Current	12V / 300mA
Serial Baud Rates	57600 / 115200 / 921600
Data Transmission	1 channel, 200Kbps–160Mbps
Network / SBUS Ports	1 channel each
PWM Output	3 channels
RF Power	23dBm @CE/FCC
Channel Bandwidth	1.25MHz to 40MHz (selectable)
Dimensions / Weight	45.5 × 60 × 21.5mm / 37g
Operating Temperature	-10°C to 60°C

Applications

The Skydroid G20 remote controller is ideal for UAV missions in mapping, inspection, agriculture, surveillance, construction, and emergency response. Its 30KM image transmission, dual-band reliability, and advanced connectivity make it a versatile and powerful tool for demanding professional drone operations.
