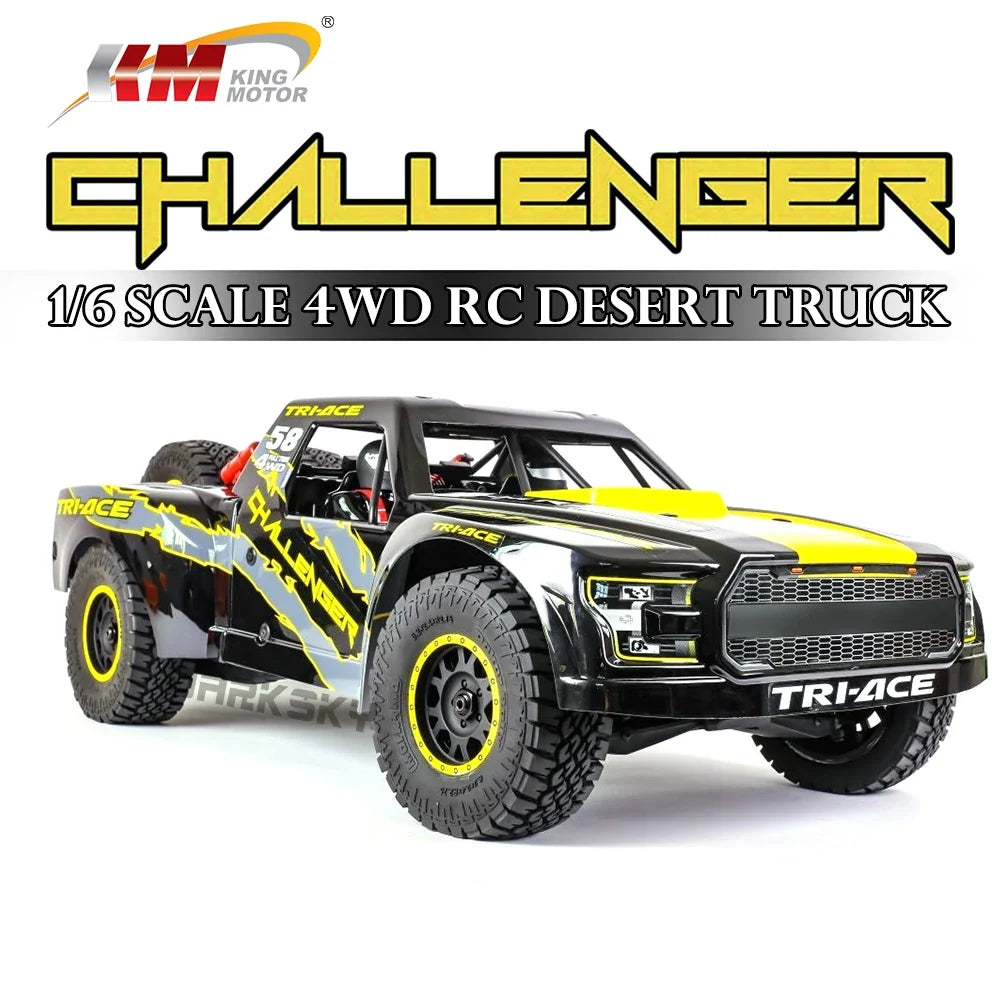

TRACTION Hobby KM Challenger — 1/6 Scale RC Desert Truck with Solid Rear Axle

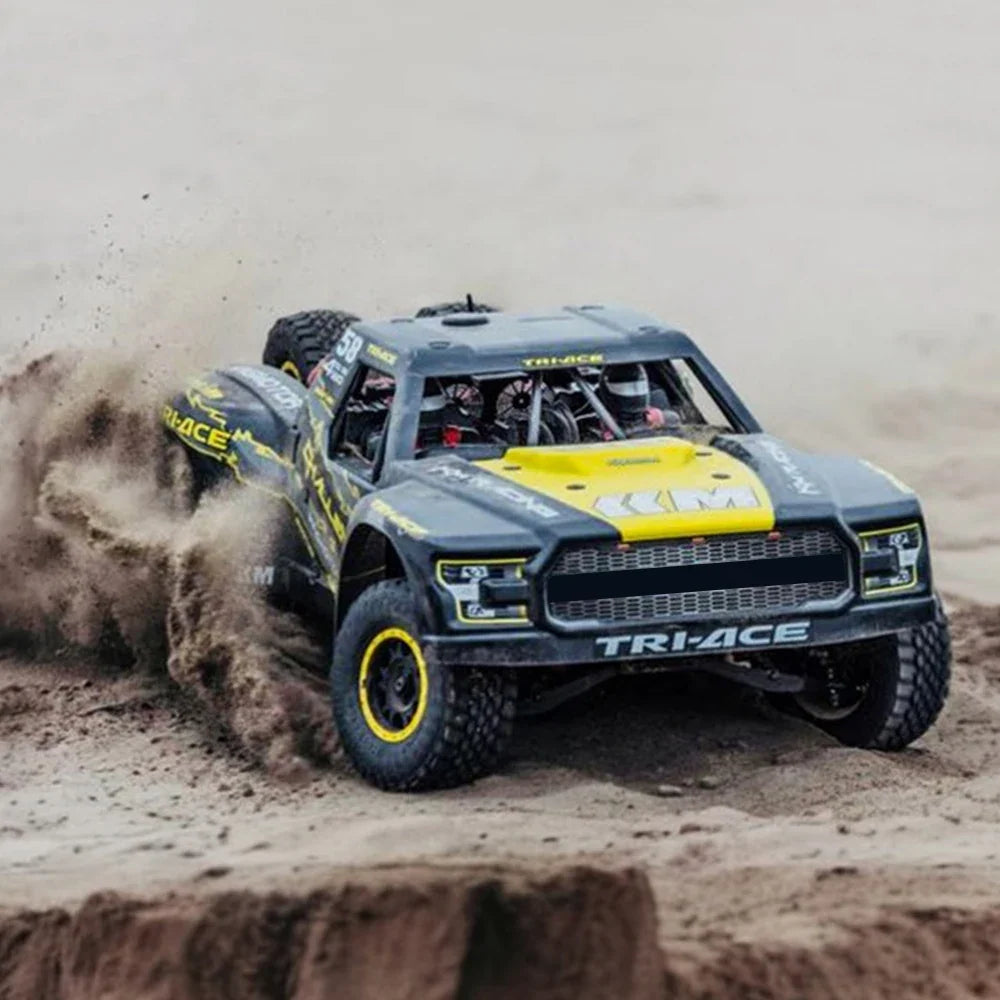

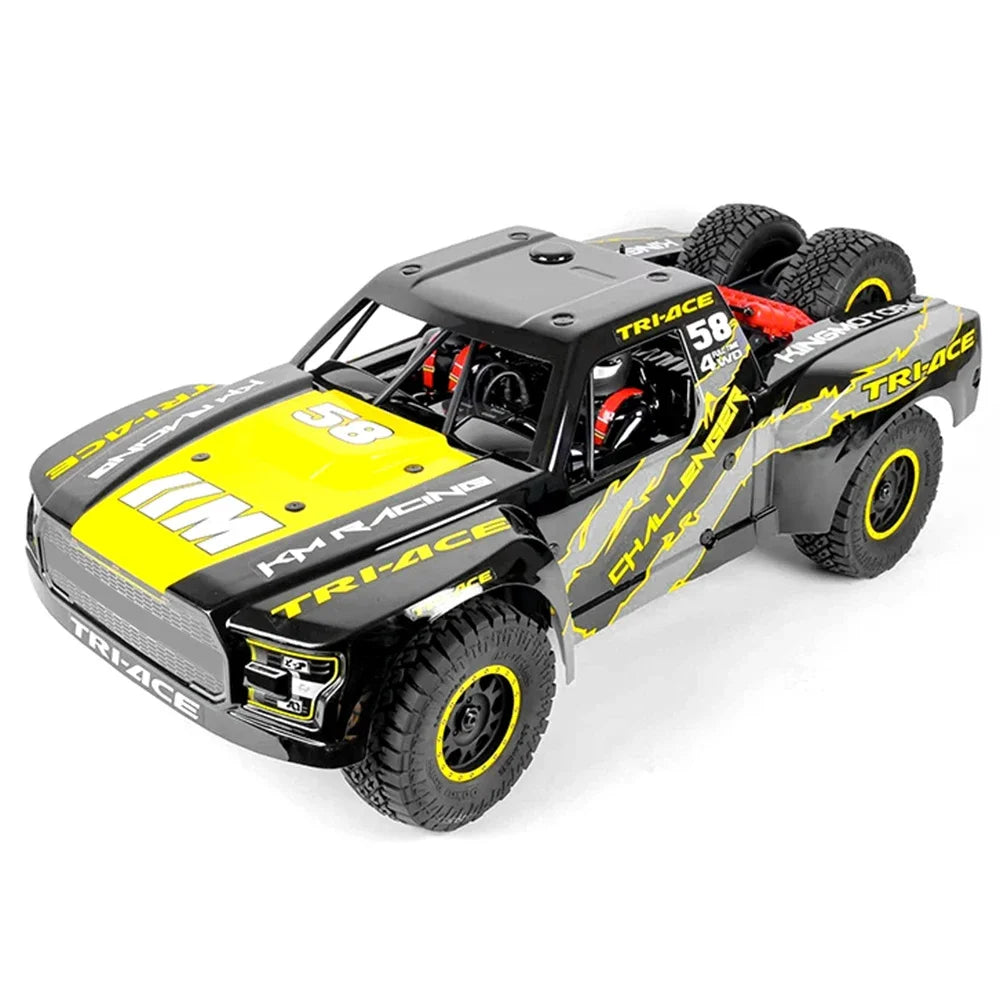

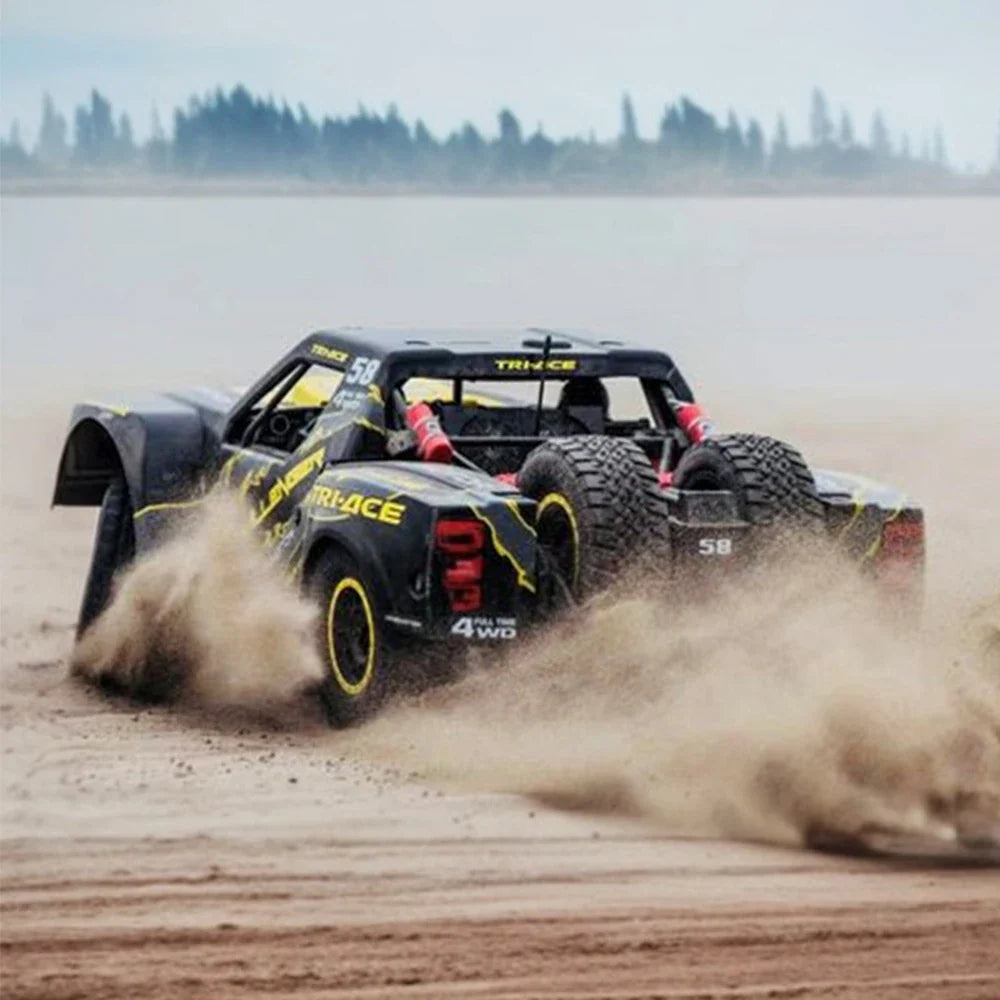

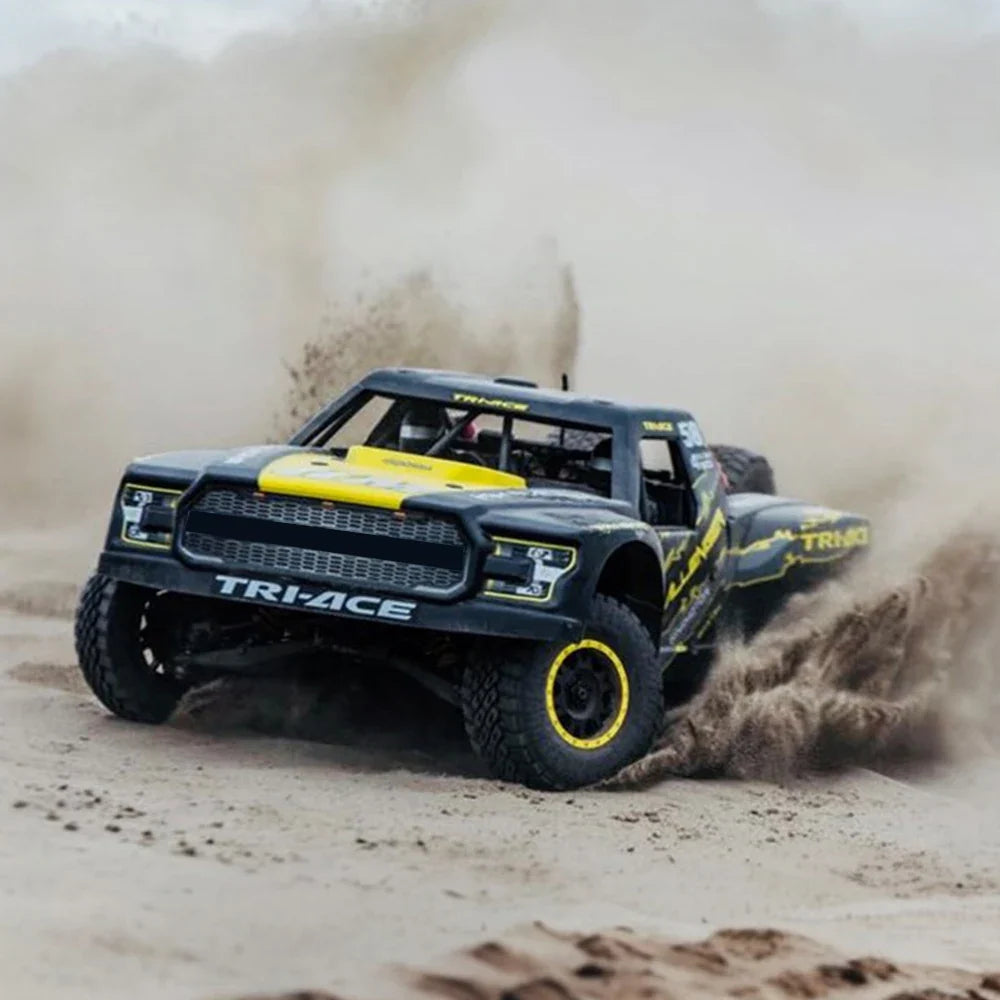

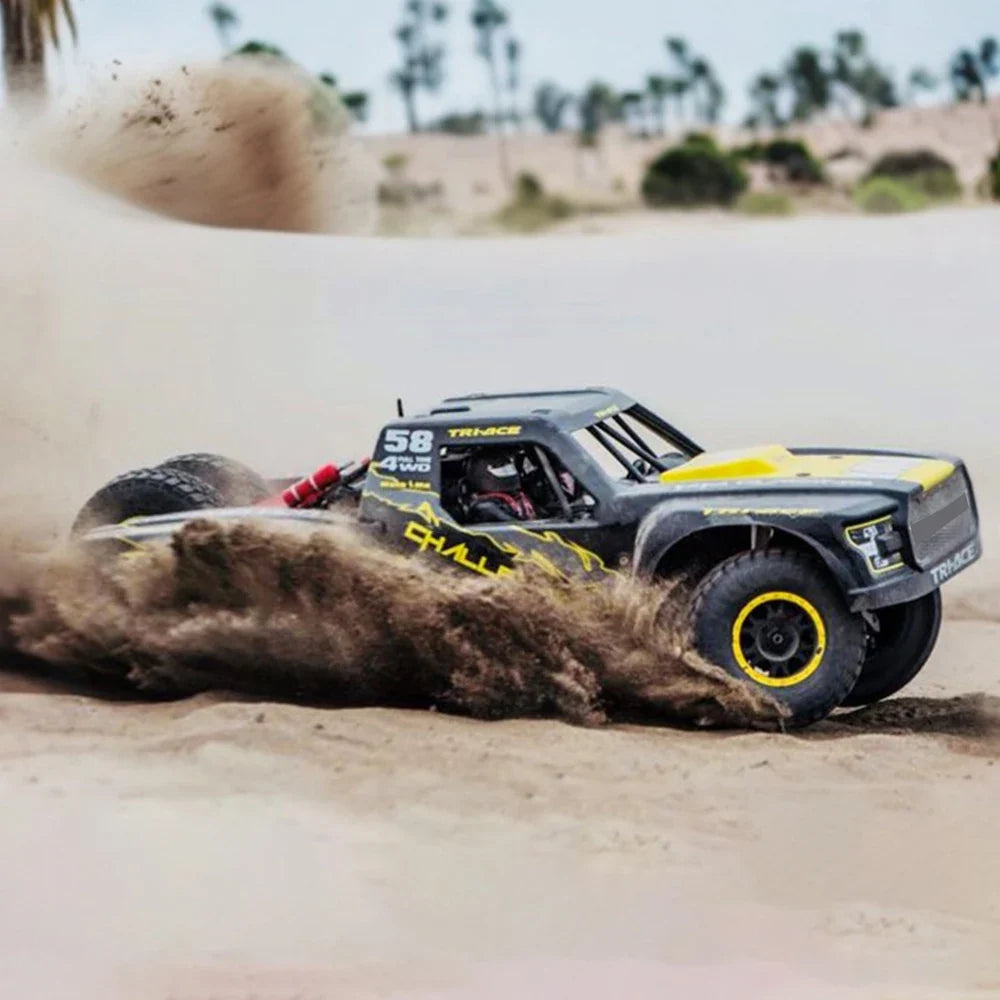

The KM Challenger is not your typical RC truck. Built on a 4 mm 6061-T6 full aluminum alloy chassis with a solid rear axle, four-link rear suspension, and full-time 4WD, it brings the mechanical layout of a real desert race truck to a 1/6 scale RC platform. At 784 mm long with a 469 mm wheelbase, this is a serious large-scale machine built for experienced RC enthusiasts who want something different.

Why the KM Challenger Stands Out

• Solid Rear Axle + Four-Link Suspension — A rare setup in RC trucks, giving it authentic desert race truck character
• Independent Front Double-Wishbone Suspension — Long-travel front suspension for realistic off-road geometry
• Full-Time 4WD with All-Metal Gears — 8.006:1 overall gear ratio, built for durability and traction
• 4 mm 6061-T6 Aluminum Alloy Chassis — Rigid, lightweight, and built to handle large-scale stress
• 1.5 mm PC Body Shell — Thick, impact-resistant body with full-size spare tire for scale realism
• Licensed 6.2 x 2.4 R2.75 Tires — Large-diameter tires matched to the 1/6 platform
• KM Genuine 4215 45kg All-Metal High-Voltage Servo — Powerful steering for a truck this size
• Dedicated Parts Ecosystem — Roll cages, bumpers, gearboxes, A-arms, and more available separately

Version Options

ARTR Version (Almost Ready to Run)

Does not include transmitter, motor, or ESC. Ideal for experienced RC enthusiasts who want to install their own electronics and power system. Full chassis, body, suspension, servo, and drivetrain included.

RTR Version (Ready to Run)

Includes everything needed to get running:

• FlySky G7P Transmitter
• Hobbywing EzRun MAX6 G2 8S Sensored Brushless ESC
• Hobbywing EzRun 4990 SD G2 Brushless Motor

Battery and charger sold separately.

Product Specifications

Parameter	Specification
Brand	TRACTION Hobby
Model	KM Challenger
Scale	1/6
Vehicle Type	Solid Rear Axle Desert / Short Course Truck
Overall Dimensions	784 x 405 x 280 mm
Wheelbase	469 mm
Track Width	330 mm (Front and Rear)
Minimum Ground Clearance	73 mm
Chassis	4 mm 6061-T6 Full Aluminum Alloy
Body Material	1.5 mm Imported PC Material
Front Suspension	Independent Double-Wishbone
Rear Suspension	Four-Link Solid Rear Axle
Drive System	Full-Time 4WD
Gears	All-Metal Gears
Overall Gear Ratio	8.006:1
Servo	KM Genuine 4215 45kg All-Metal High-Voltage Servo
Tire Size	6.2 x 2.4 R2.75 in (Licensed)
Wheel Hex	2.75 in (Licensed)
Shock Absorbers	All-Metal Threaded Shocks (Licensed)
Spare Tire	Full-Size Spare Tire Included
Battery Compartment	139 x 47 x 70 mm (Extendable to 155 mm length)
Package Dimensions	100 x 47 x 34 cm
Package Weight	12.5 kg
RTR ESC	Hobbywing EzRun MAX6 G2 8S Sensored Brushless ESC
RTR Motor	Hobbywing EzRun 4990 SD G2 Brushless Motor
RTR Transmitter	FlySky G7P

Optional Accessories (Sold Separately)

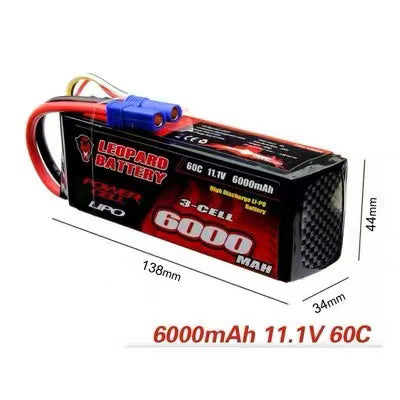

• 3S 6000mAh Leopard LiPo Battery

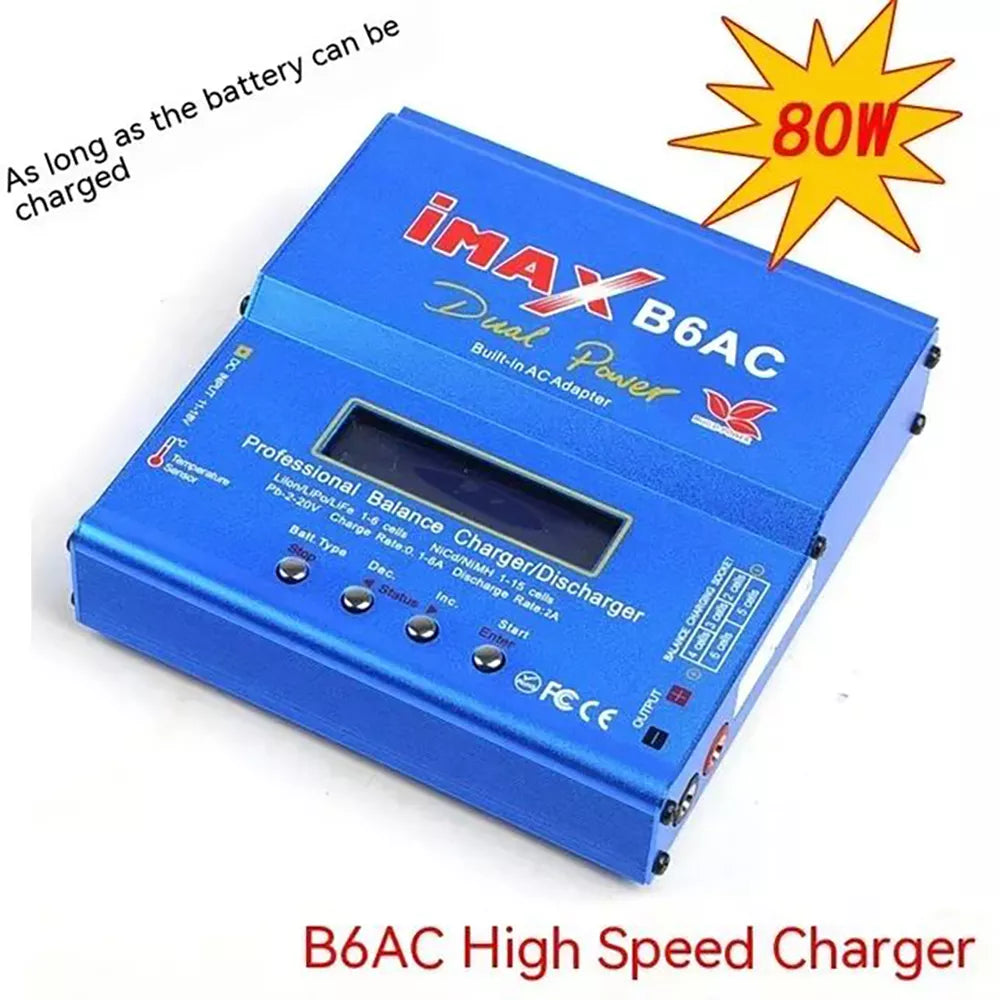

• B6AC LiPo Battery Charger
• Full Armor Protection Set / HD60004

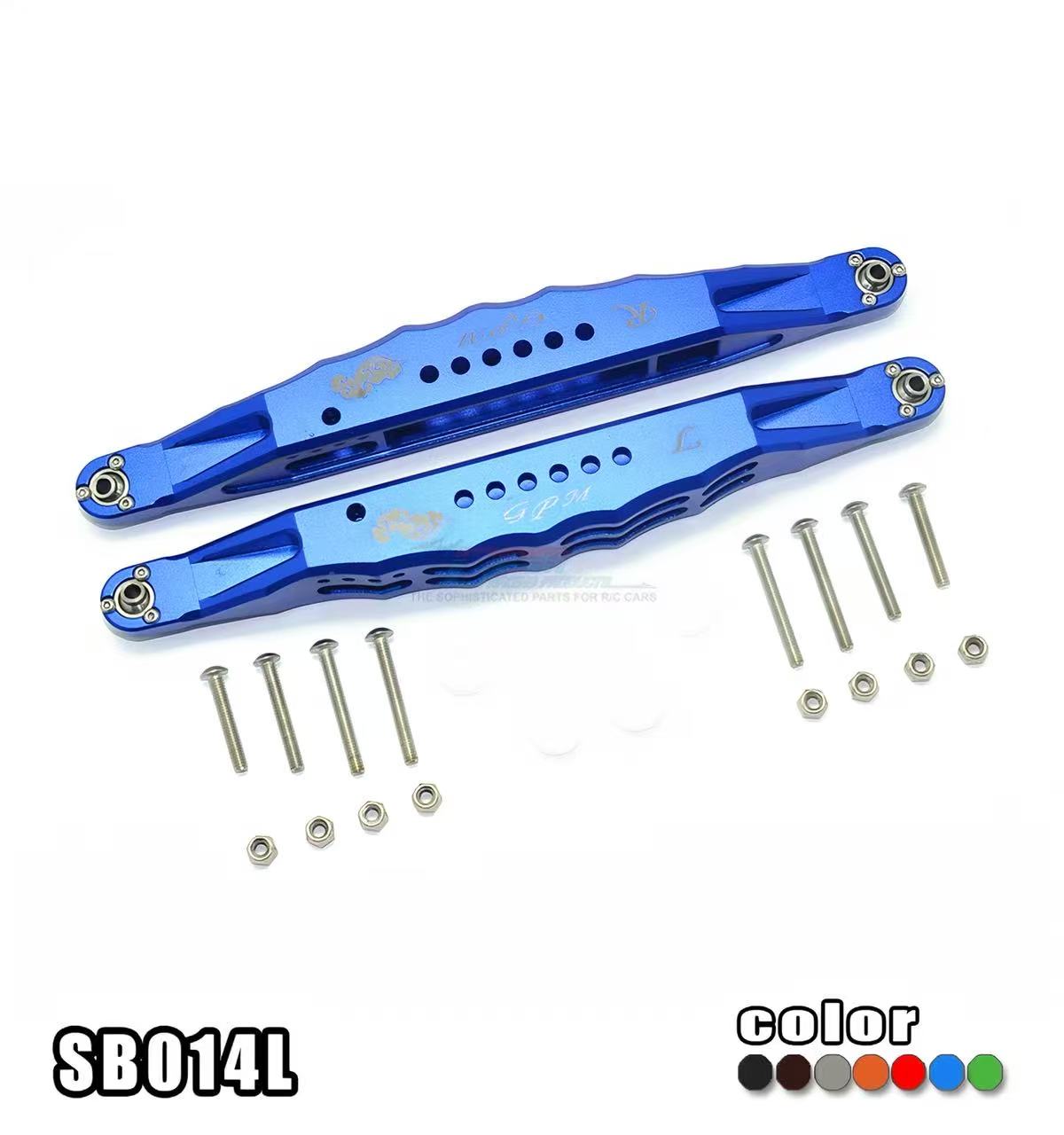

• Aluminum Rear Lower Chassis Brace / SB014L

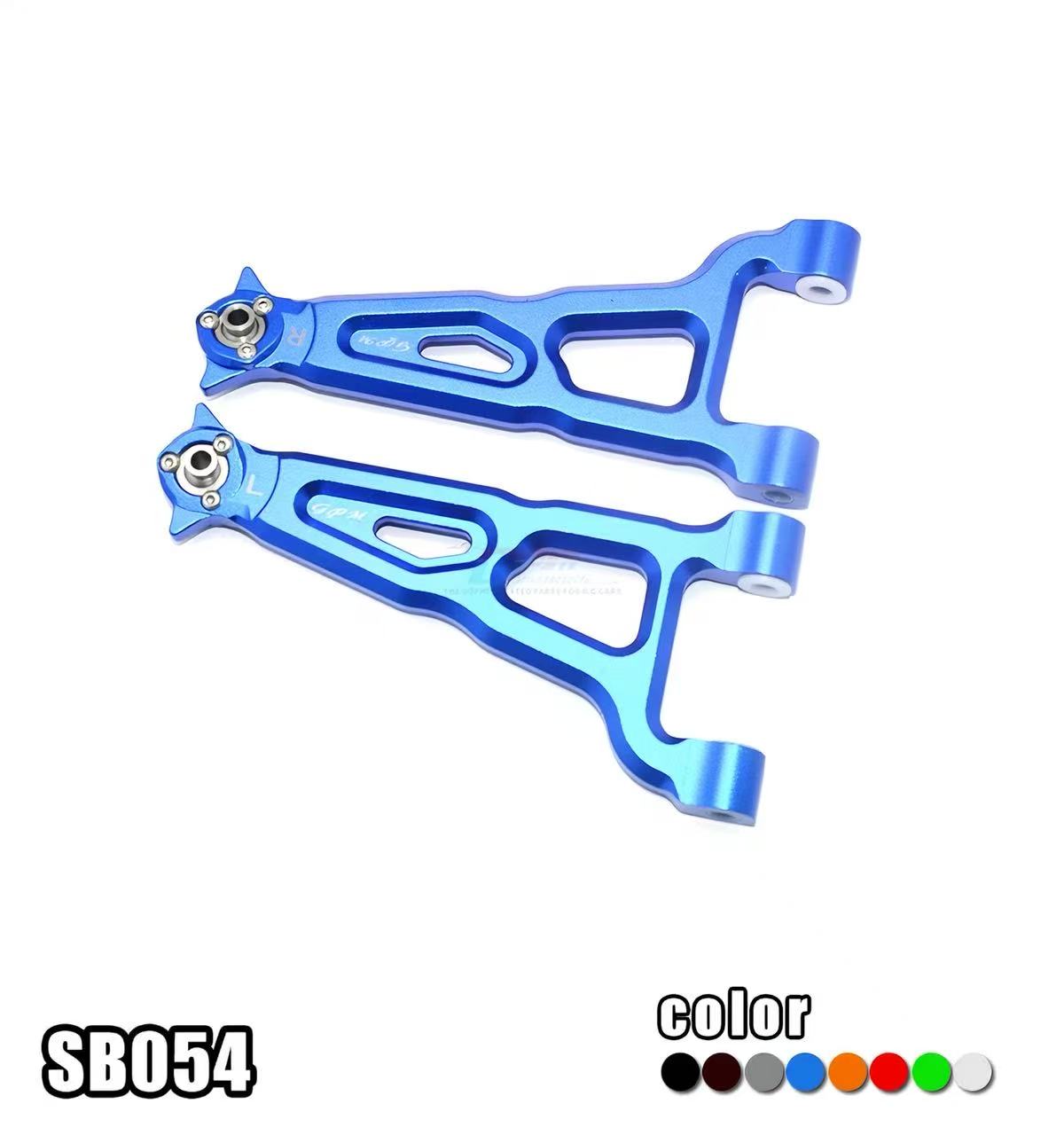

• Aluminum Front Upper A-Arms (Pair) / SB054

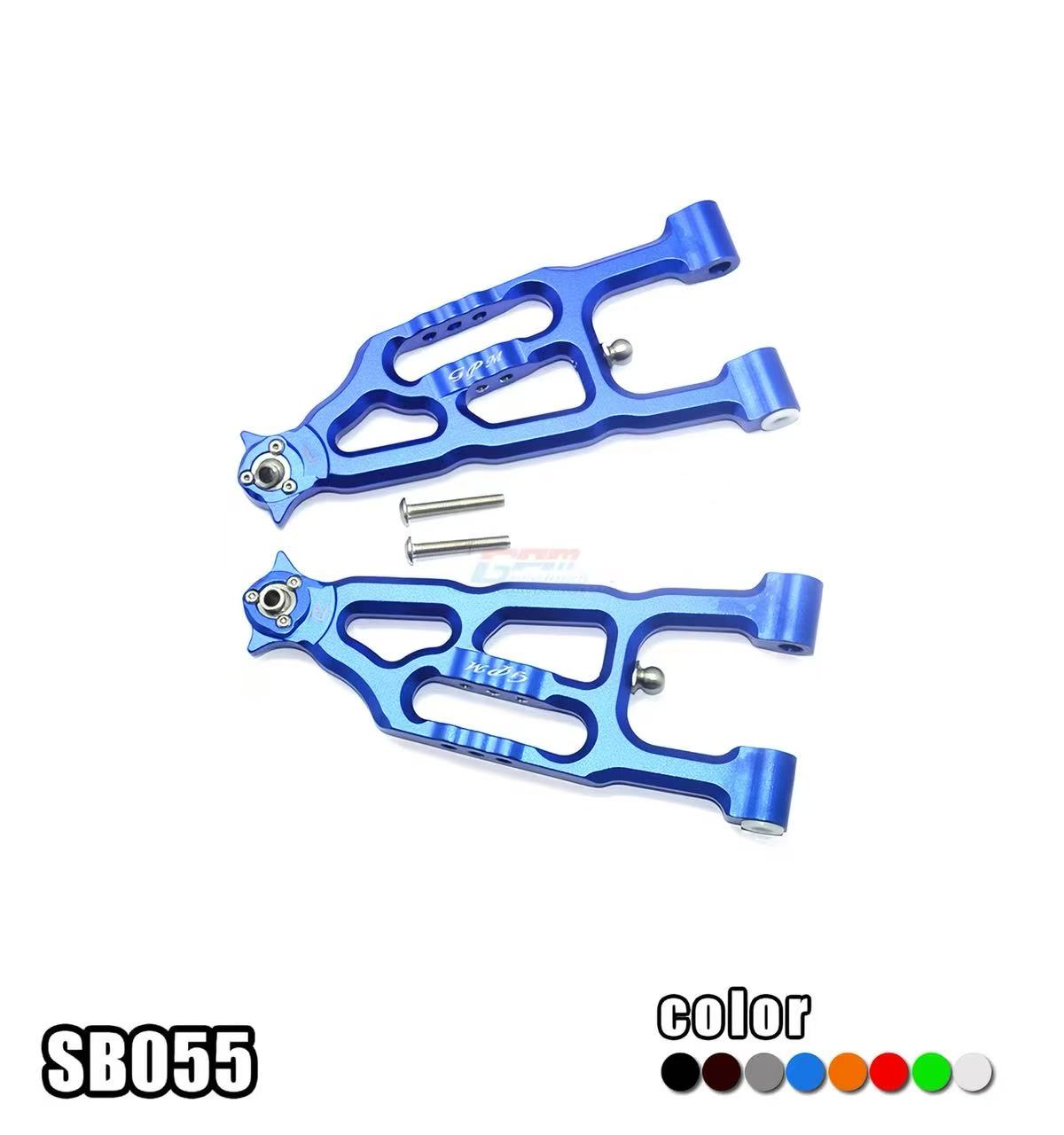

• Aluminum Front Lower Suspension Arms / SB055

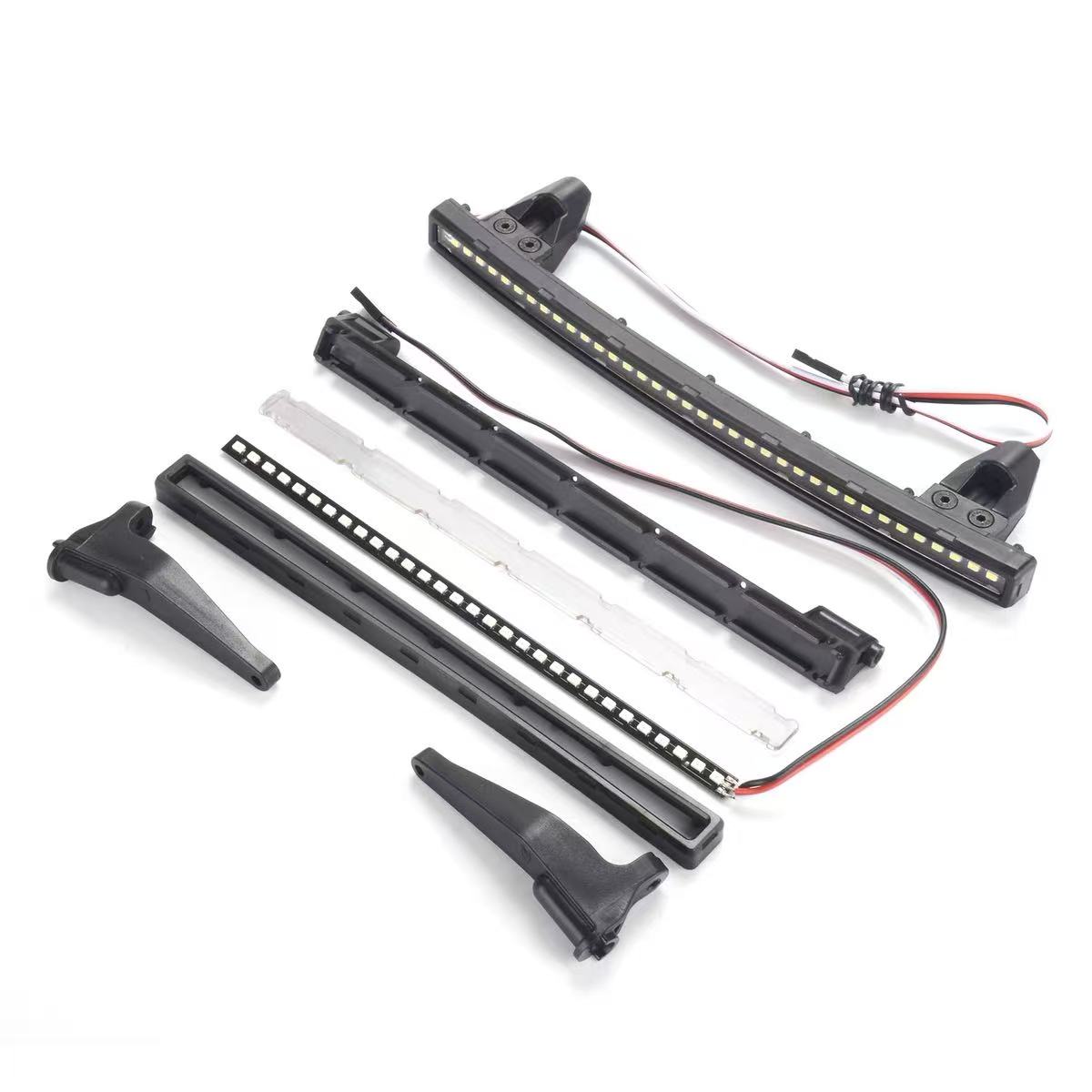

• Front and Rear Roof LED Light Set

Who Is the KM Challenger For?

The KM Challenger is built for experienced RC hobbyists who want a large-scale desert truck with real mechanical substance. If you are drawn to trophy truck and desert race aesthetics, appreciate solid rear axle chassis design, and want a platform with a dedicated aftermarket parts ecosystem, this is the truck. It is equally at home as a serious basher, a scale display piece, or a custom build platform.

Note: Battery and charger are not included. ARTR version does not include motor, ESC, or transmitter. Please select your version before purchasing.
